Grasso RC 611
Grasso RC 611
| 18993 | |
| Brand | Grasso |
| Type | RC 611 |
| Refrigerant | NH 3 (ammonia) |
| Refrigerant type | R717 |
| kW at +10ºC/+40ºC | 990,0* |
| kW at 0ºC/+40ºC | 662,8* |
| kW at -5ºC/+40ºC | 532,1* |
| kW at -10ºC/+40ºC | 418,5* |
| Electromotor Specs | 50 Hz - 160 kW - 1465 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Sight Glass |
|
| m3 / h | 798,0 |
| Remarks | | *Capacity based on NH3 - 1000 RPM. |
| Amount in stock | 1 |
Grasso RC 611

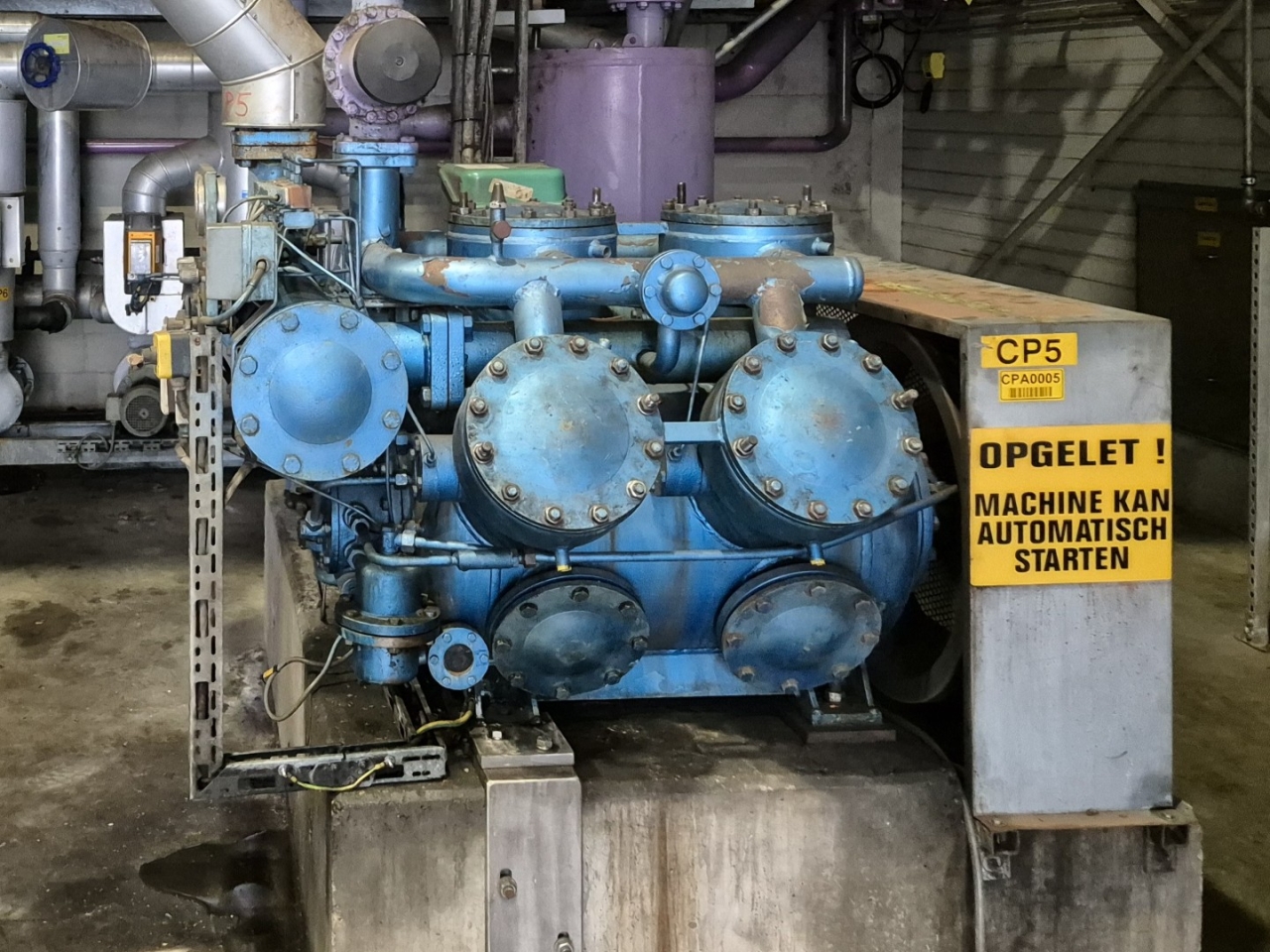

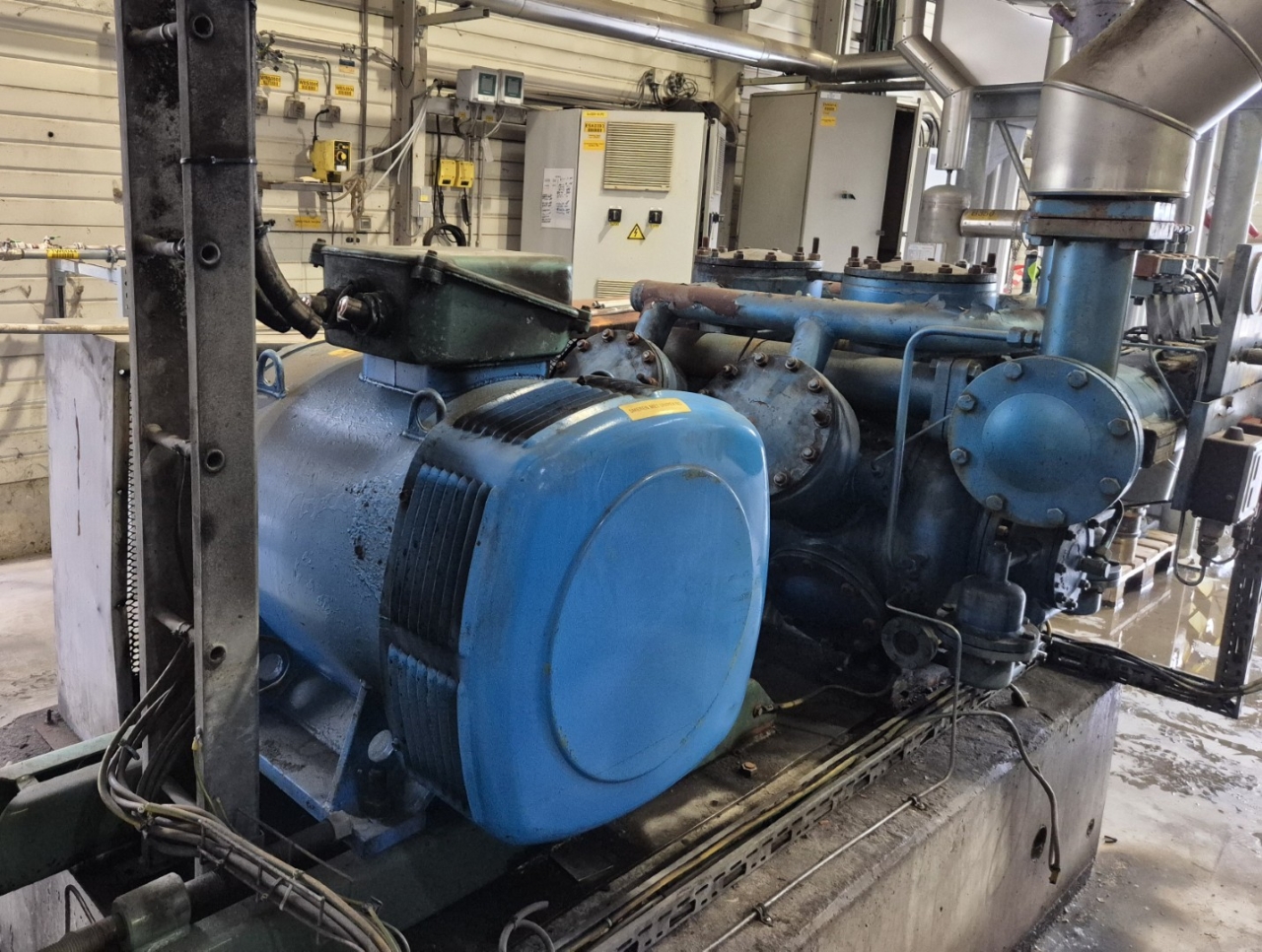

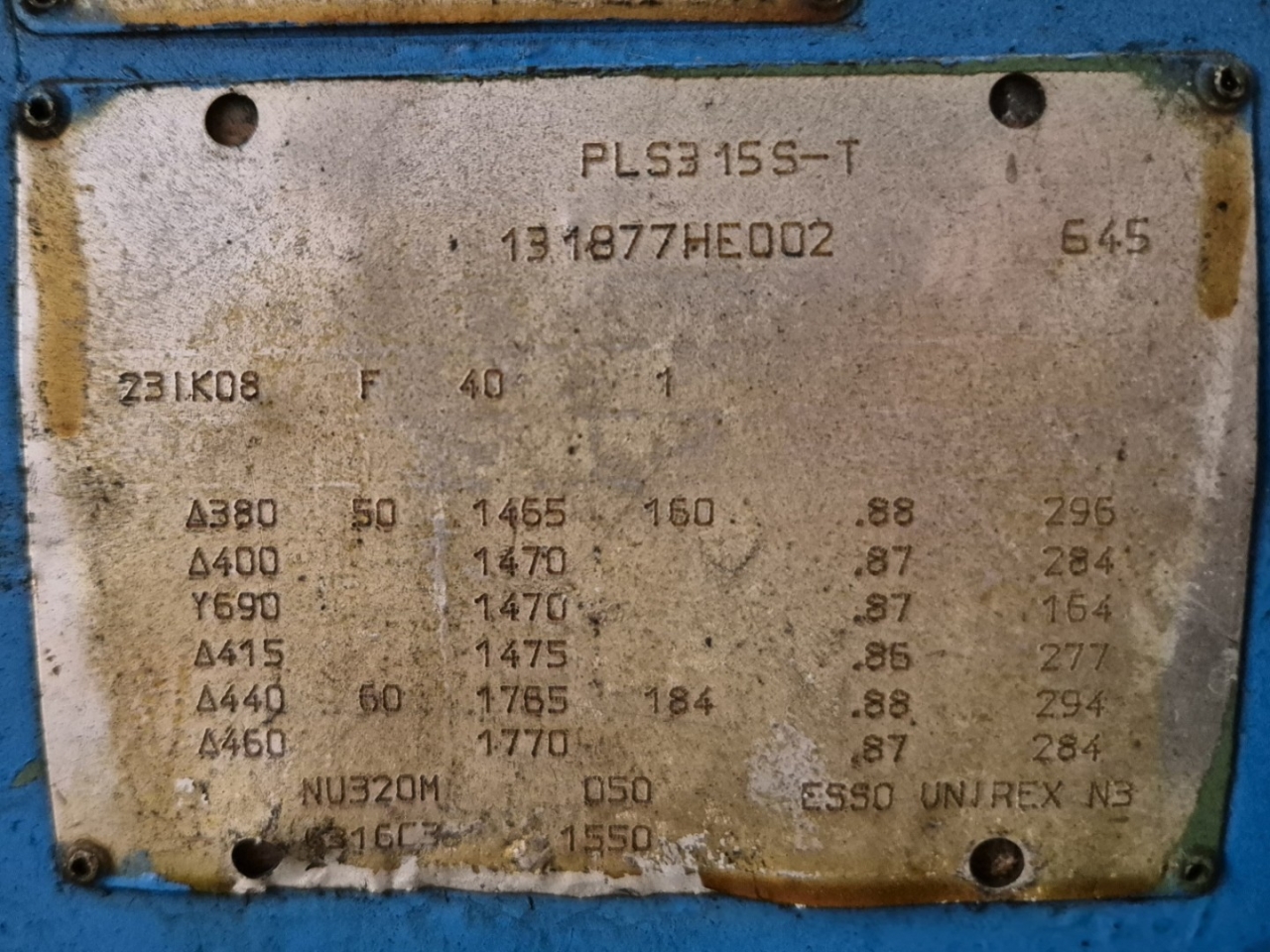

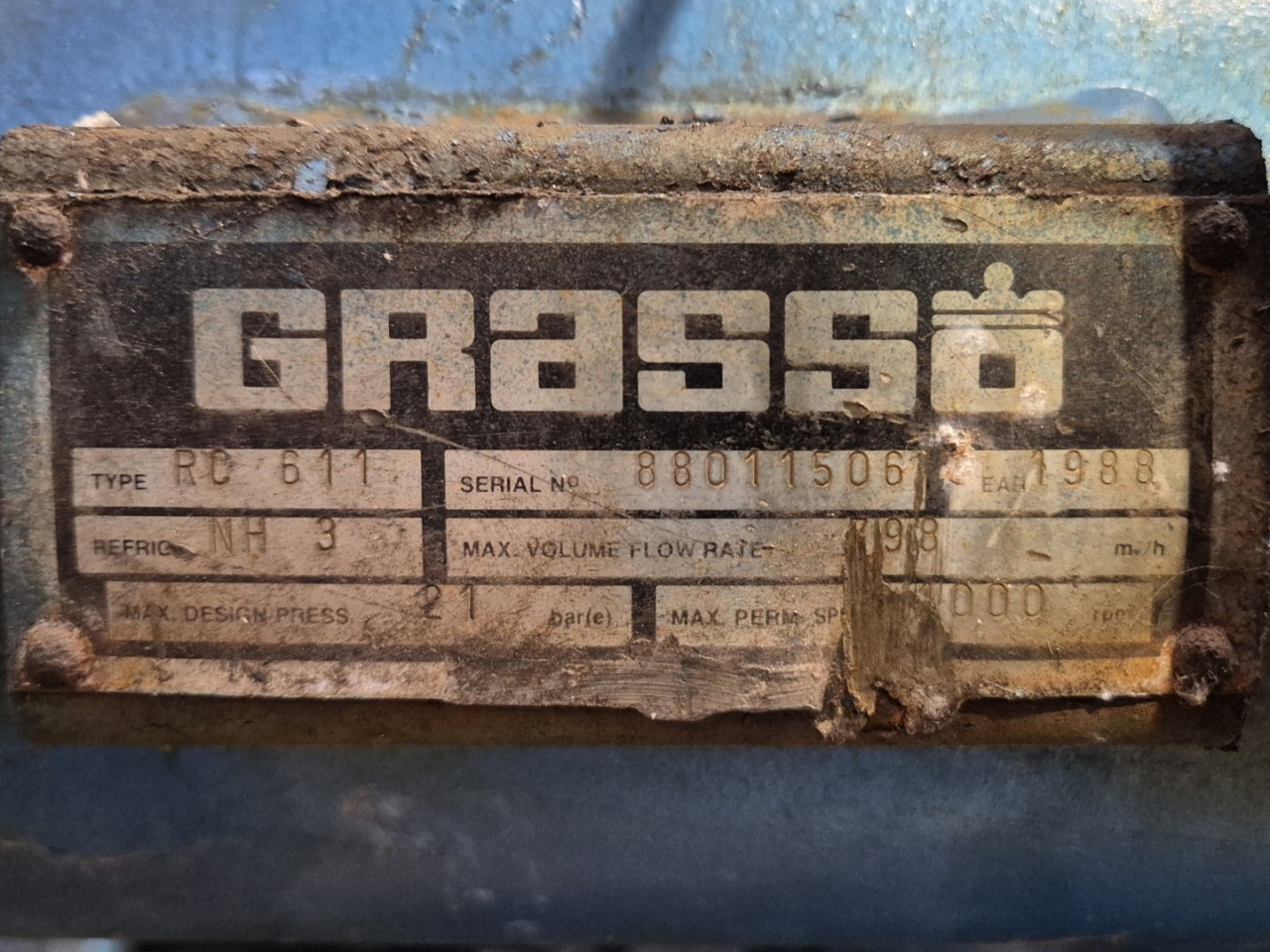

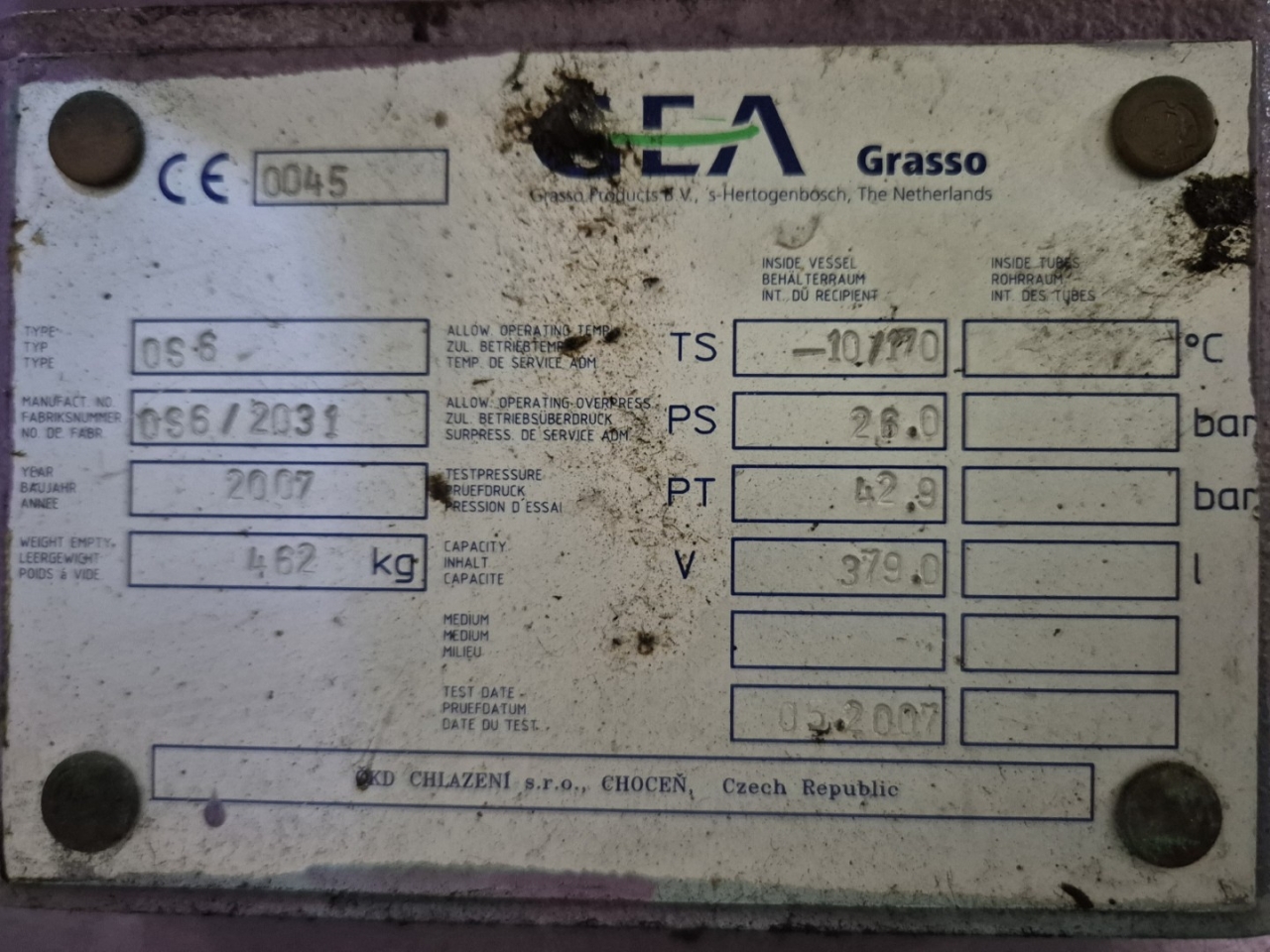

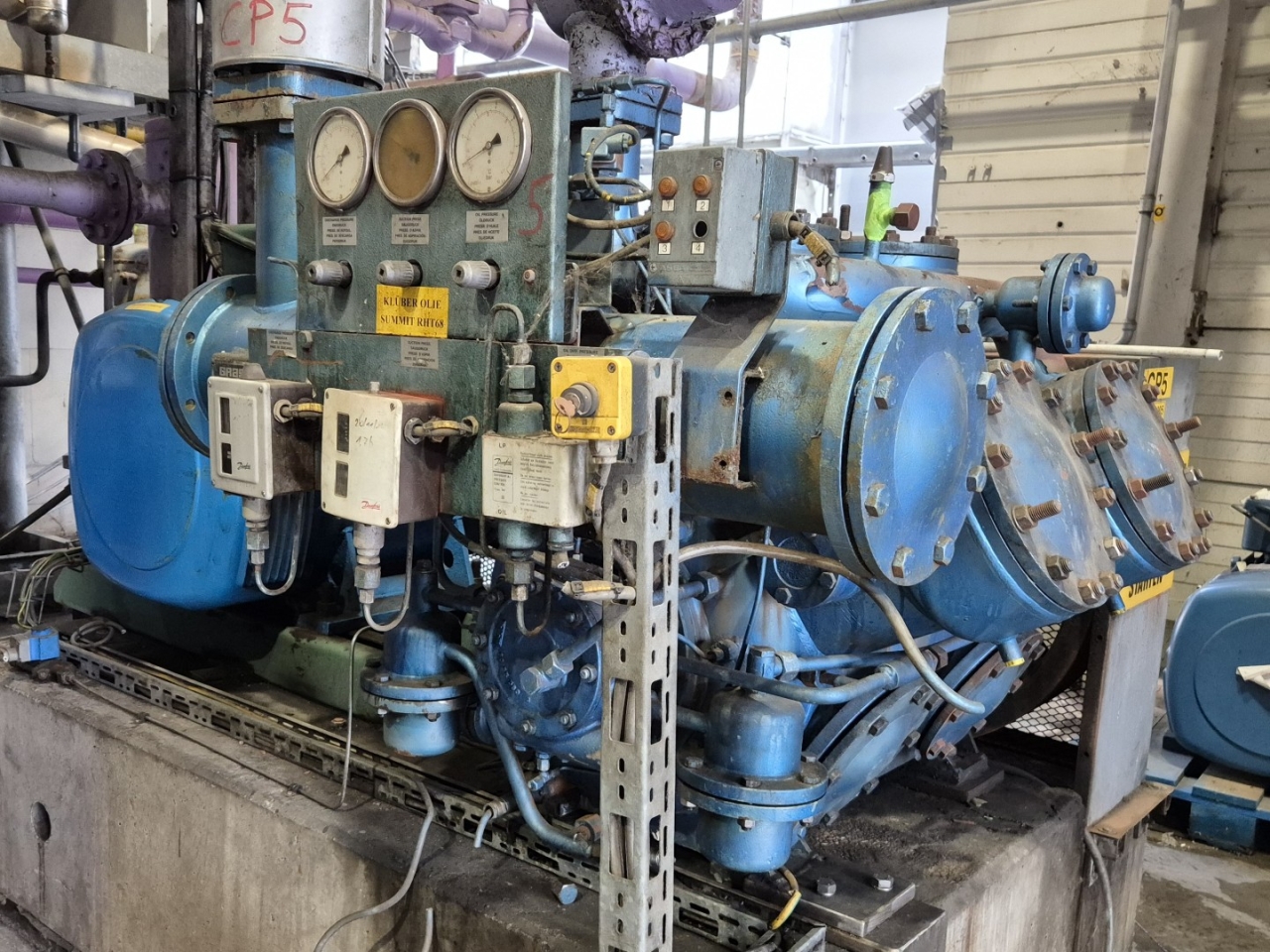

Used Grasso RC 611 reciprocating compressor on NH3 (R717). Complete with a Leroy Somer PLS315S-T electric motor - 50 Hz - 160 kW - 1465 RPM, GEA OS6 oil separator, pressure and safety switches/gauges. The compressor has a displacement of 798 m³/h.
