Bitzer 6F-40.2Y-40P (x3) & 4J-13.2Y-40P (x1)
Bitzer 6F-40.2Y-40P (x3) & 4J-13.2Y-40P (x1)
| 18834 | |
| Brand | Bitzer |
| Type | 6F-40.2Y-40P (x3) & 4J-13.2Y-40P (x1) |
| Refrigerant | Freon |
| Refrigerant type | R404A |
| kW at -5ºC/+40ºC | 345,5 |
| kW at -10ºC/+40ºC | 284,5 |
| kW at -20ºC/+40ºC | 185,9 |
| kW at -30ºC/+40ºC | 113,0 |
| kW at -40ºC/+40ºC | 60,3 |
| On steel base frame |
|

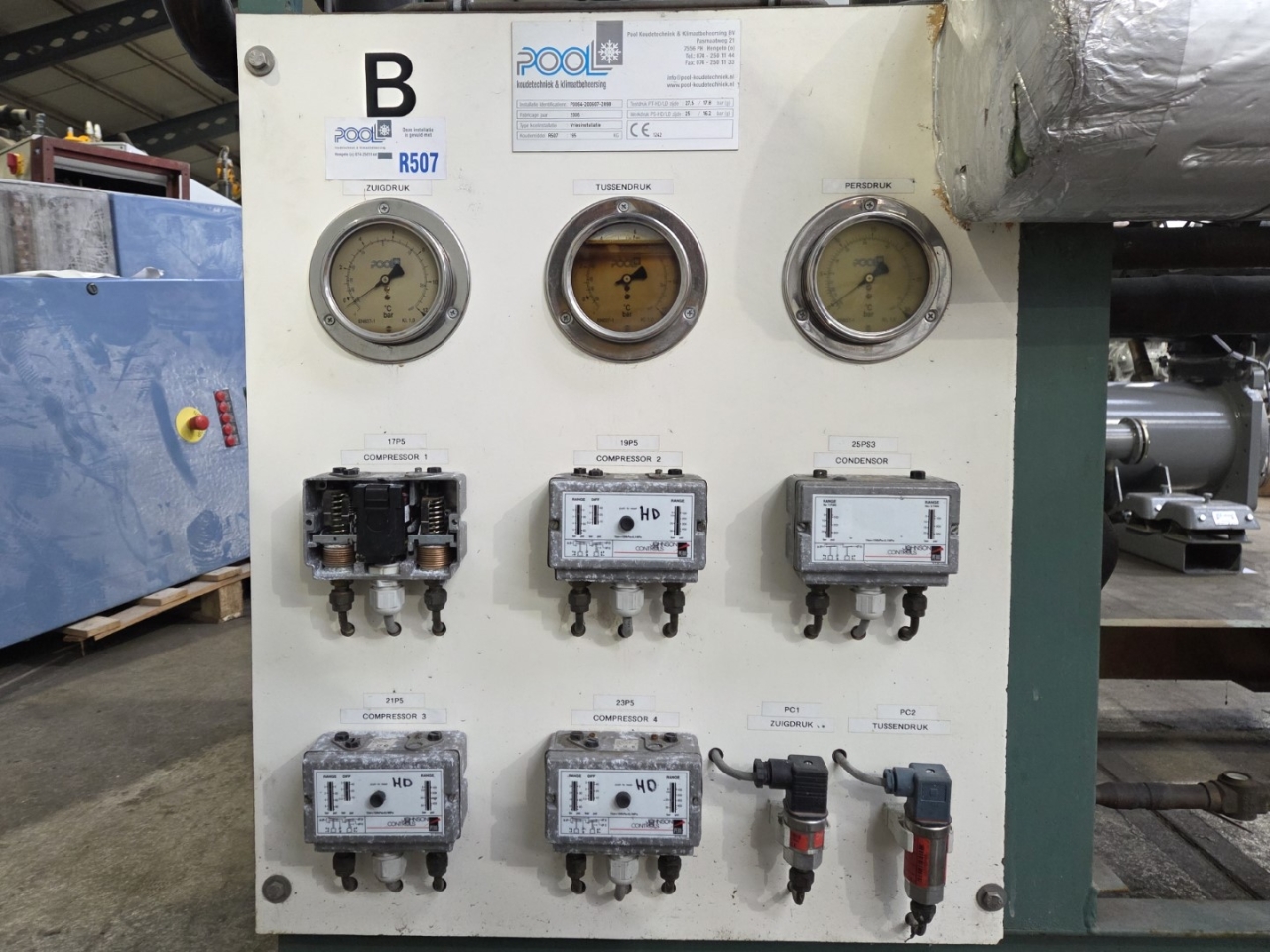

| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Liquid receiver |
|
| Liquid receiver ltr. | 228 |
| Oil separator |
|
| Oil level system AC&R |
|
| Liquid line filter drier |
|
| Sight Glass |
|
| Solenoid Valve |
|
| m3 / h | 518,3 |
| Remarks | | Y.o.b. 2006 |
| Package / Rack |
|
| Sizes | 3500x1200x2200 mm (LxWxH) |
| Amount in stock | 1 |
Bitzer 6F-40.2Y-40P (x3) & 4J-13.2Y-40P (x1)

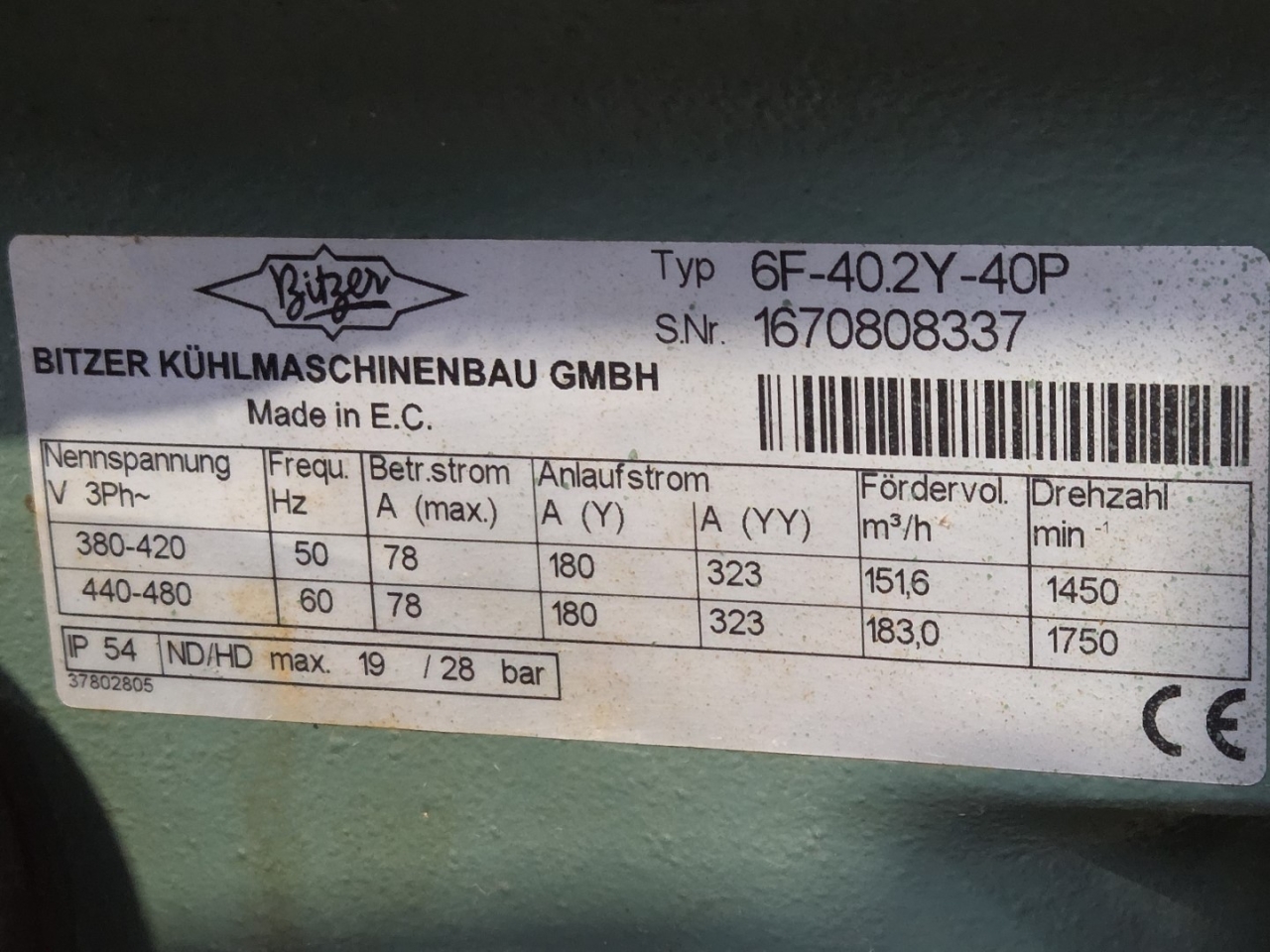

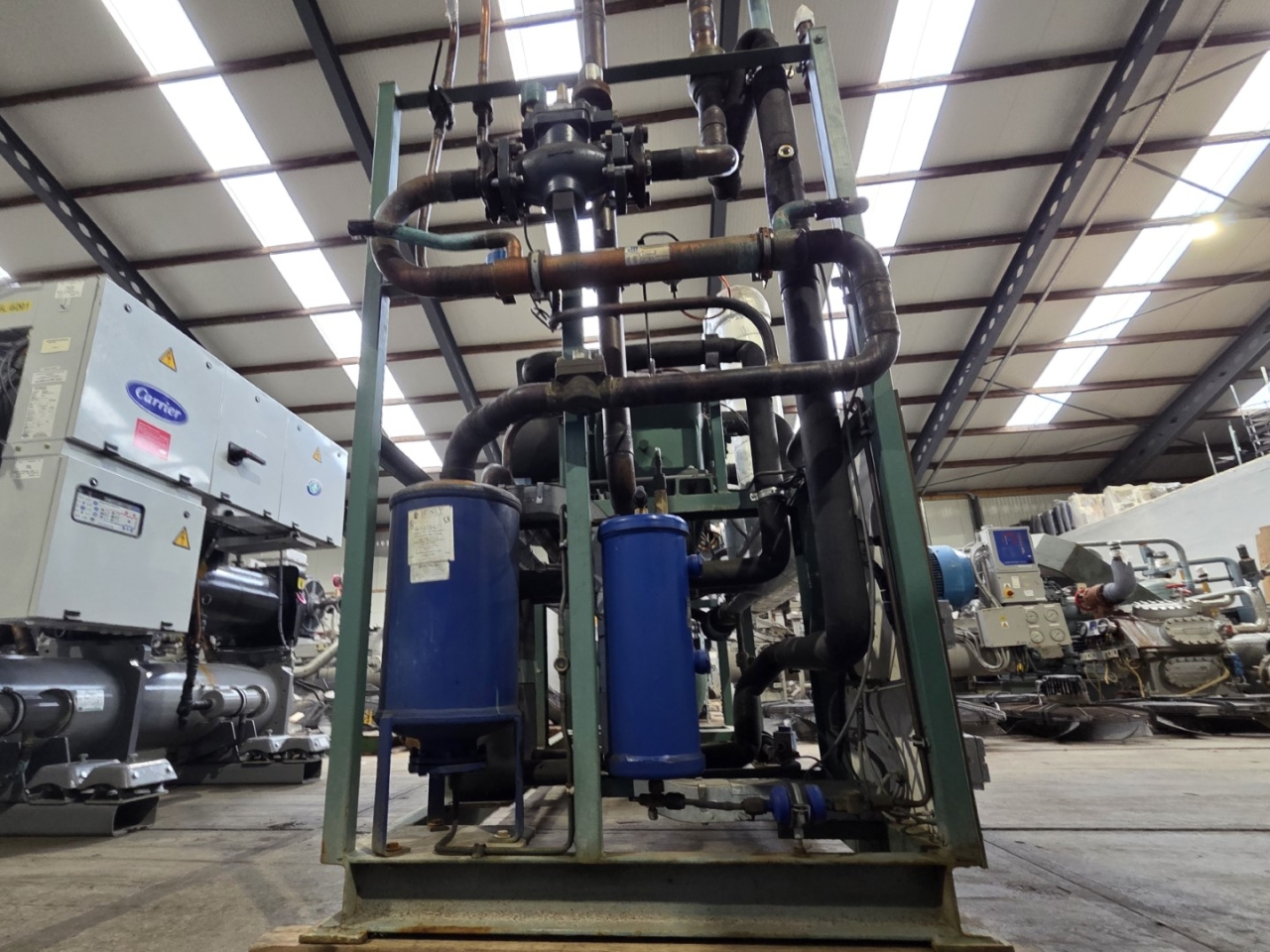

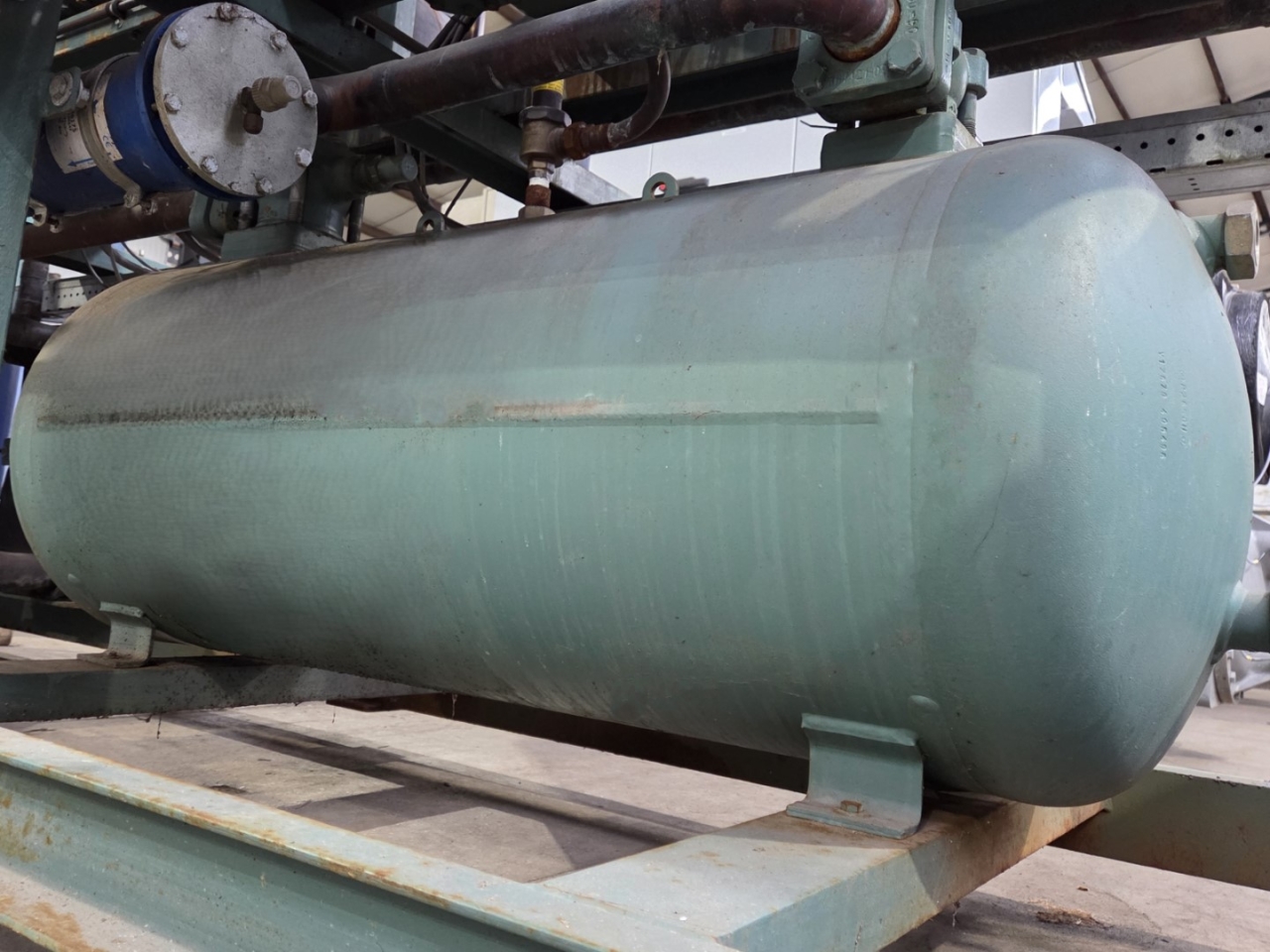

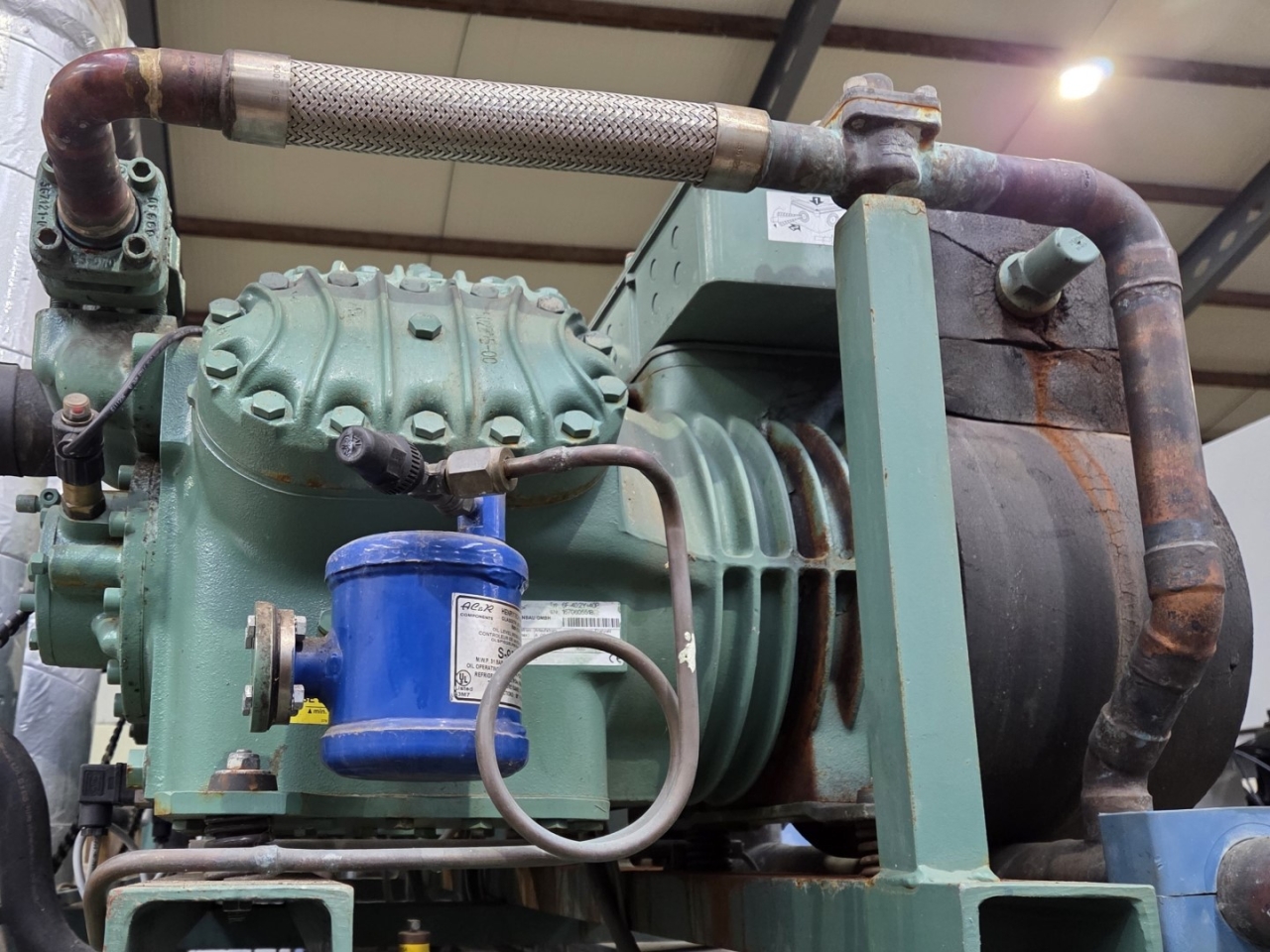

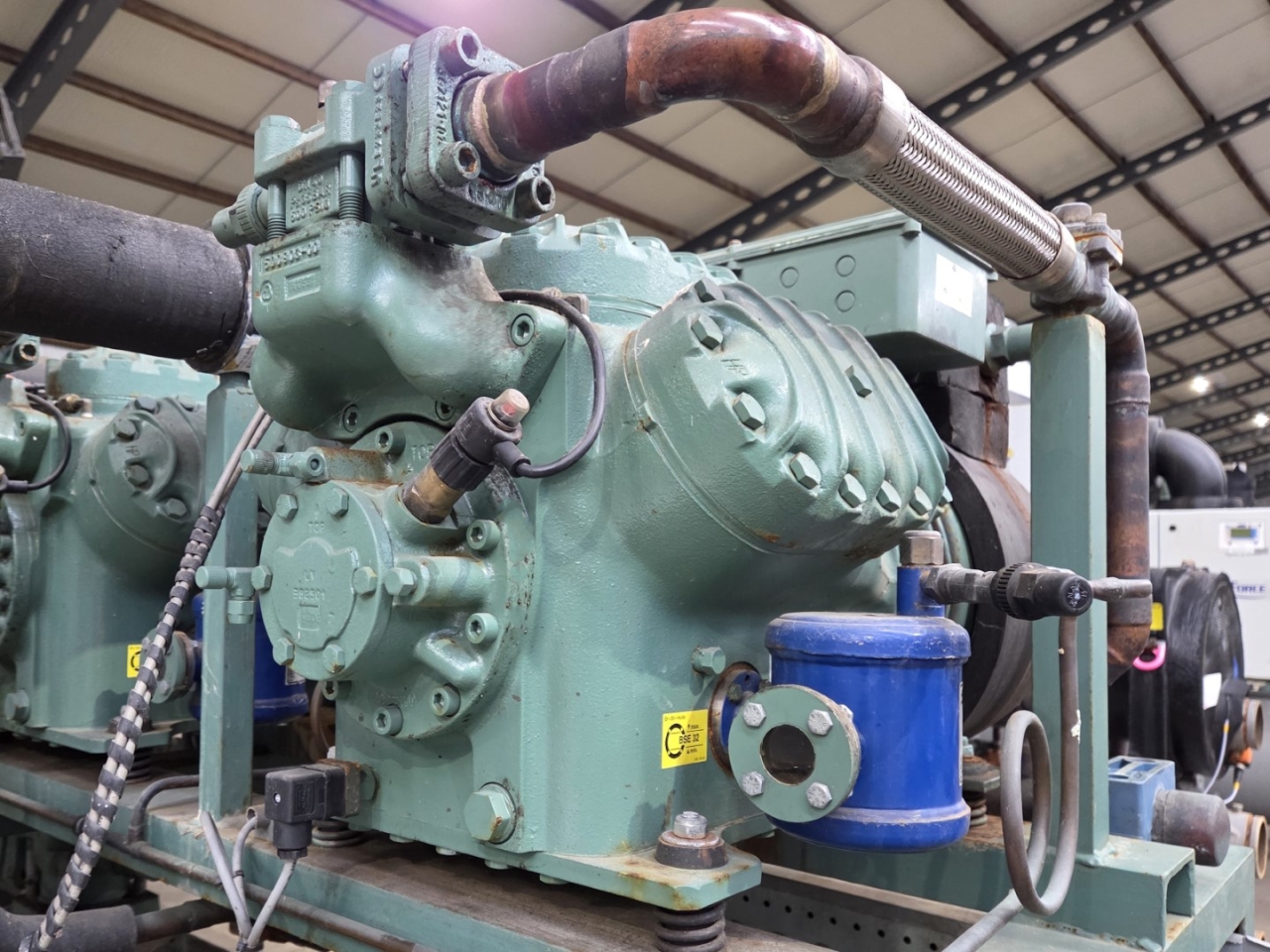

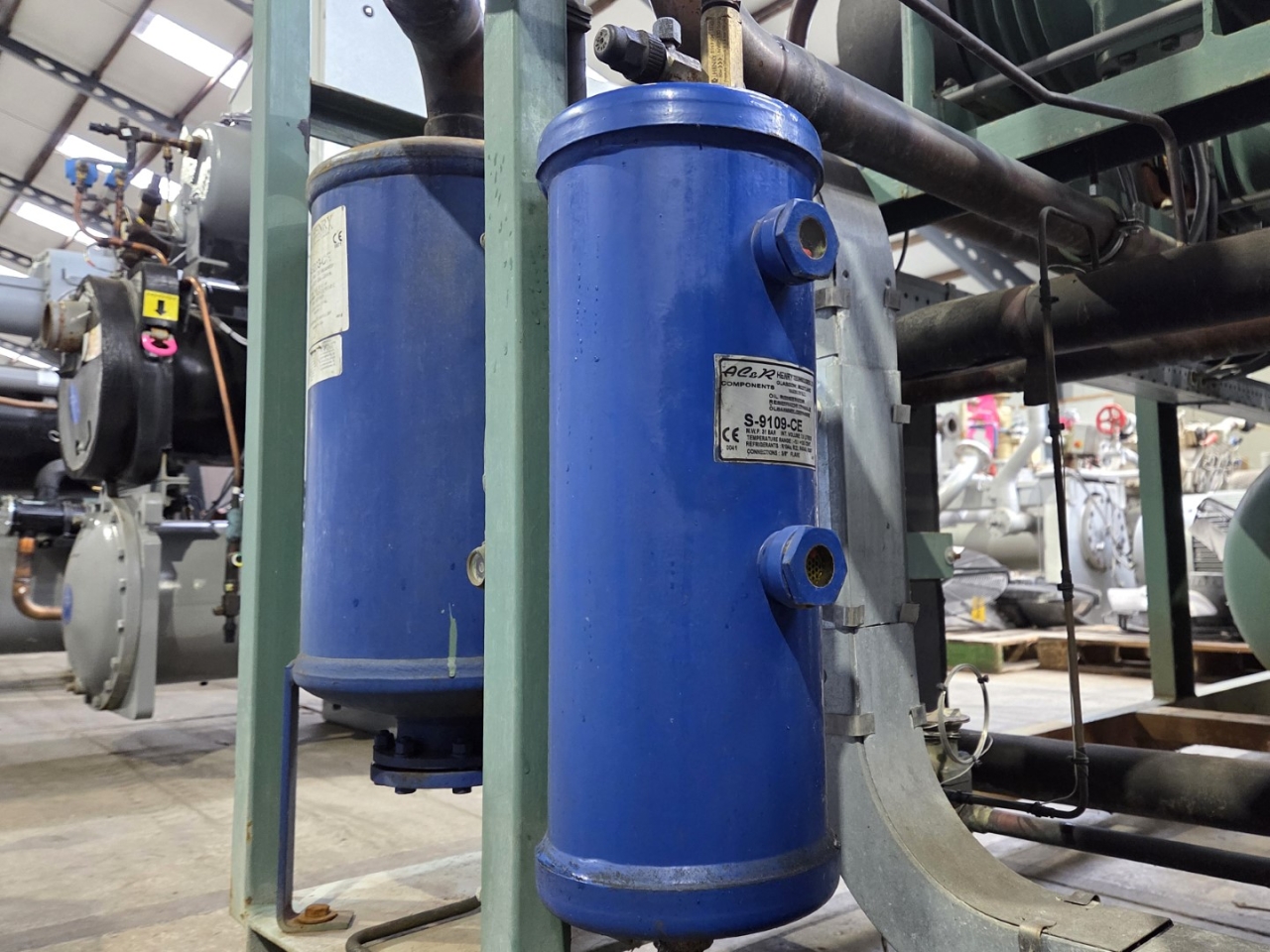

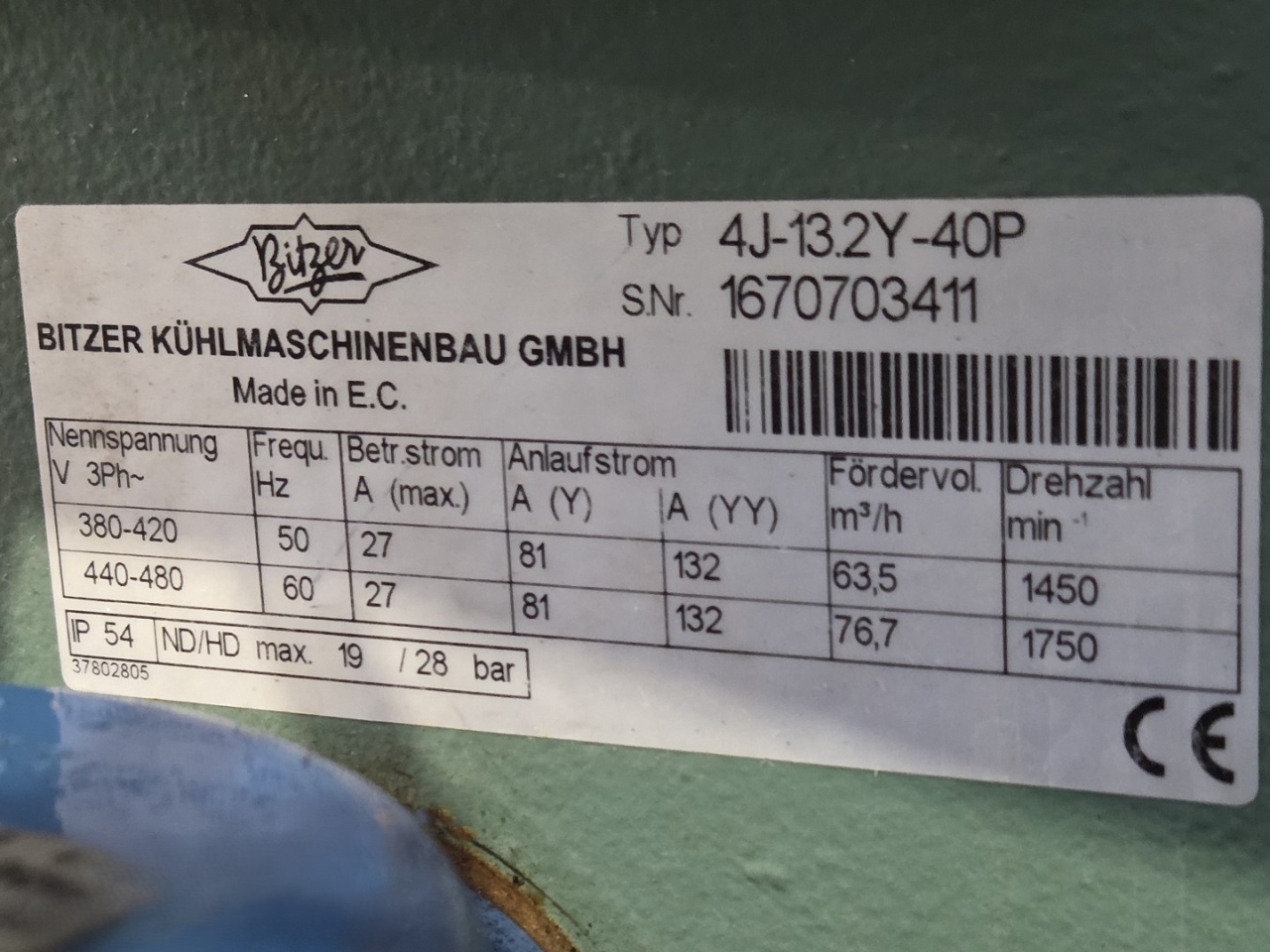

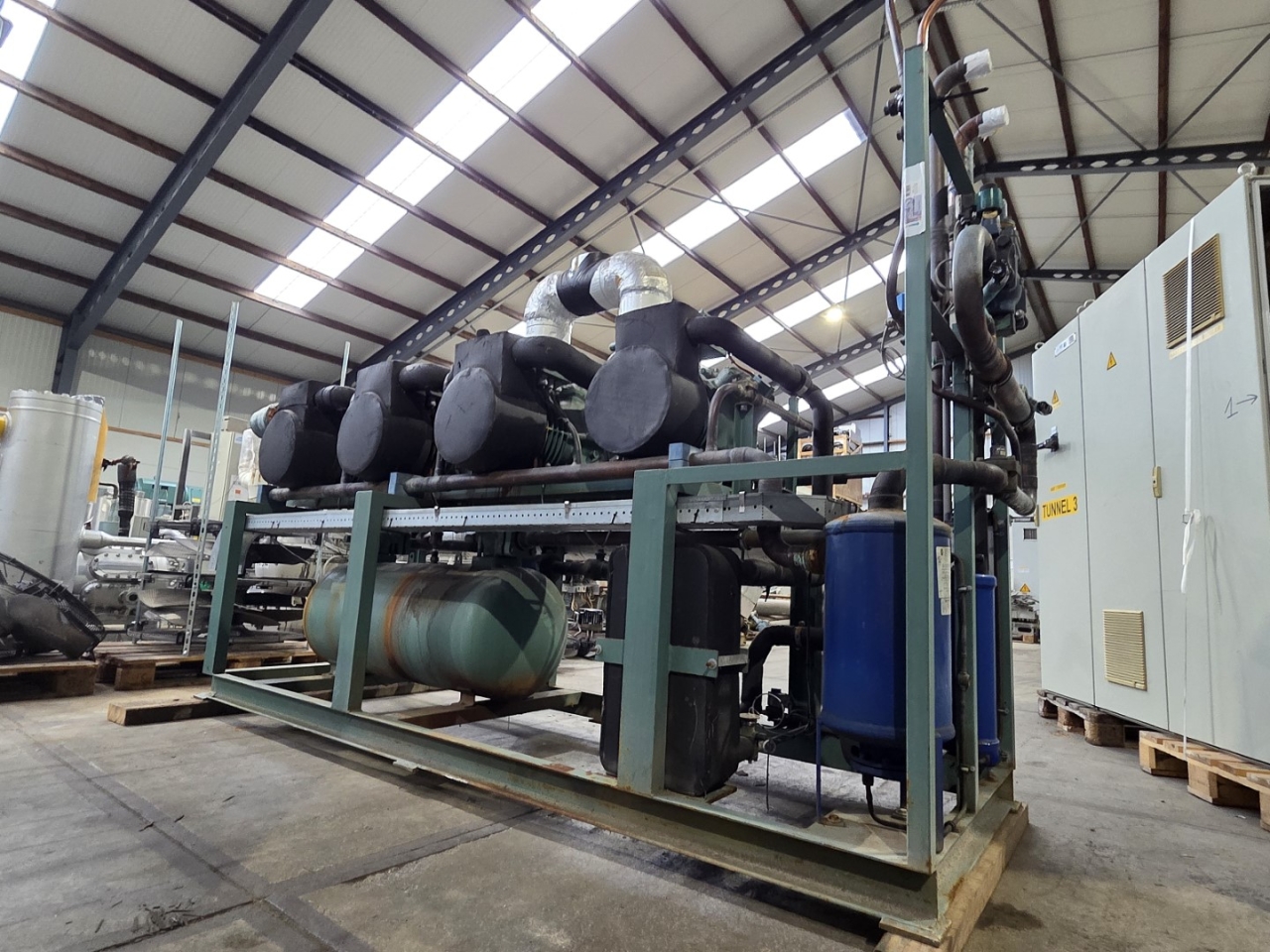

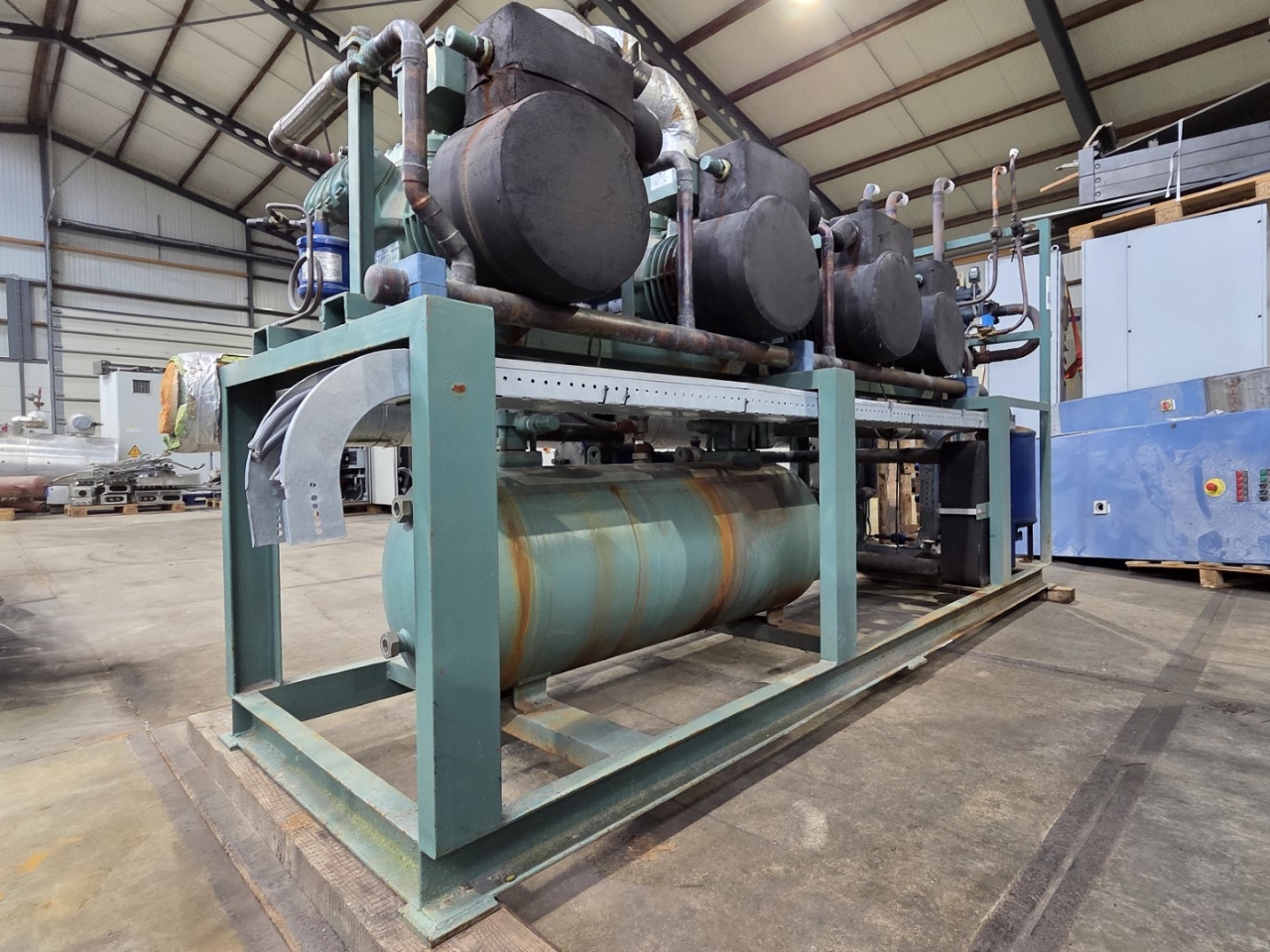

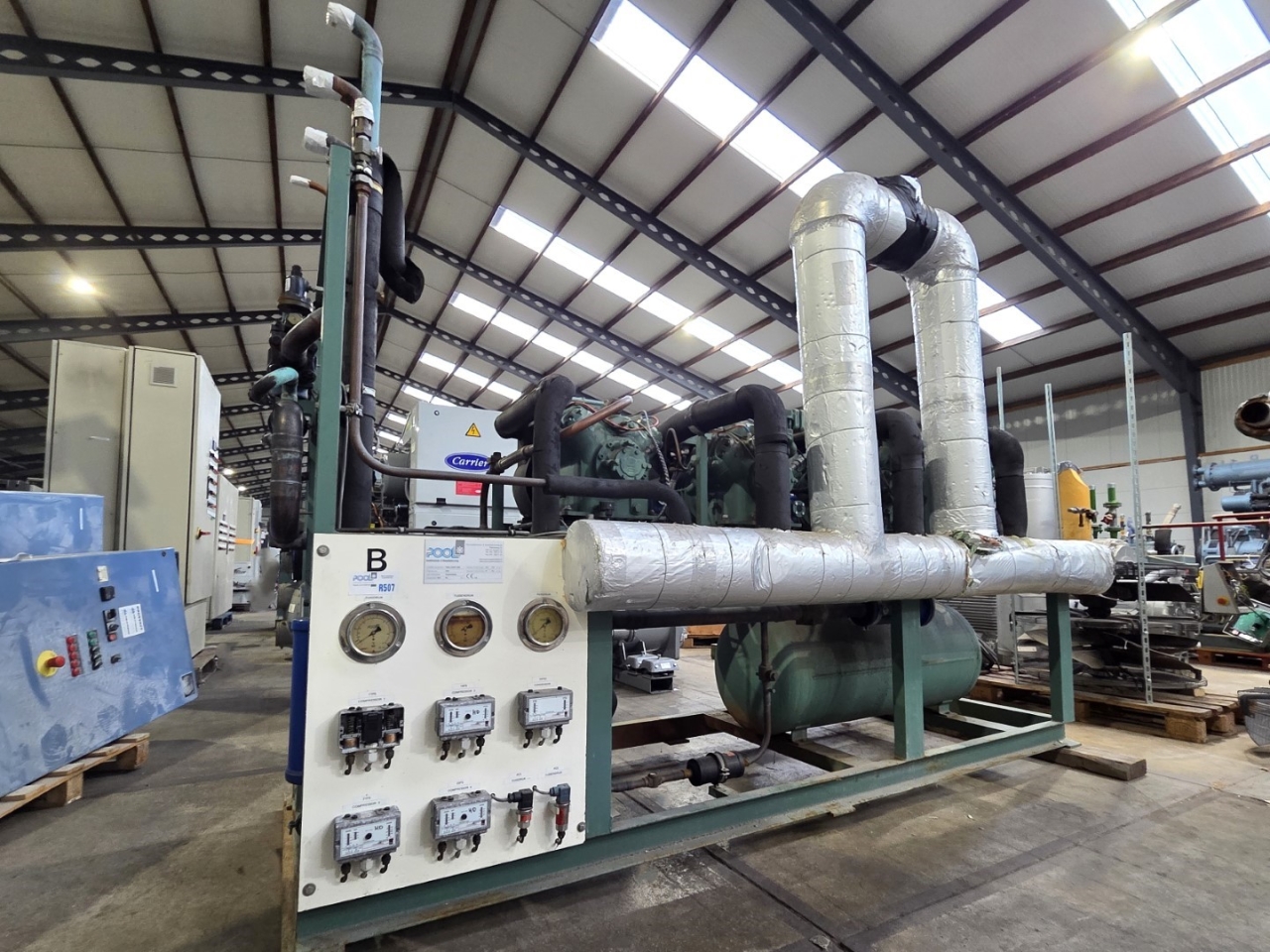

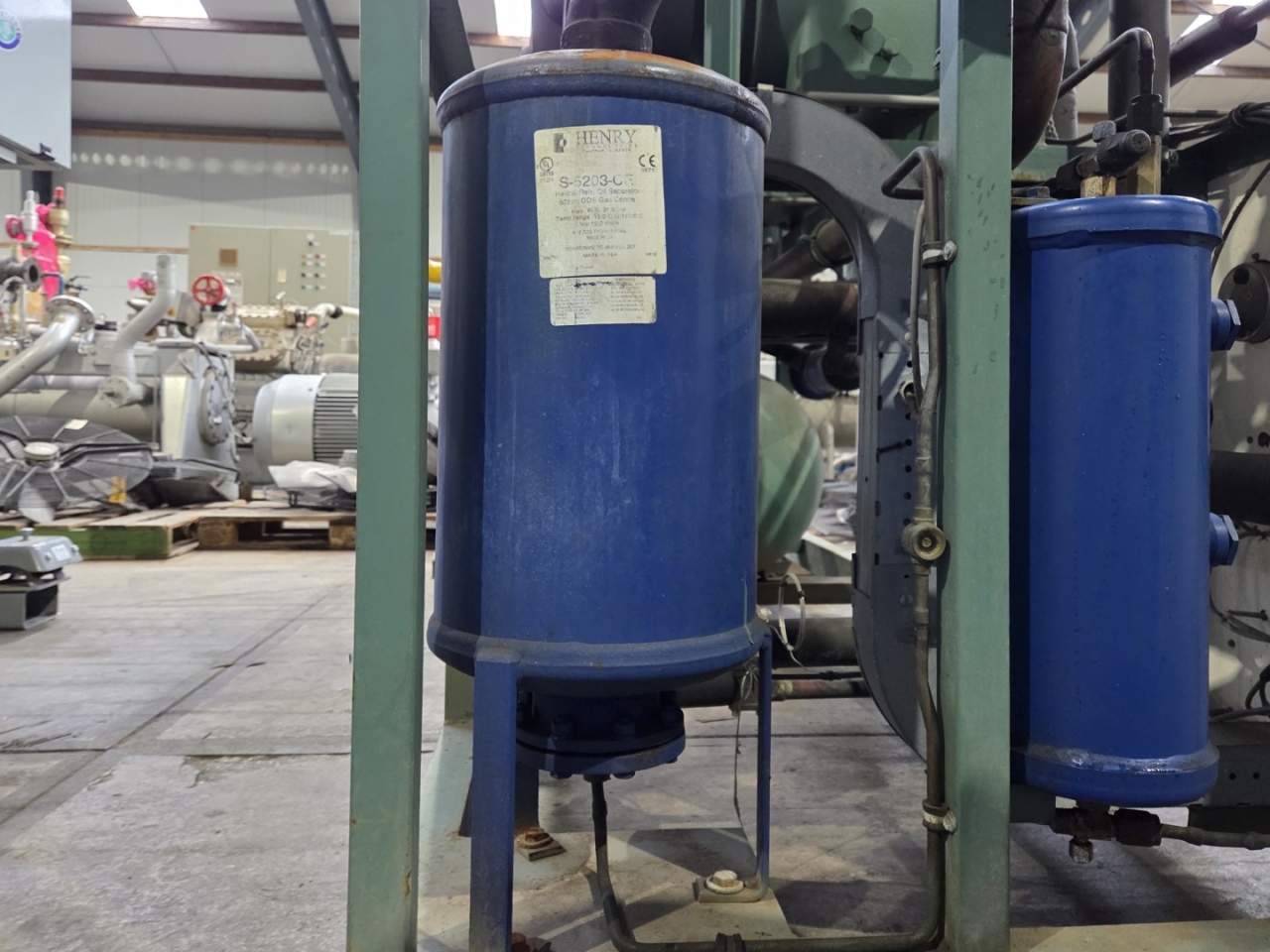

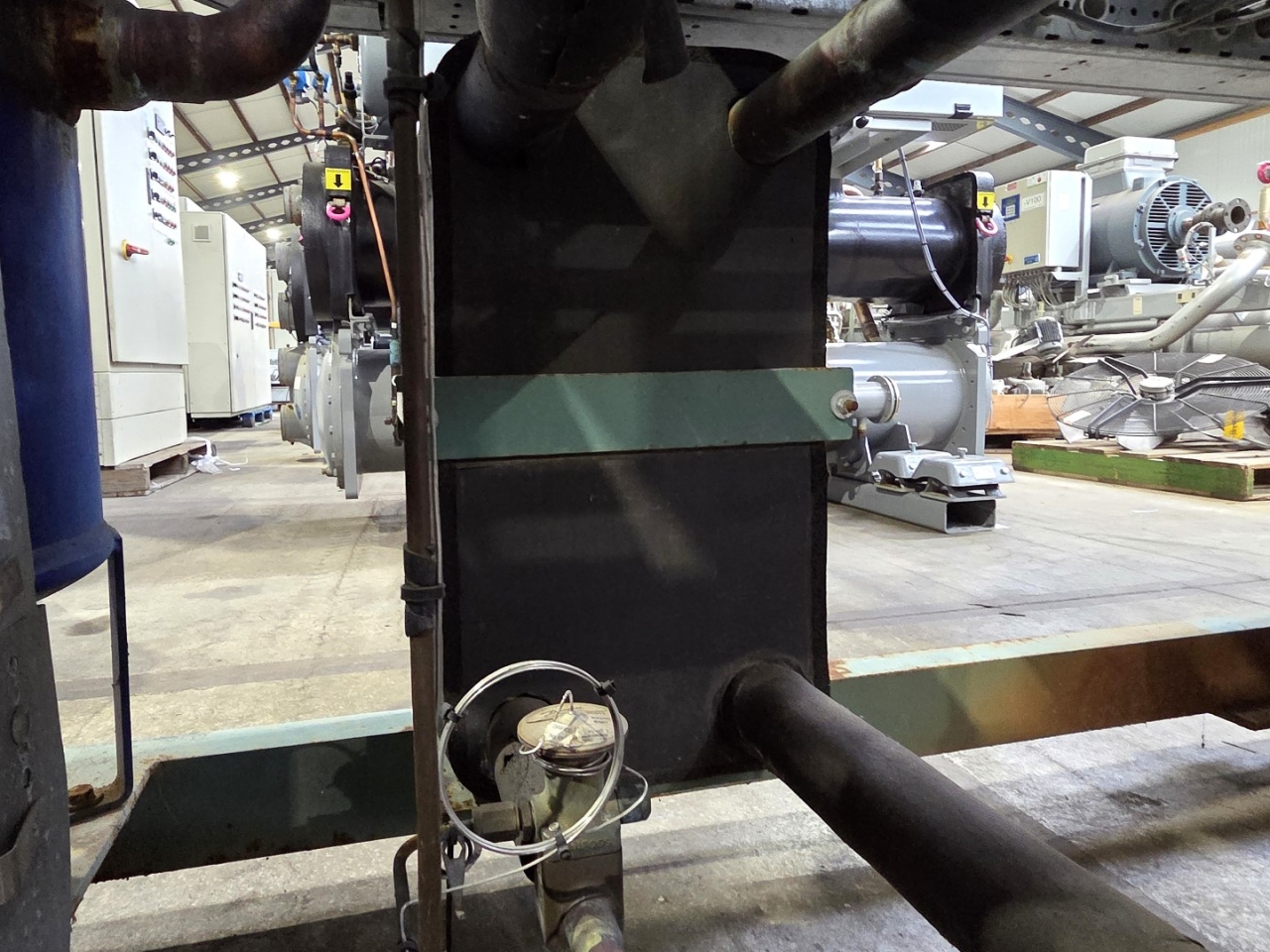

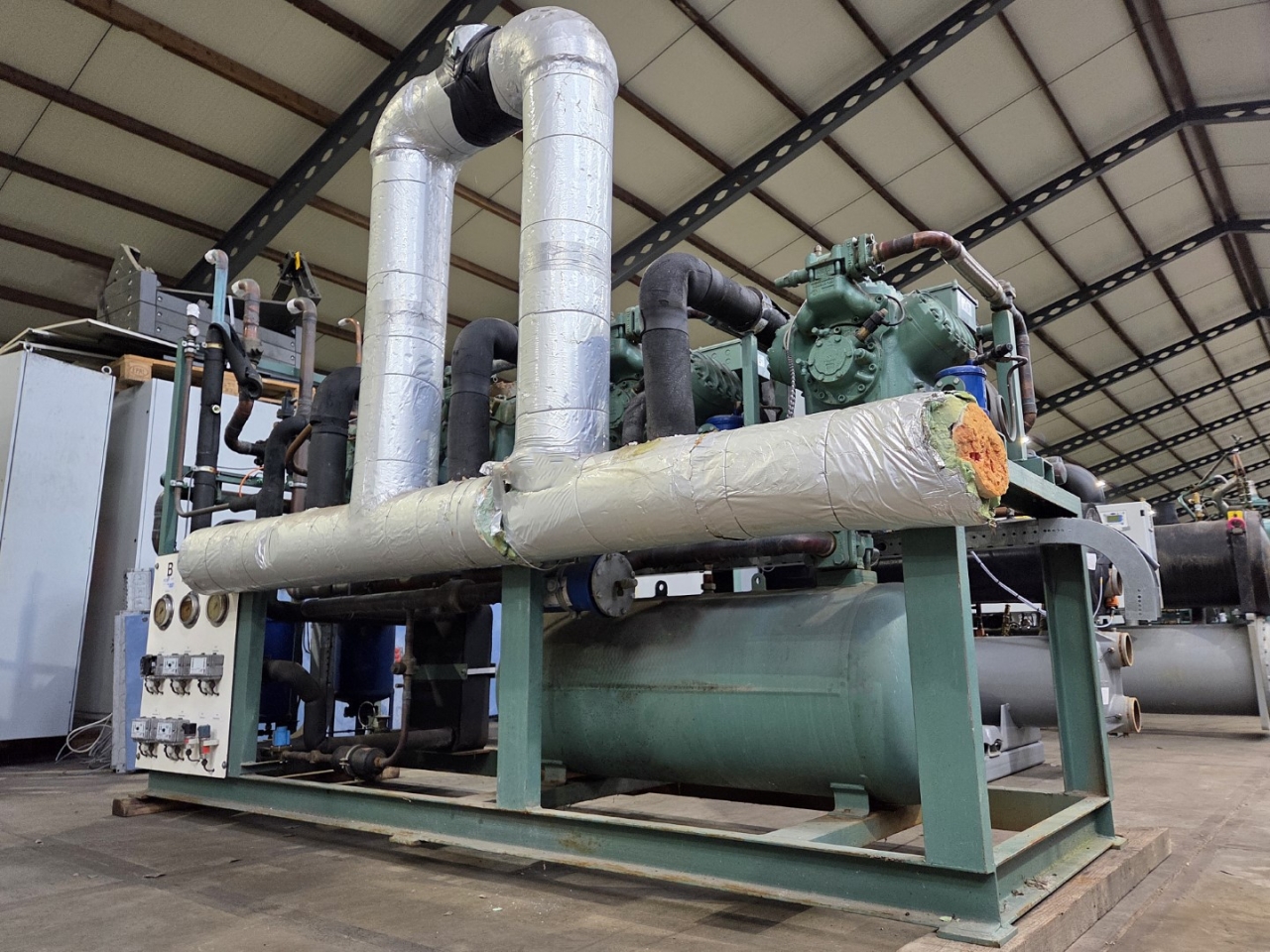

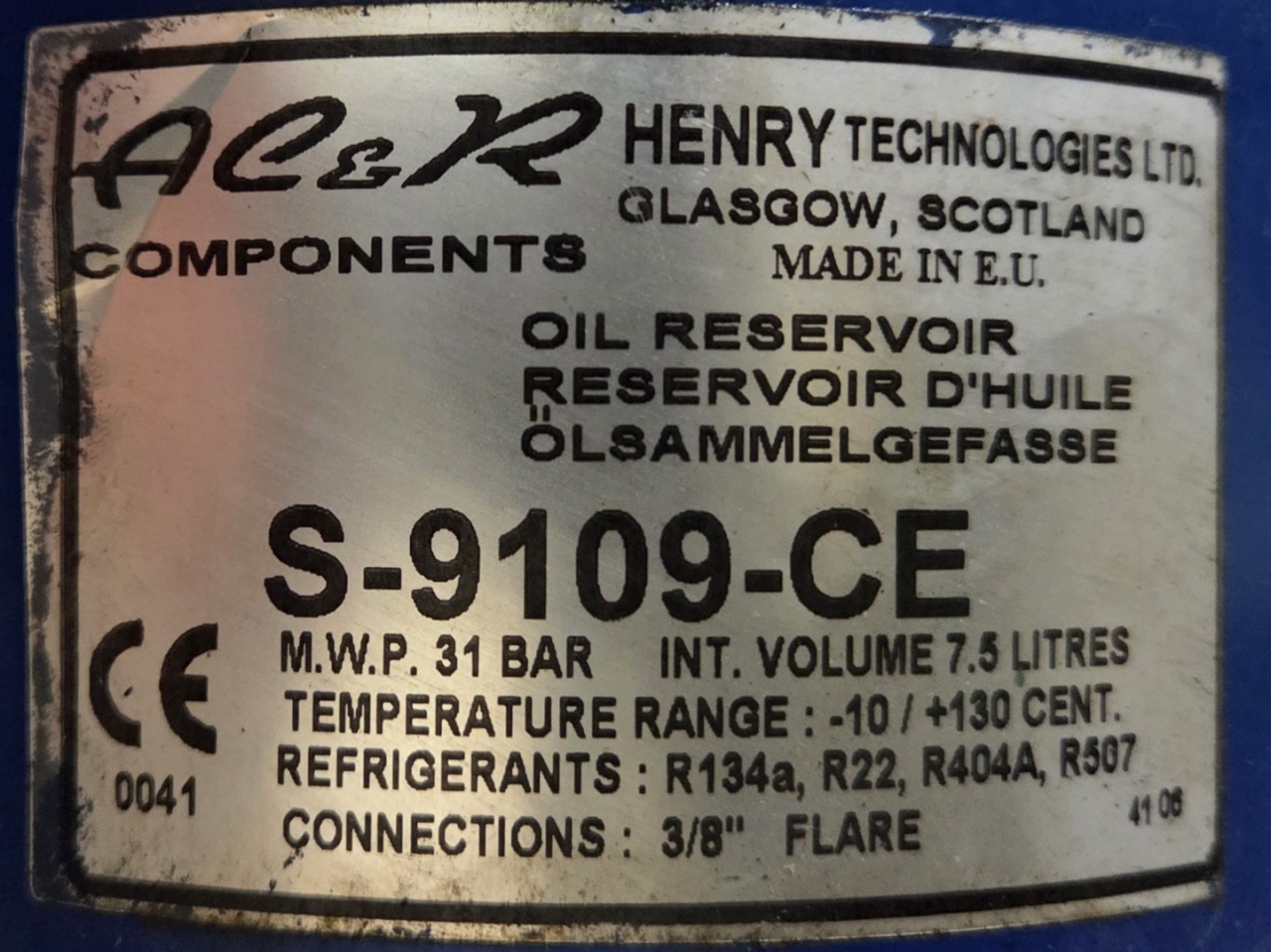

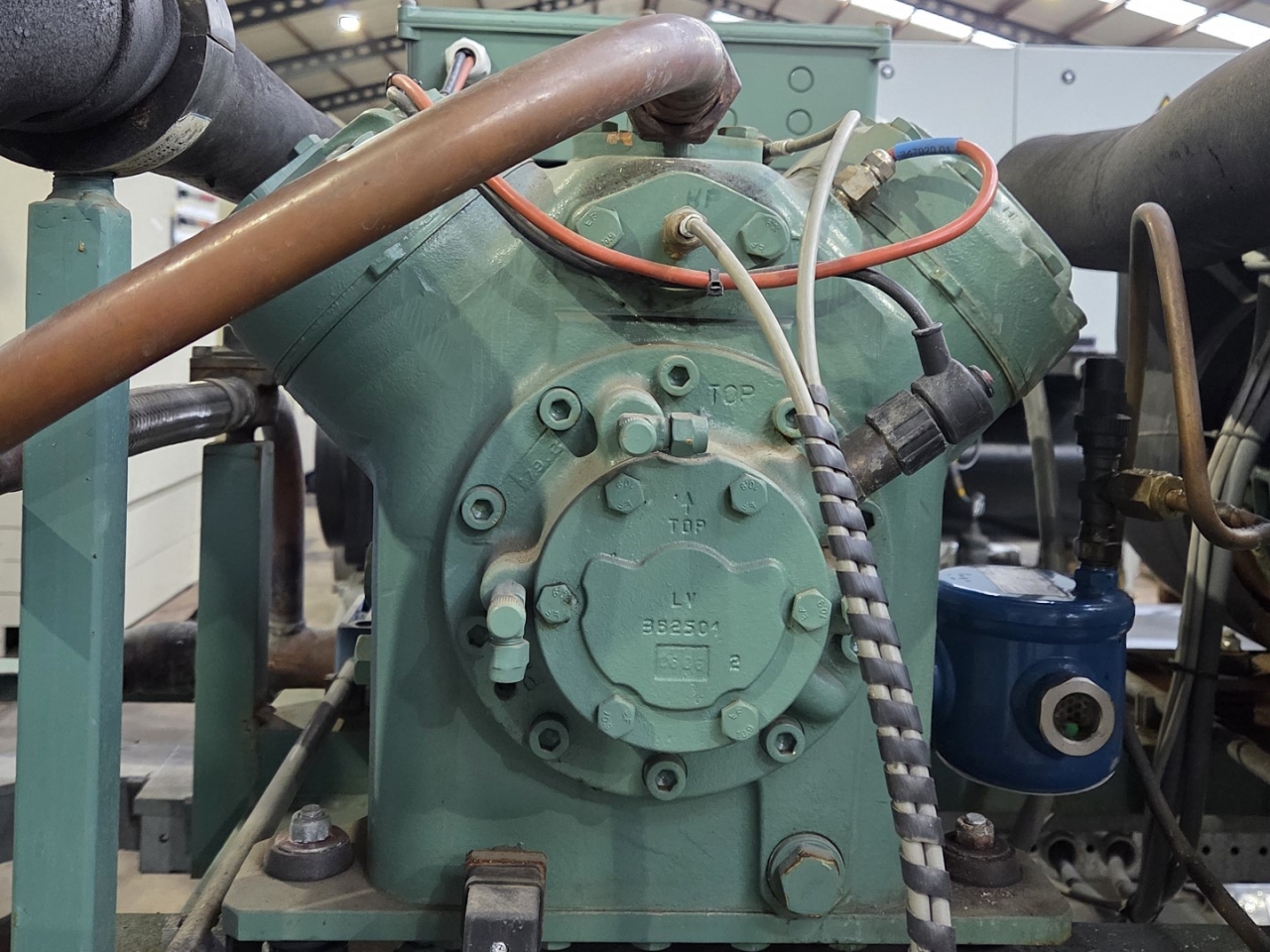

Used Bitzer 6F-40.2Y-40P (x3) & 4J-13.2Y-40P (x1) semi-hermetic reciprocating compressors rack on Freon. Complete with a Bitzer F2202N liquid receiver with a volume of 228 liters, Henry Technologies S-5203-CE oil separator, Henry Technologies S-9109-CE oil reservoir, brazed heat exchanger, pressure and safety switches/gauges and a liquid line filter drier. The compressors have a displacement of 518,3 m³/h at 50 Hz.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
