Grasso RC 611
Grasso RC 611
| 18993 | |
| Marka | Grasso |
| Typ | RC 611 |
| Czynnik chłodzący | NH 3 (ammonia) |
| Refrigerant type | R717 |
| kW at +10ºC/+40ºC | 990,0* |
| kW at 0ºC/+40ºC | 662,8* |
| kW at -5ºC/+40ºC | 532,1* |
| kW at -10ºC/+40ºC | 418,5* |
| Silnik elektryczny Specs | 50 Hz - 160 kW - 1465 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|
| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Separator oleju |
|
| Okno widokowe |
|
| m3 / h | 798,0 |
| Uwagi | | *Capacity based on NH3 - 1000 RPM. |
| Liczba sztuk | 1 |
Grasso RC 611

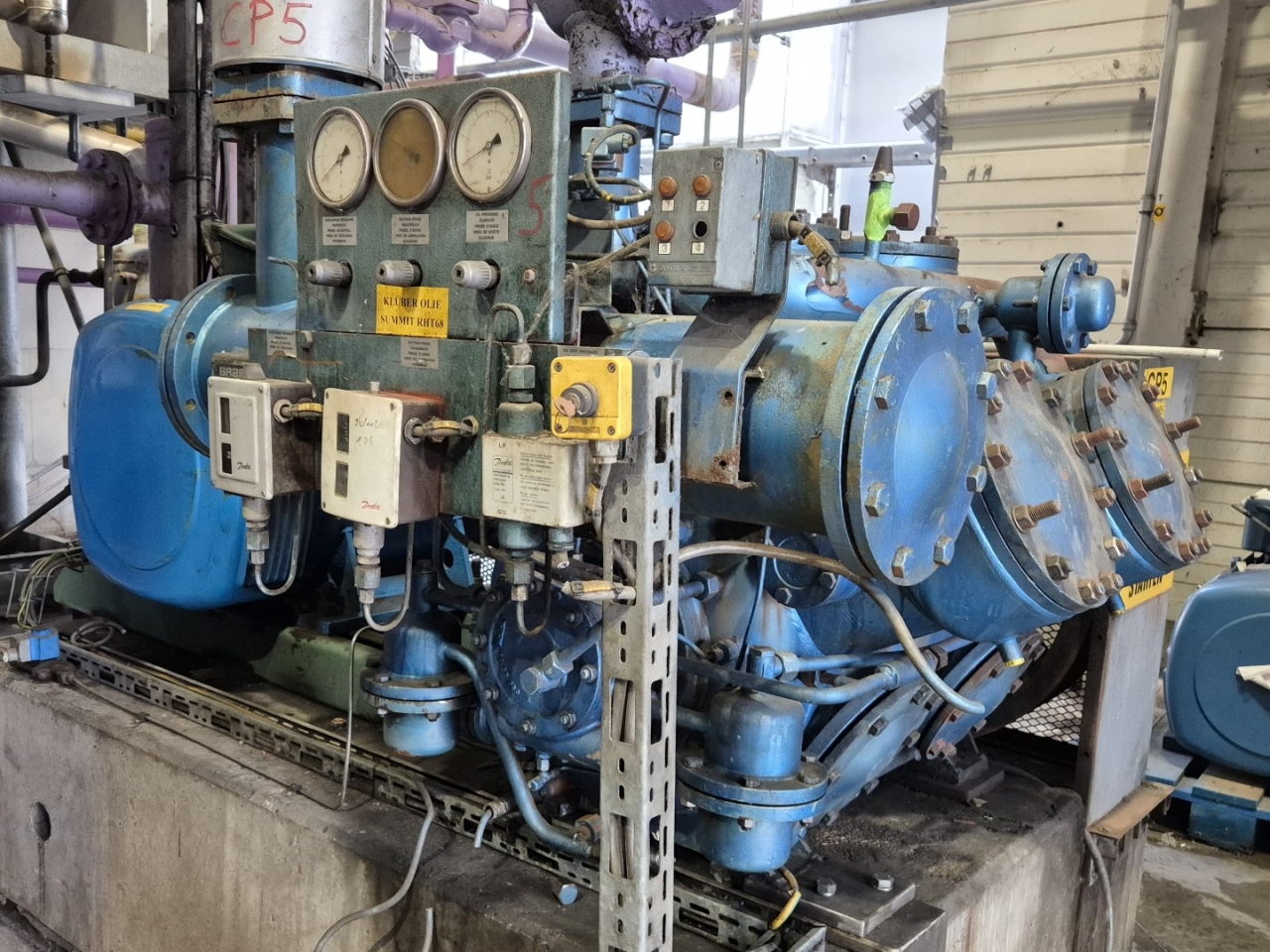

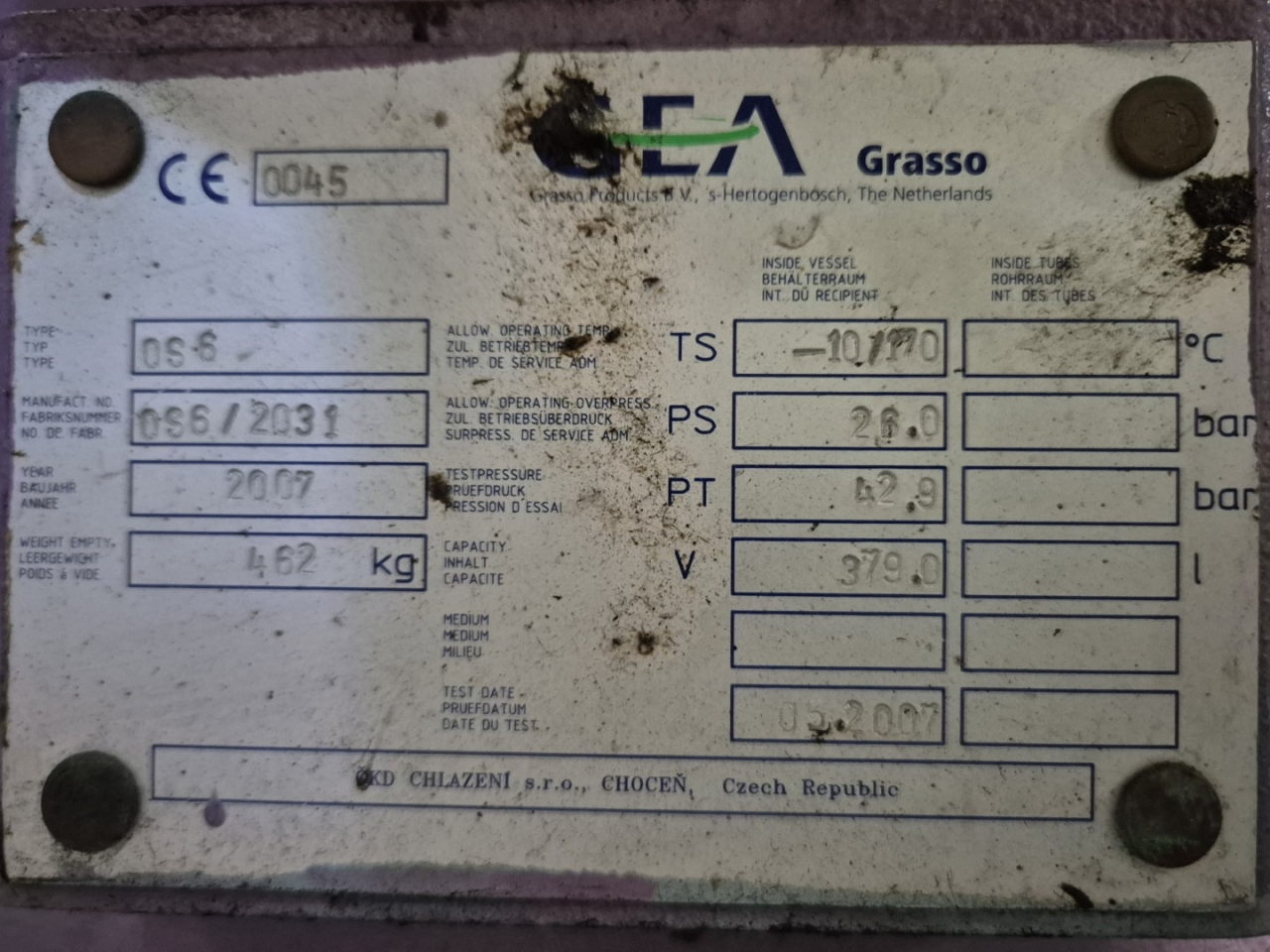

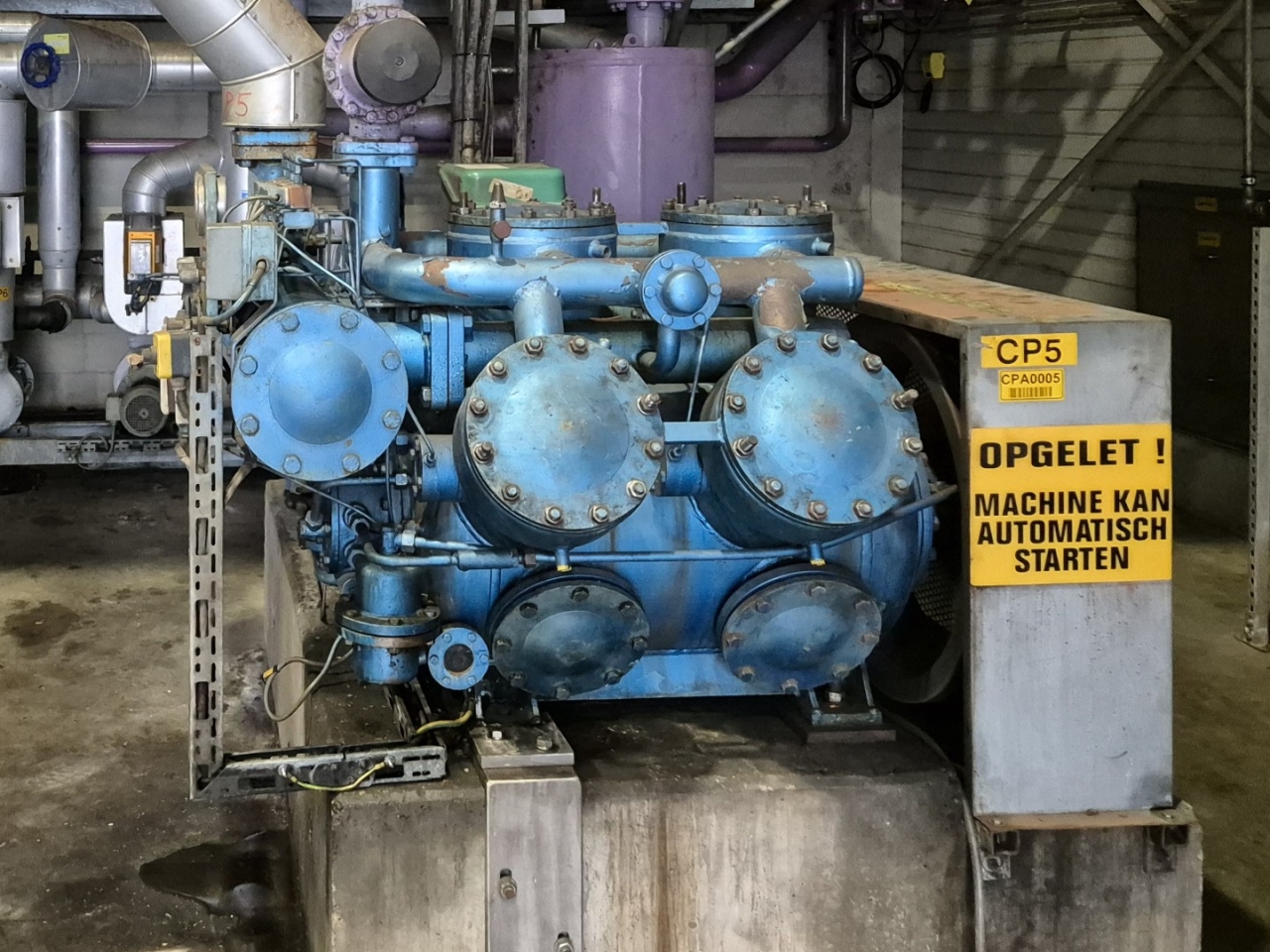

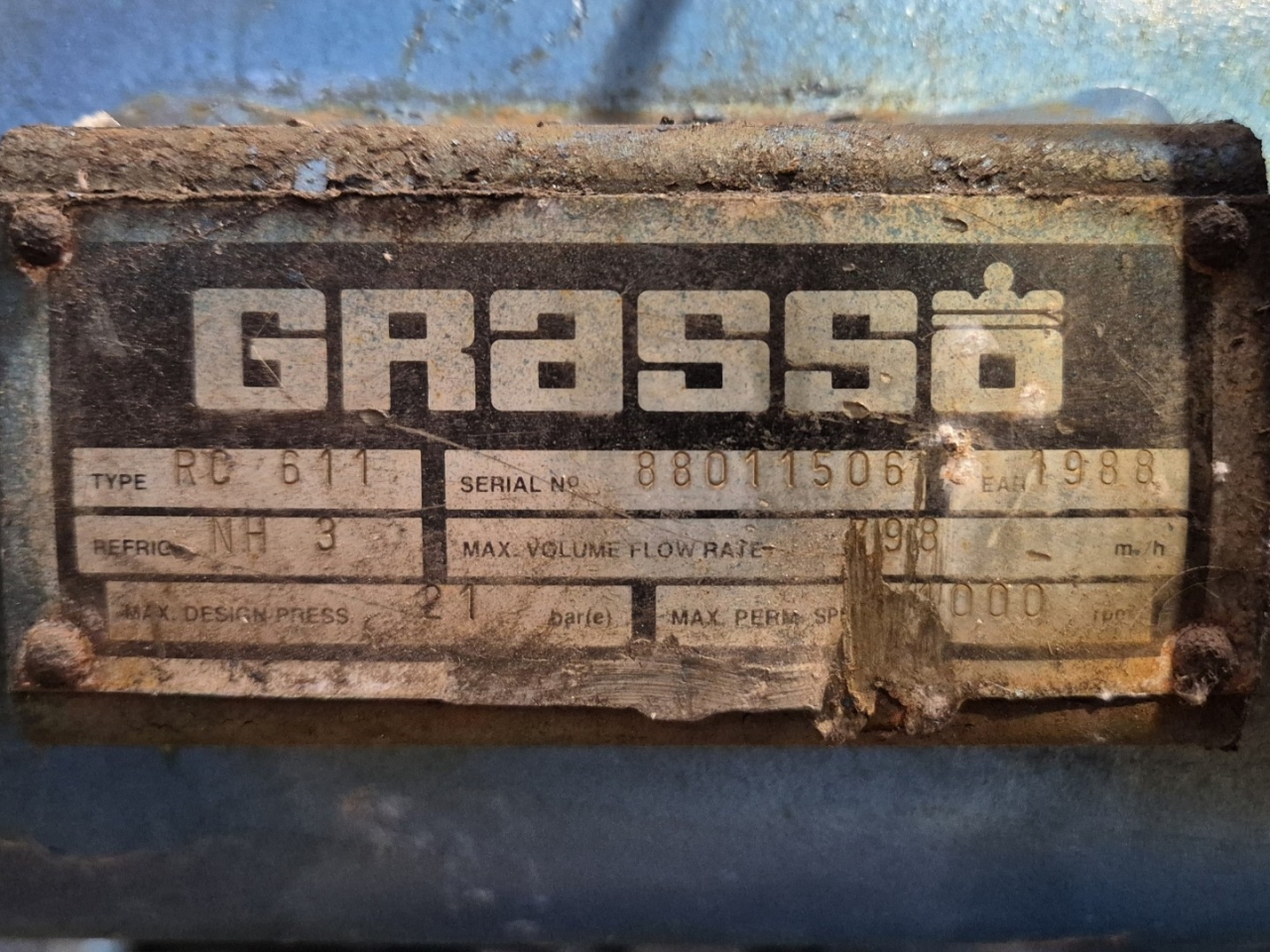

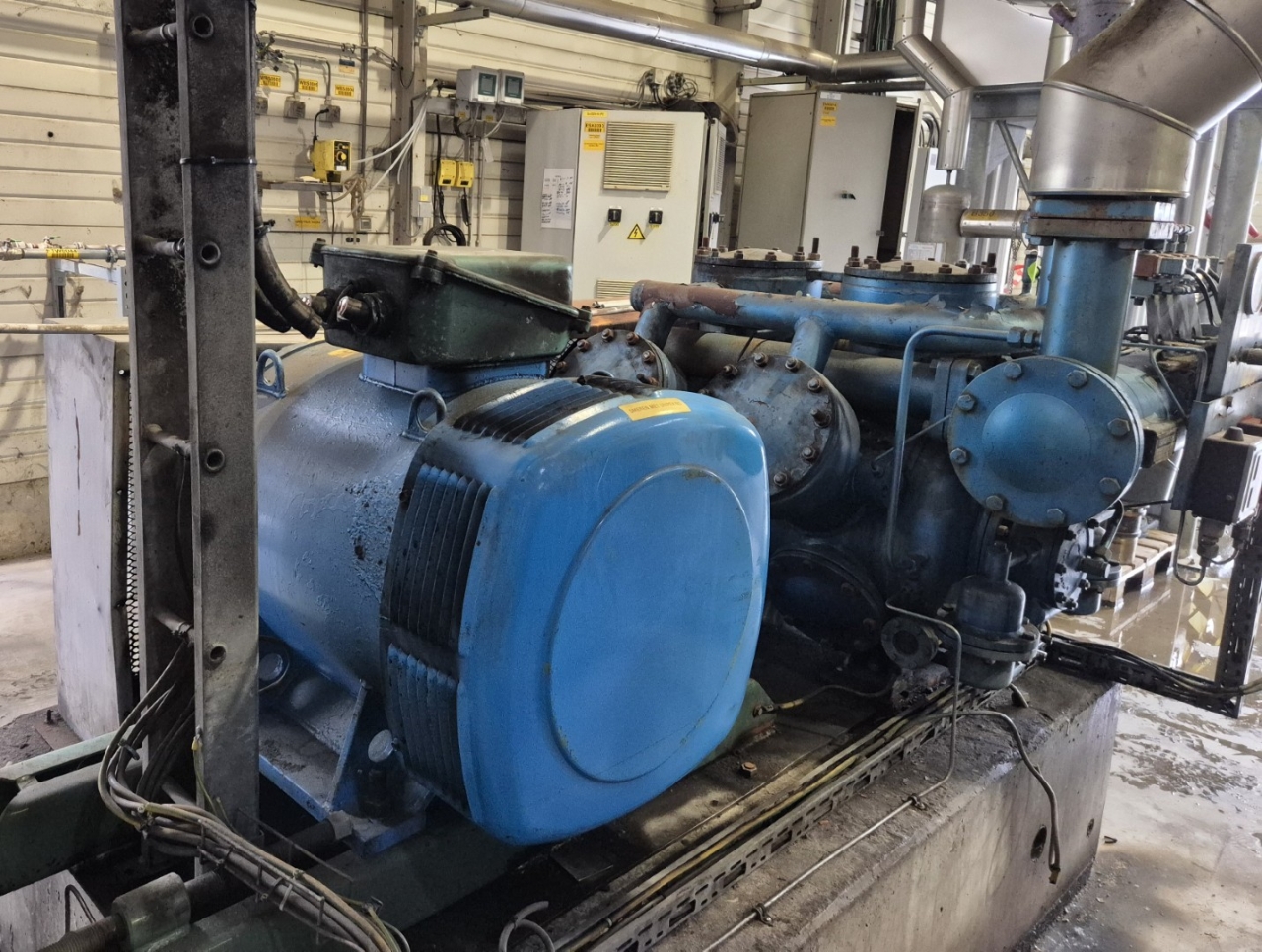

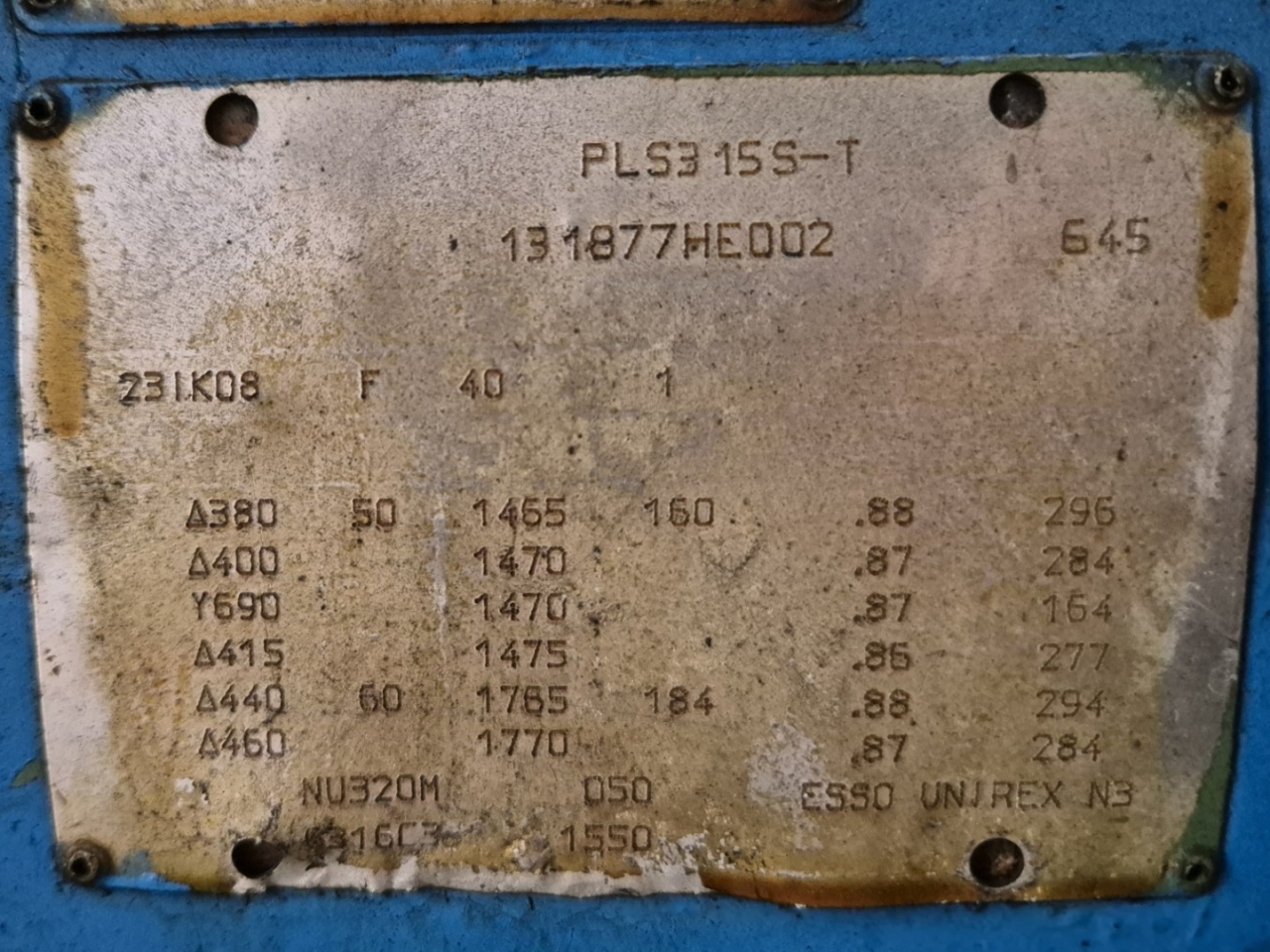

Used Grasso RC 611 reciprocating compressor on NH3 (R717). Complete with a Leroy Somer PLS315S-T electric motor - 50 Hz - 160 kW - 1465 RPM, GEA OS6 oil separator, pressure and safety switches/gauges. The compressor has a displacement of 798 m³/h.
*Why choose for HOSBV? We are not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and an industrial cleaning. *Optionally we can also perform a new paint job and arrange the logistics.
