Mycom N8WA-BB
Mycom N8WA-BB
| 18695 | |
| Marka | Mycom |
| Typ | N8WA-BB |
| Czynnik chłodzący | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 465,4 |
| kW at 0ºC/+40ºC | 312,9 |
| kW at -5ºC/+40ºC | 251,4 |
| kW at -10ºC/+40ºC | 198,5 |
| kW at -20ºC/+40ºC | 115,6 |
| Silnik elektryczny Specs | 50 Hz - 75 kW - 1485 RPM |
| Rozładunek |
|
| Kontrolka wydajności |
|
| Podstawa na stalowej ramie |
|

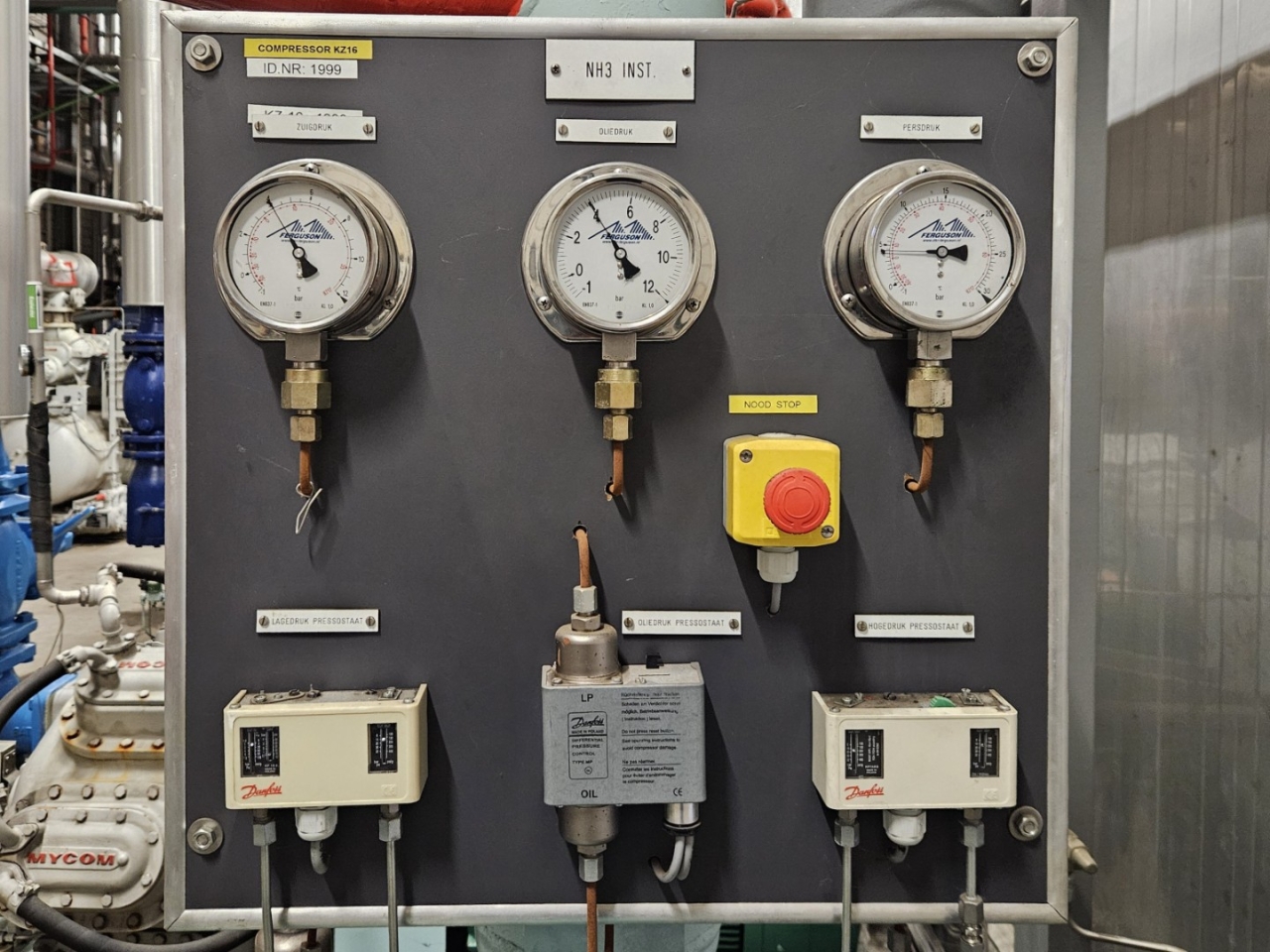

| Ciśnieniowe przełączniki bezpieczeństwa |
|
| Wskaźniki ciśnienia |
|
| Separator oleju |
|
| Okno widokowe |
|

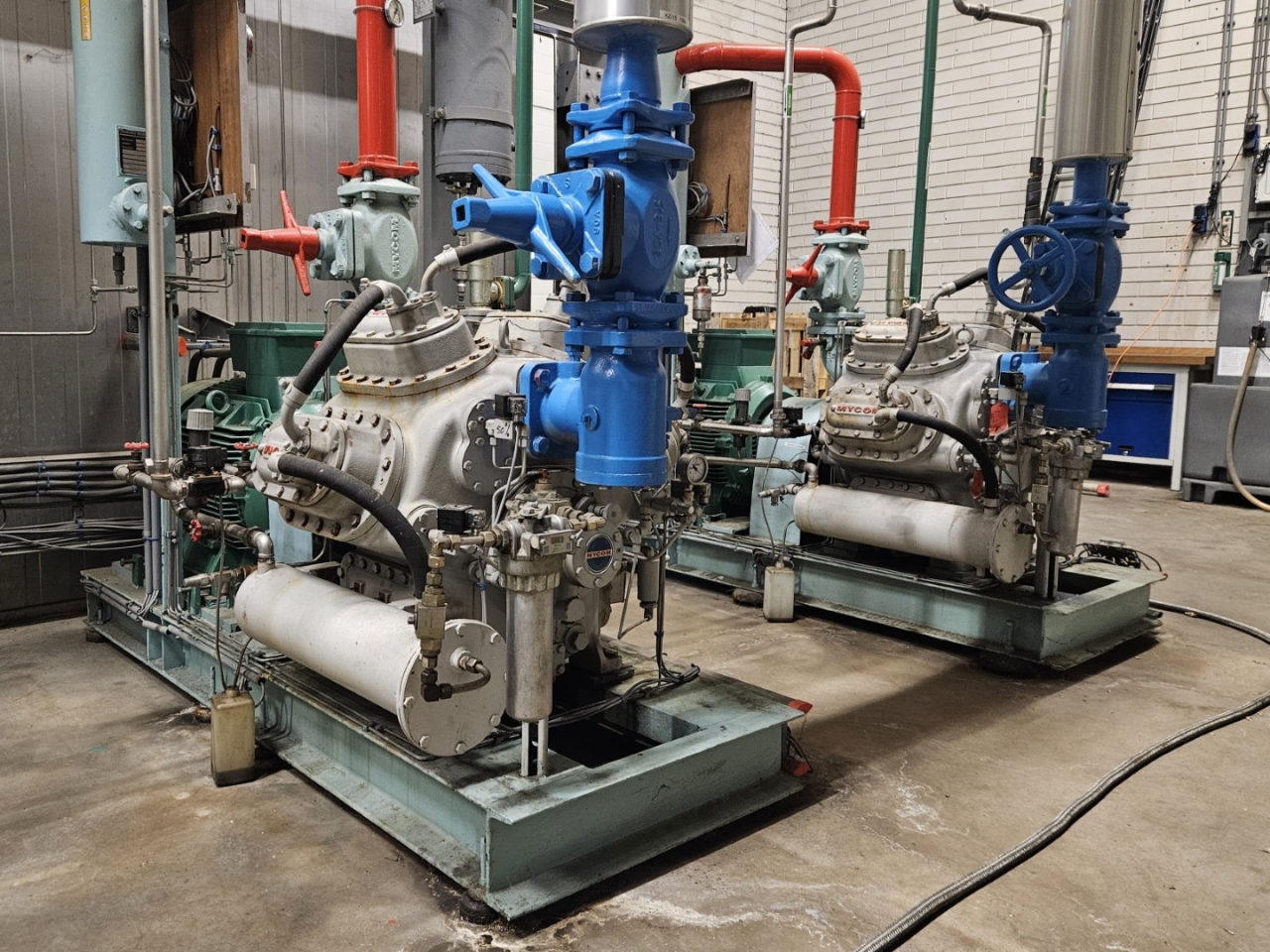

| Liczba sztuk | 2 |
Mycom N8WA-BB

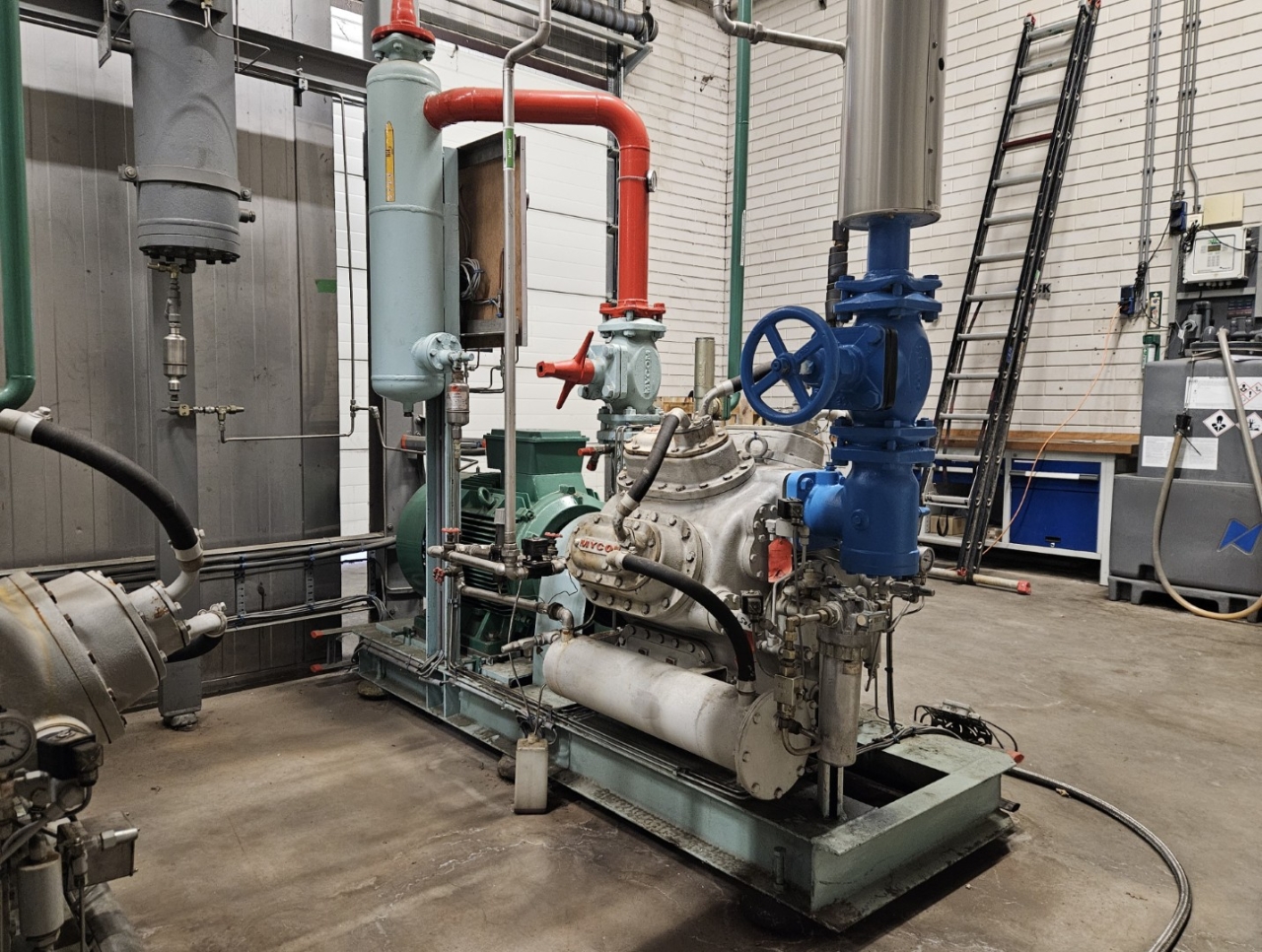

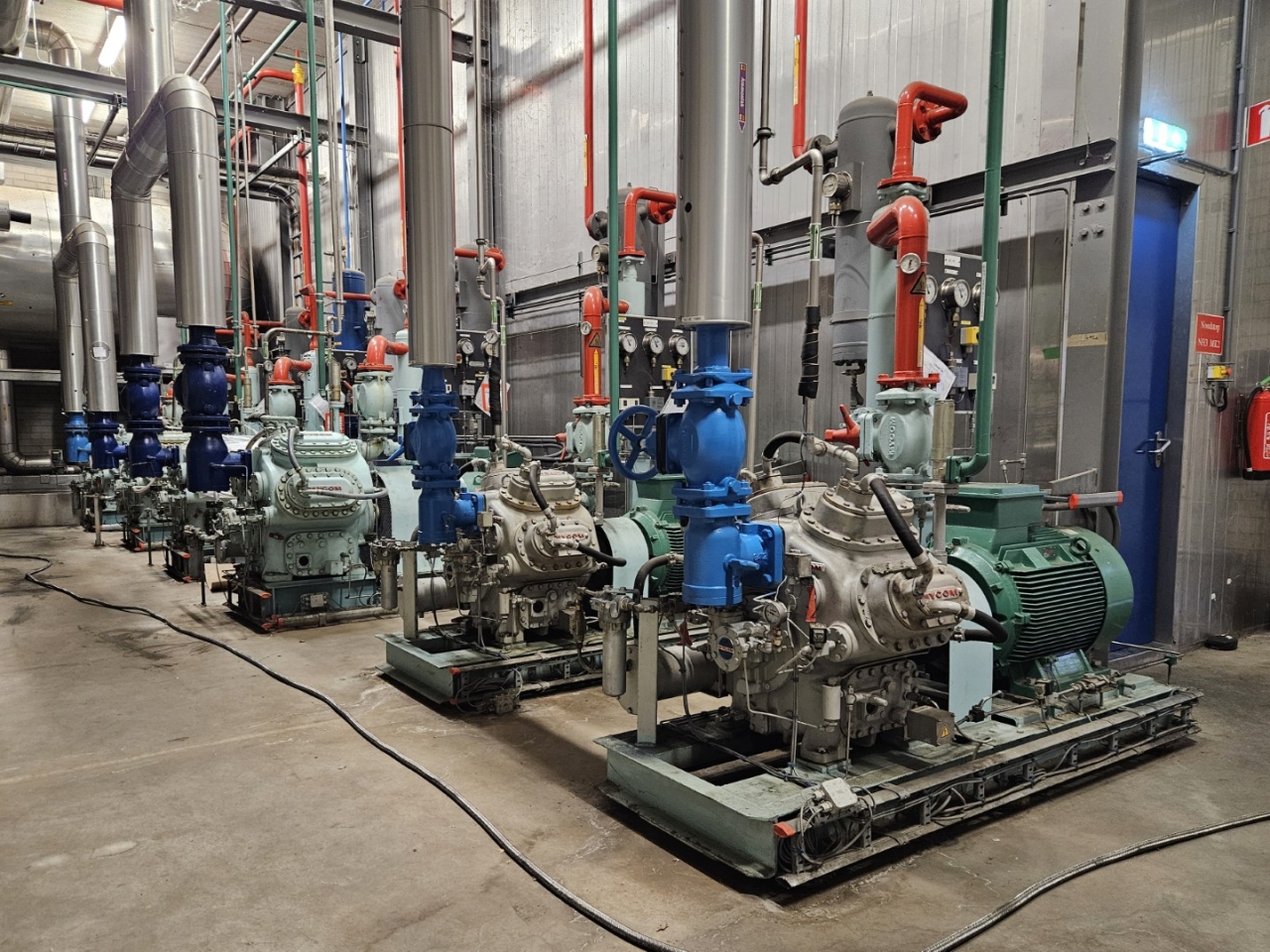

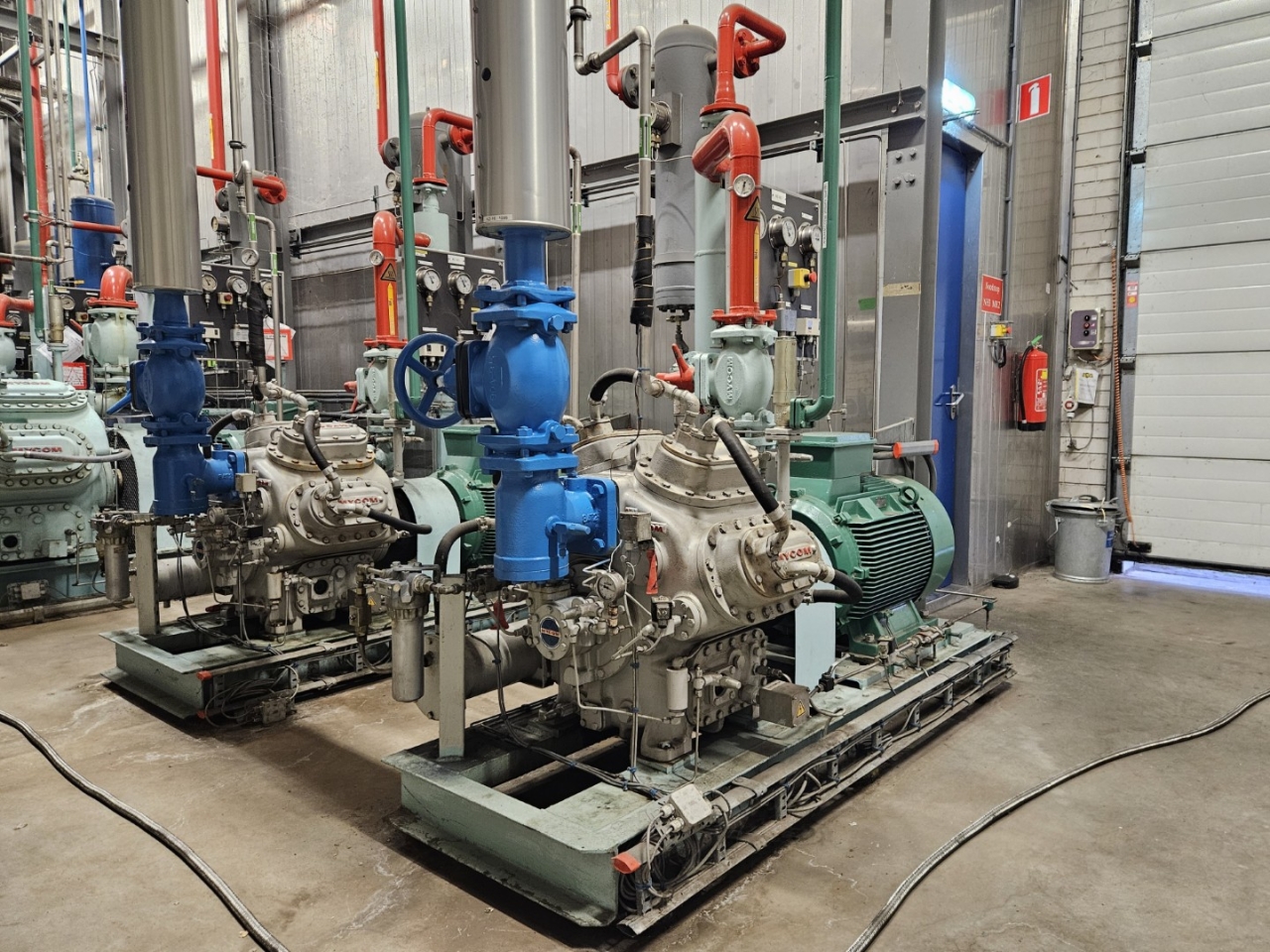

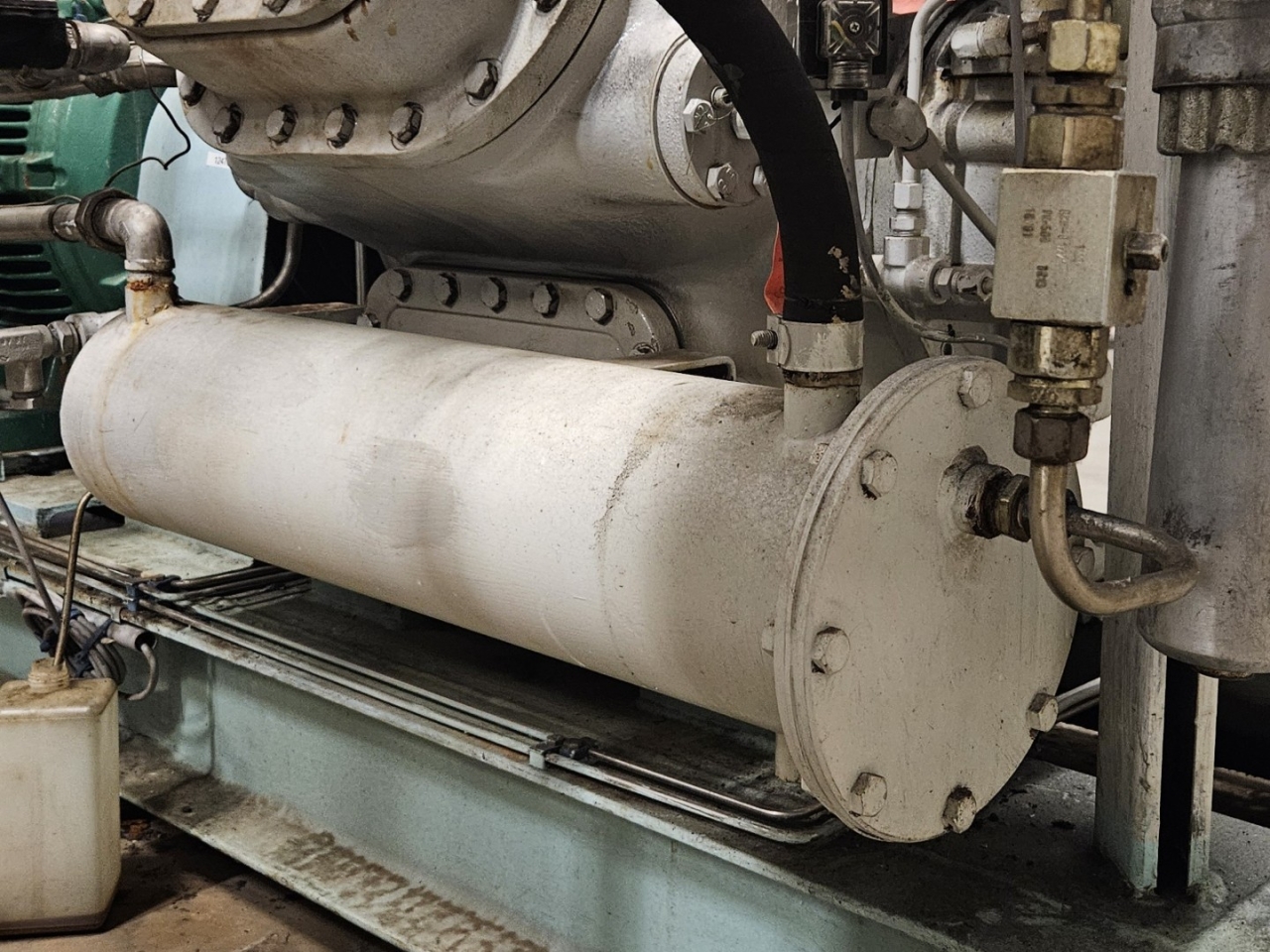

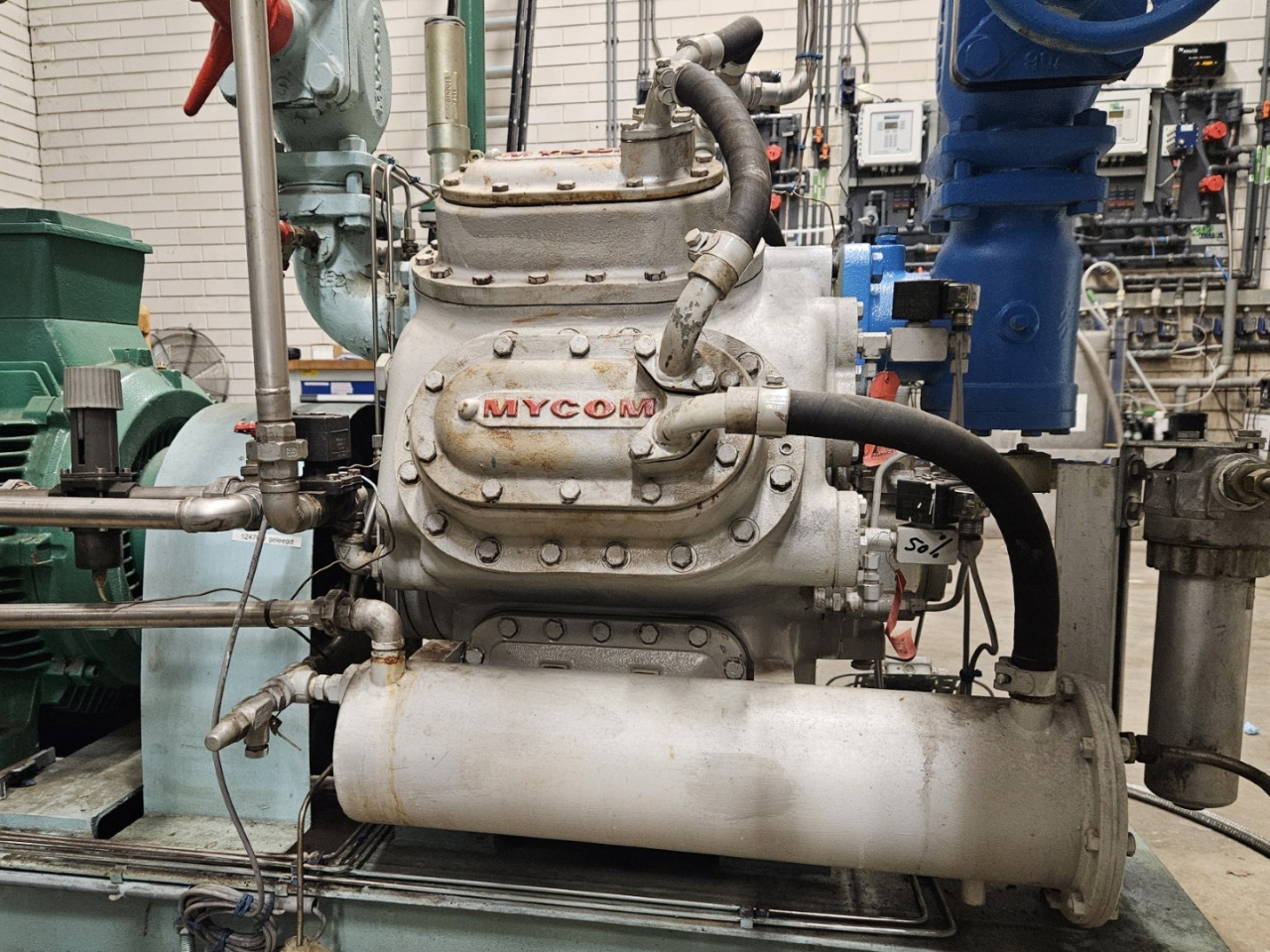

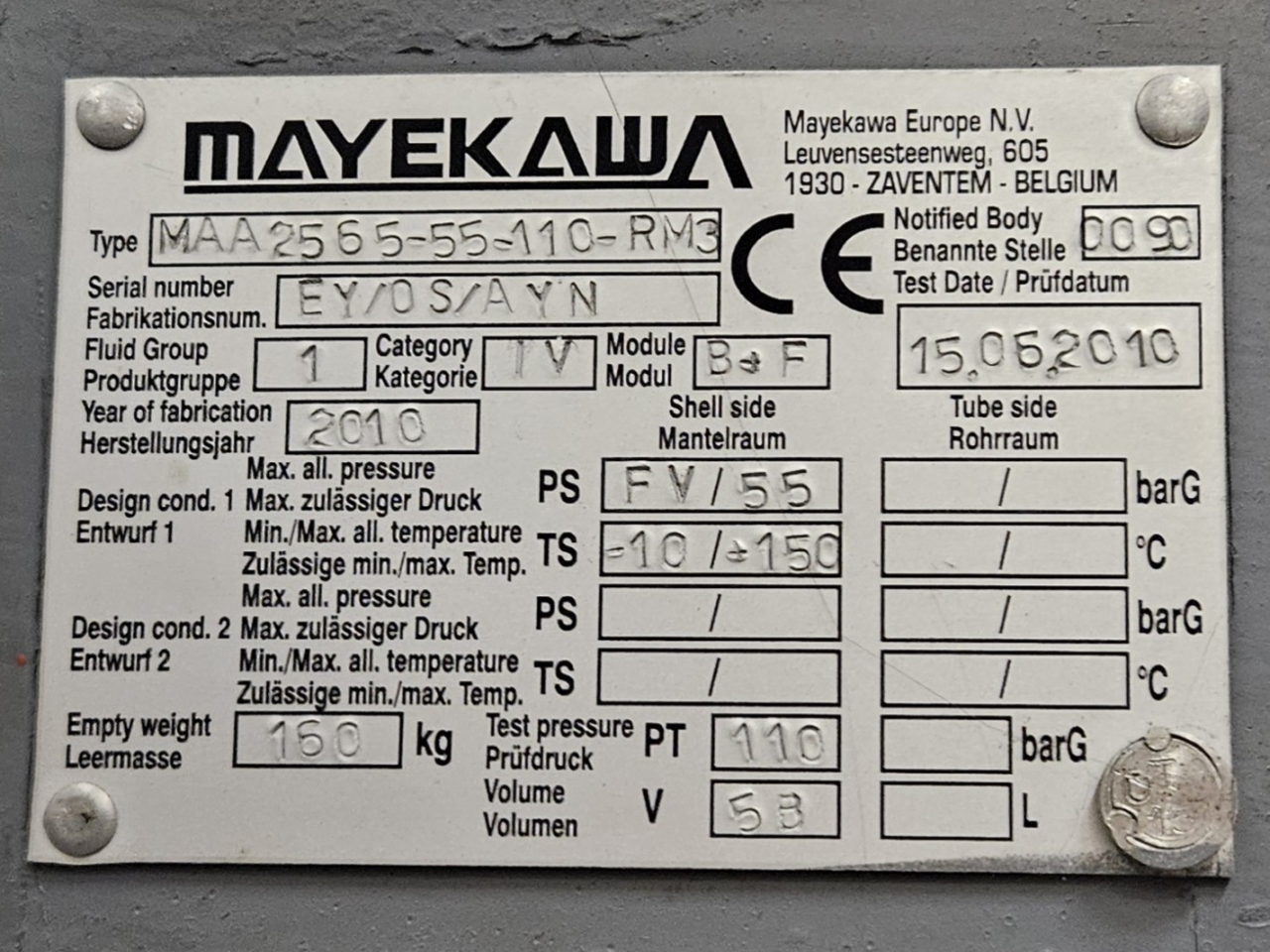

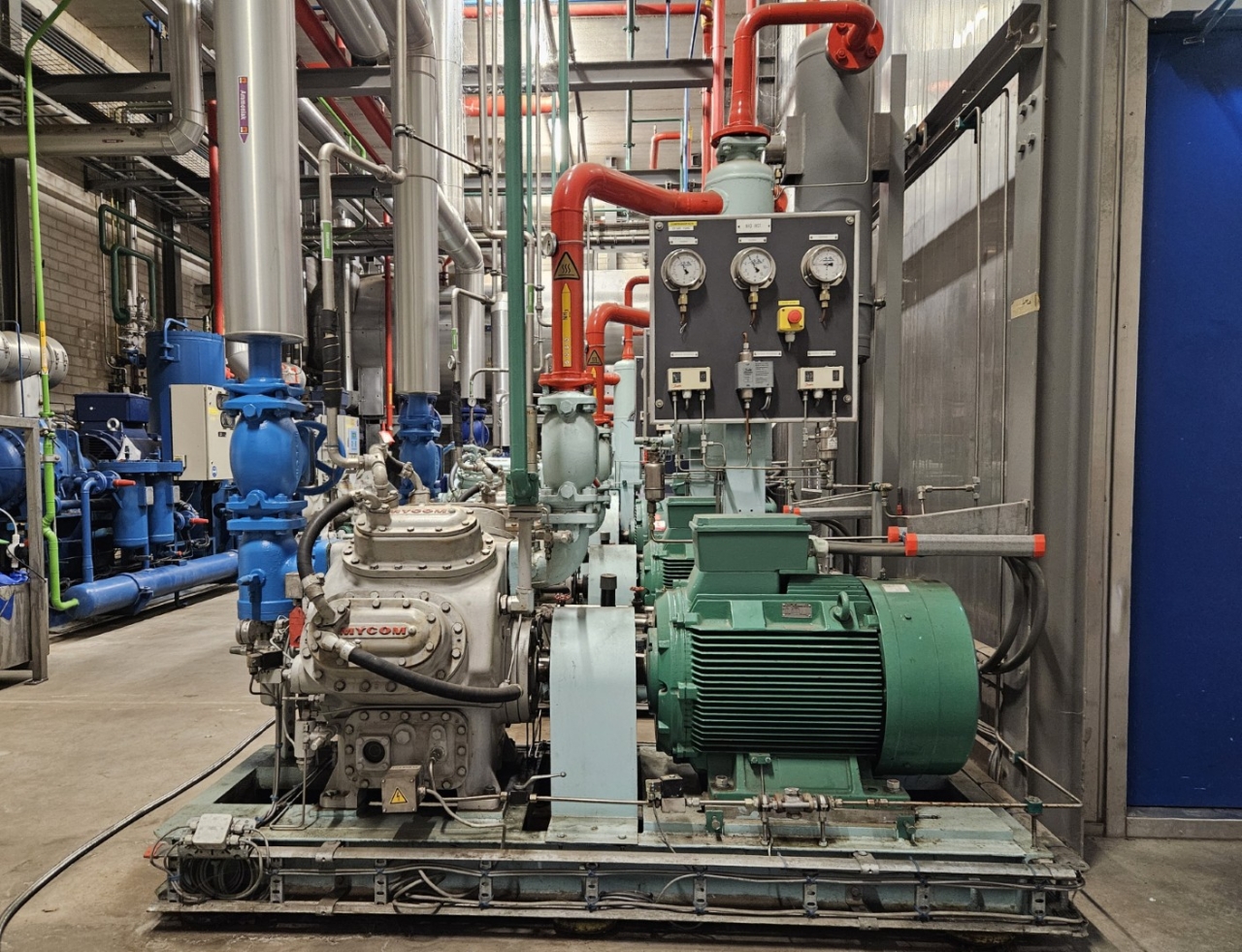

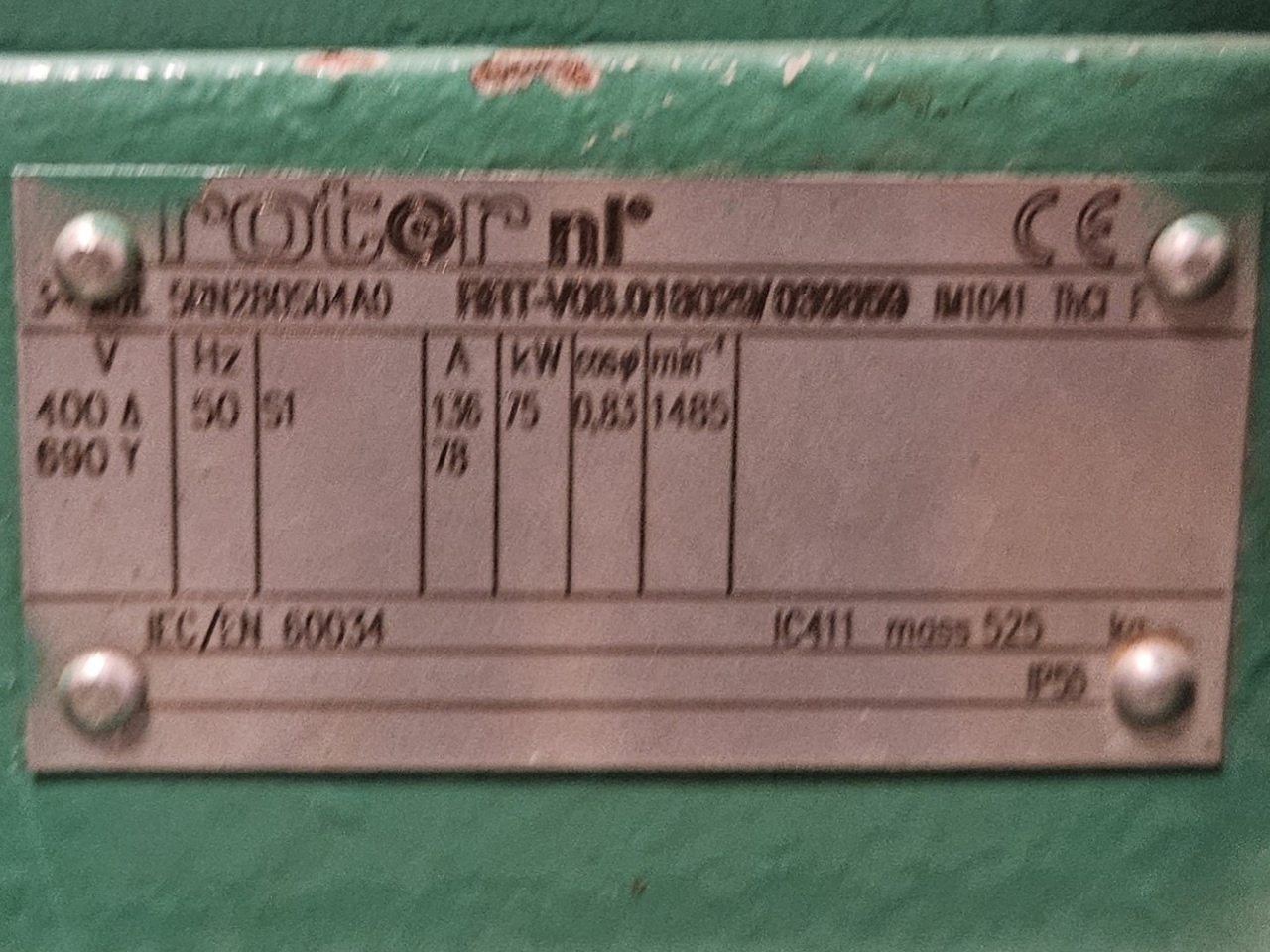

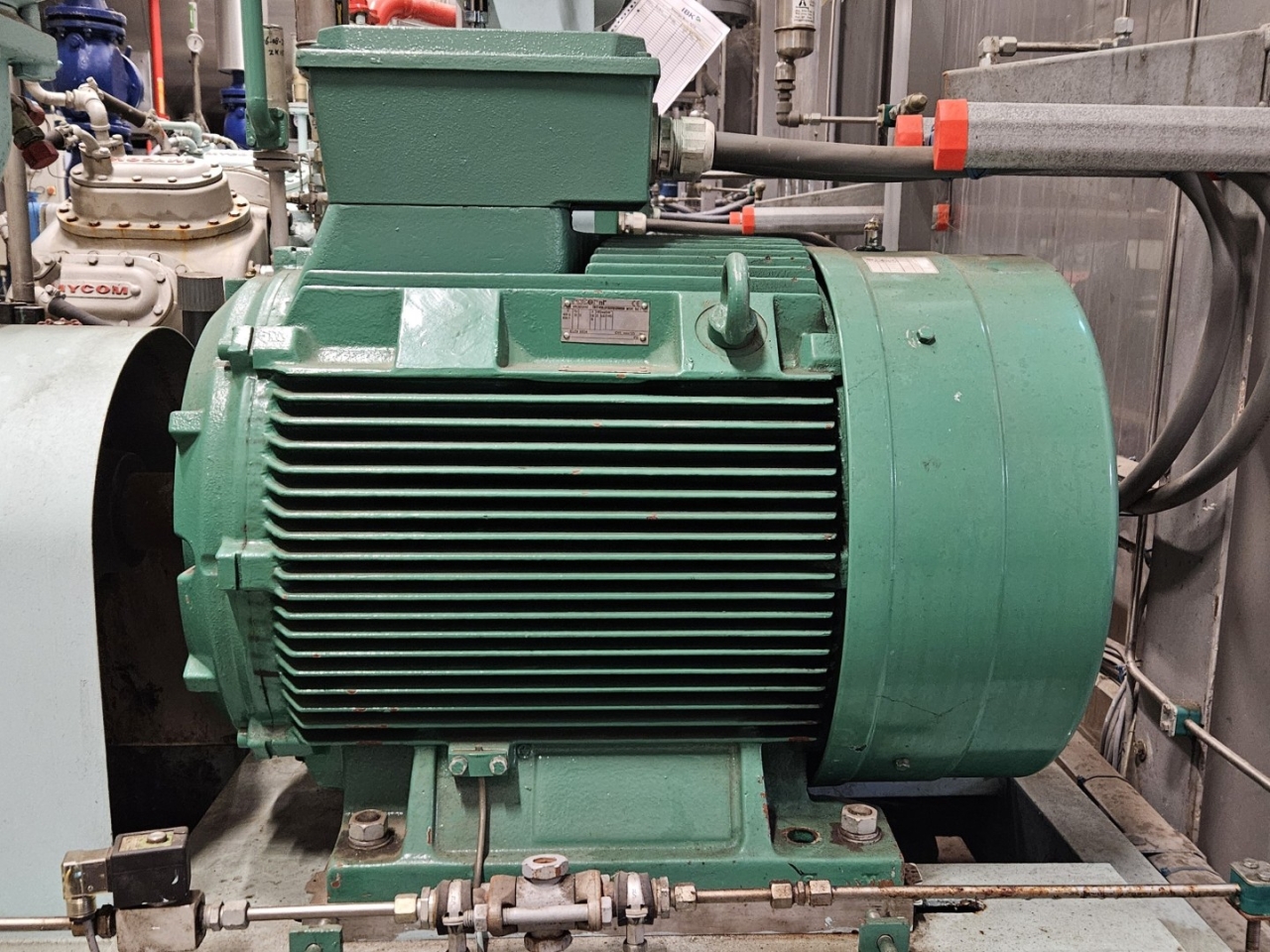

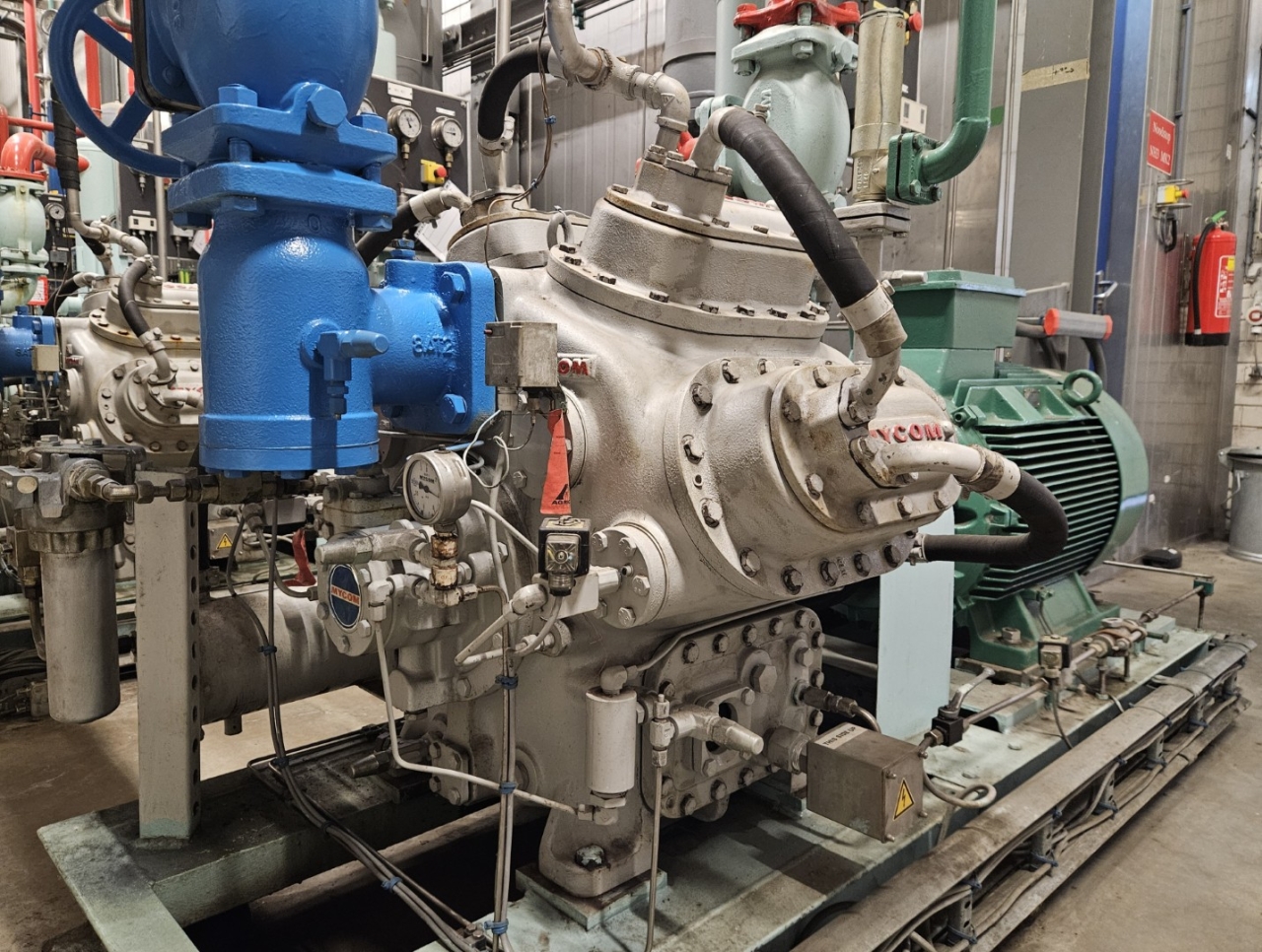

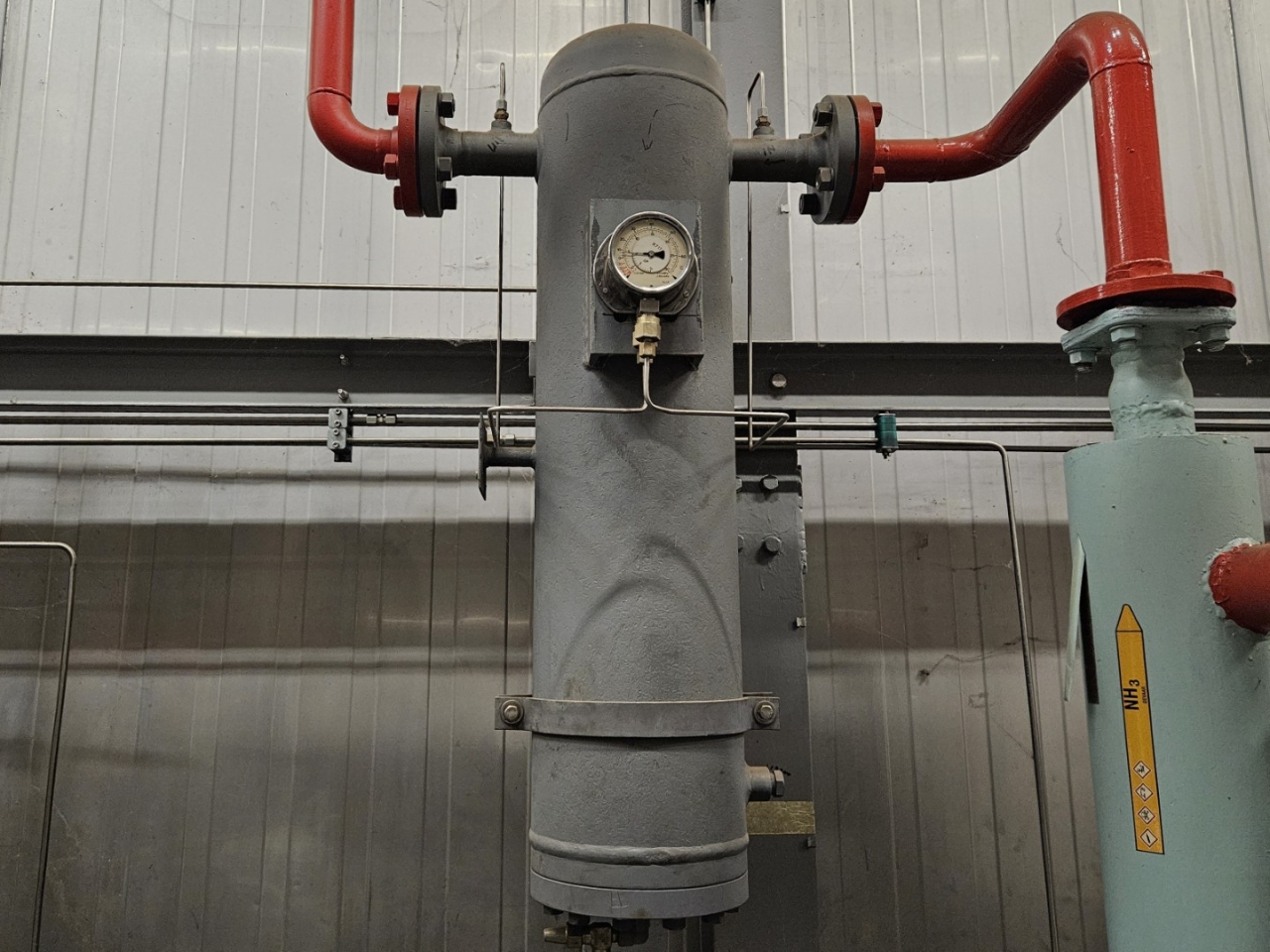

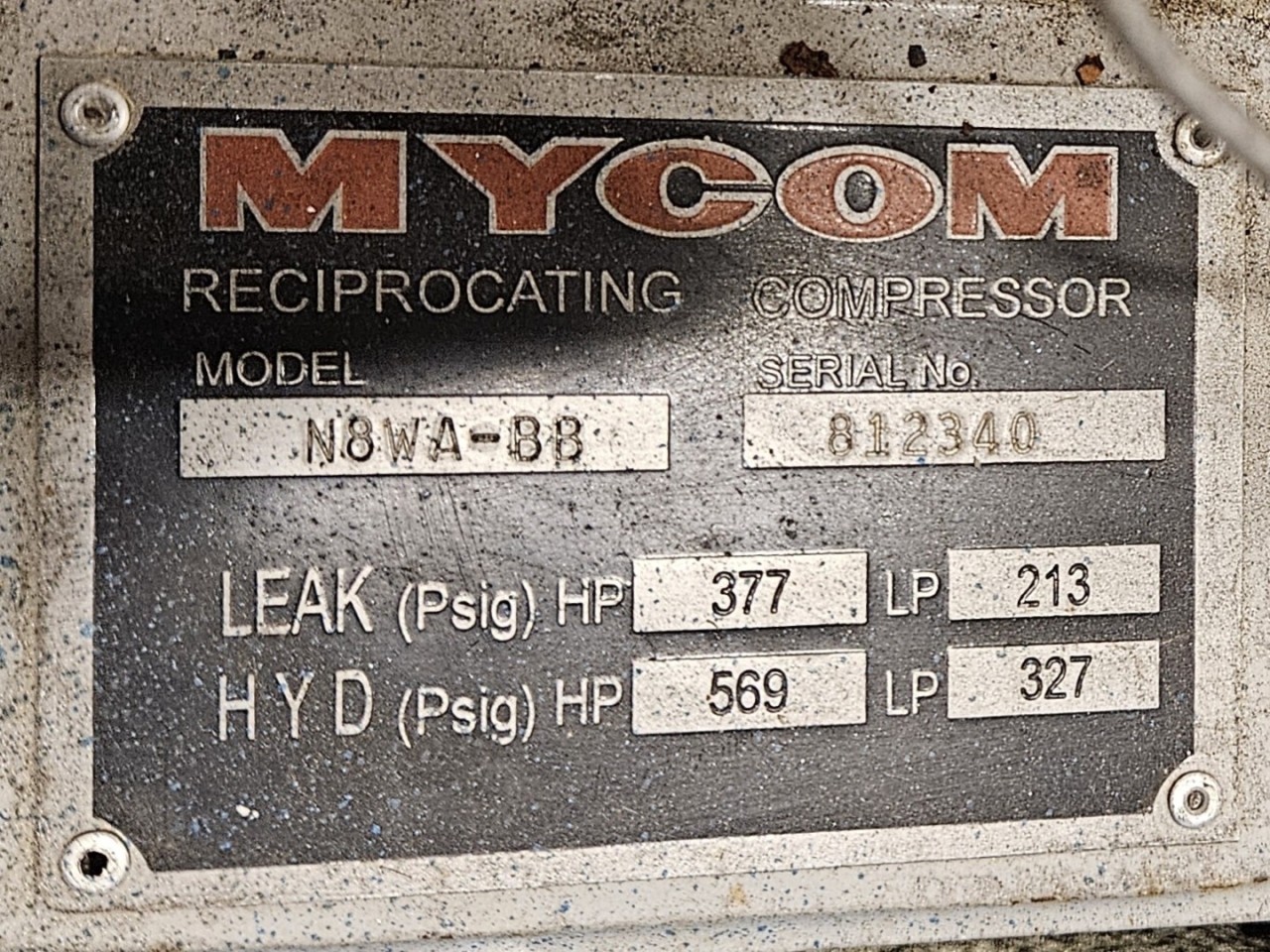

Used Mycom N8WA-BB NH3 reciprocating compressor on a steel base frame. Complete with a Rotor 5RN280S04A0 electric motor - 50 Hz - 75 kW - 1485 RPM, Mayekawa MAA2565-55-110-RM3 oil separator, oil cooler, pressure and safety switches/gauges.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
