Mycom N200VLDD-MS
Mycom N200VLDD-MS
| 18040 | |
| Marca | Mycom |
| Tipo | N200VLDD-MS |
| Refrigerante | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 1654,4 |
| kW at 0ºC/+40ºC | 1157,0 |
| kW at -5ºC/+40ºC | 954,7 |
| kW at -10ºC/+40ºC | 779,8 |
| kW at -20ºC/+40ºC | 502,0 |
| kW at -30ºC/+40ºC | 303,9 |
| kW at -40ºC/+40ºC | 167,6 |
| kW at -45ºC/+40ºC | 117,7 |
| Piston Descargador |
|
| Control de capacidad |
|
| Sober Bancada |
|
| Recipiente de líquido ltr. | 60 Hz - 355 kW - 3565 RPM |
| Separador de aceite |
|

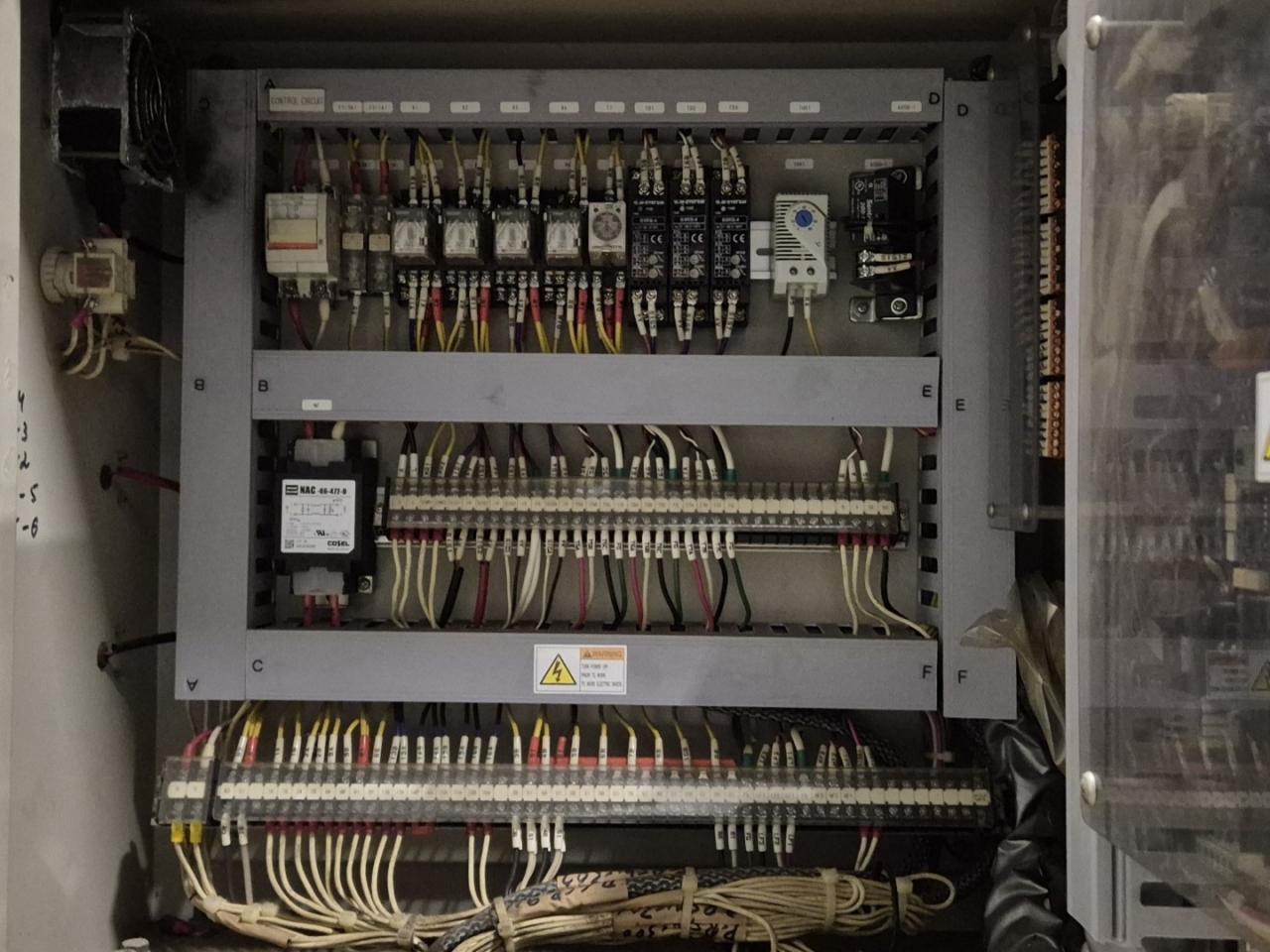

| Panel de control |
|
| Comentarios | | Y.o.b. 2008 |
| Tamaños | 3600x1200x1900 mm (LxWxH) |
| Stock | 4 |
Mycom N200VLDD-MS

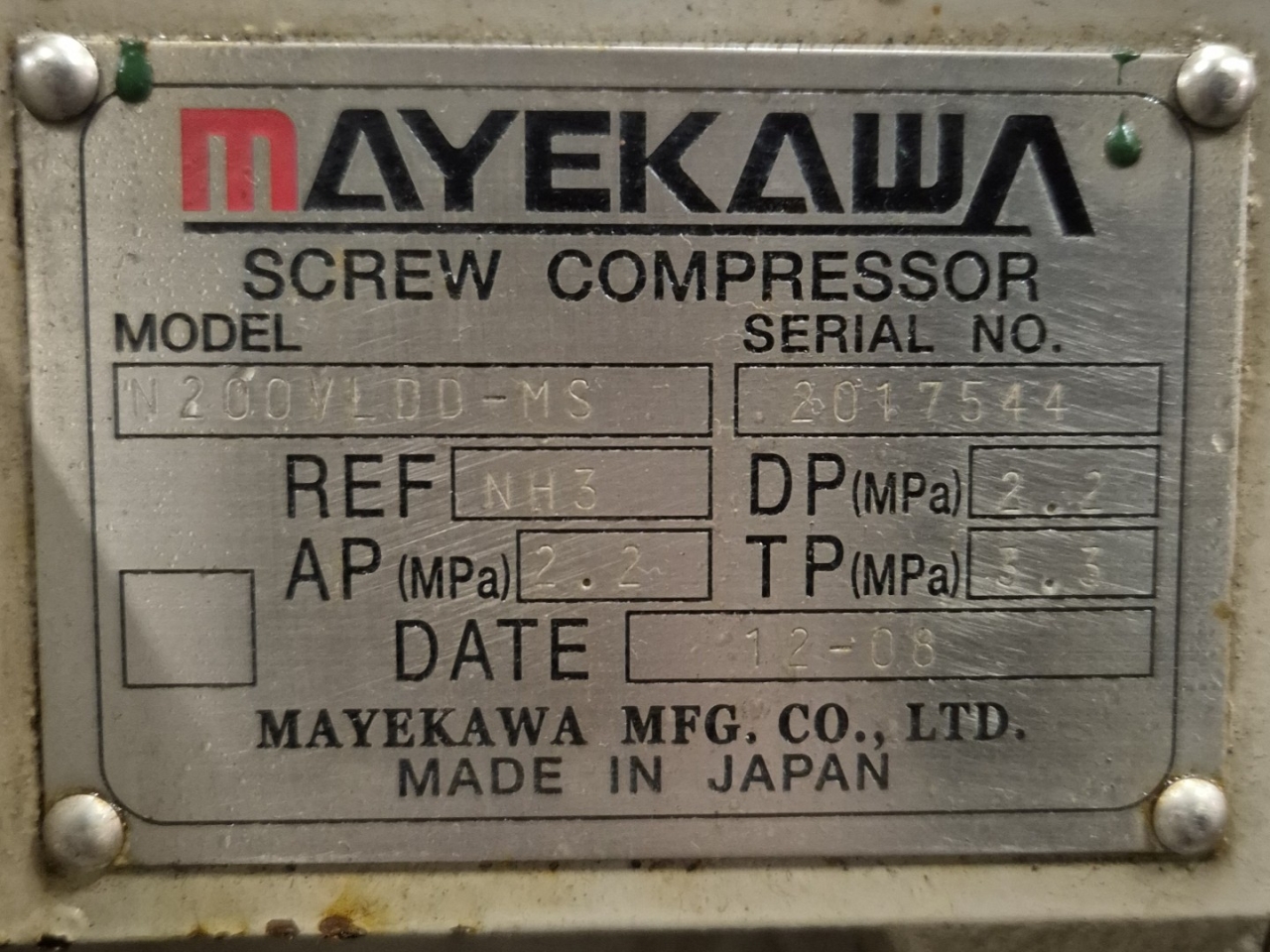

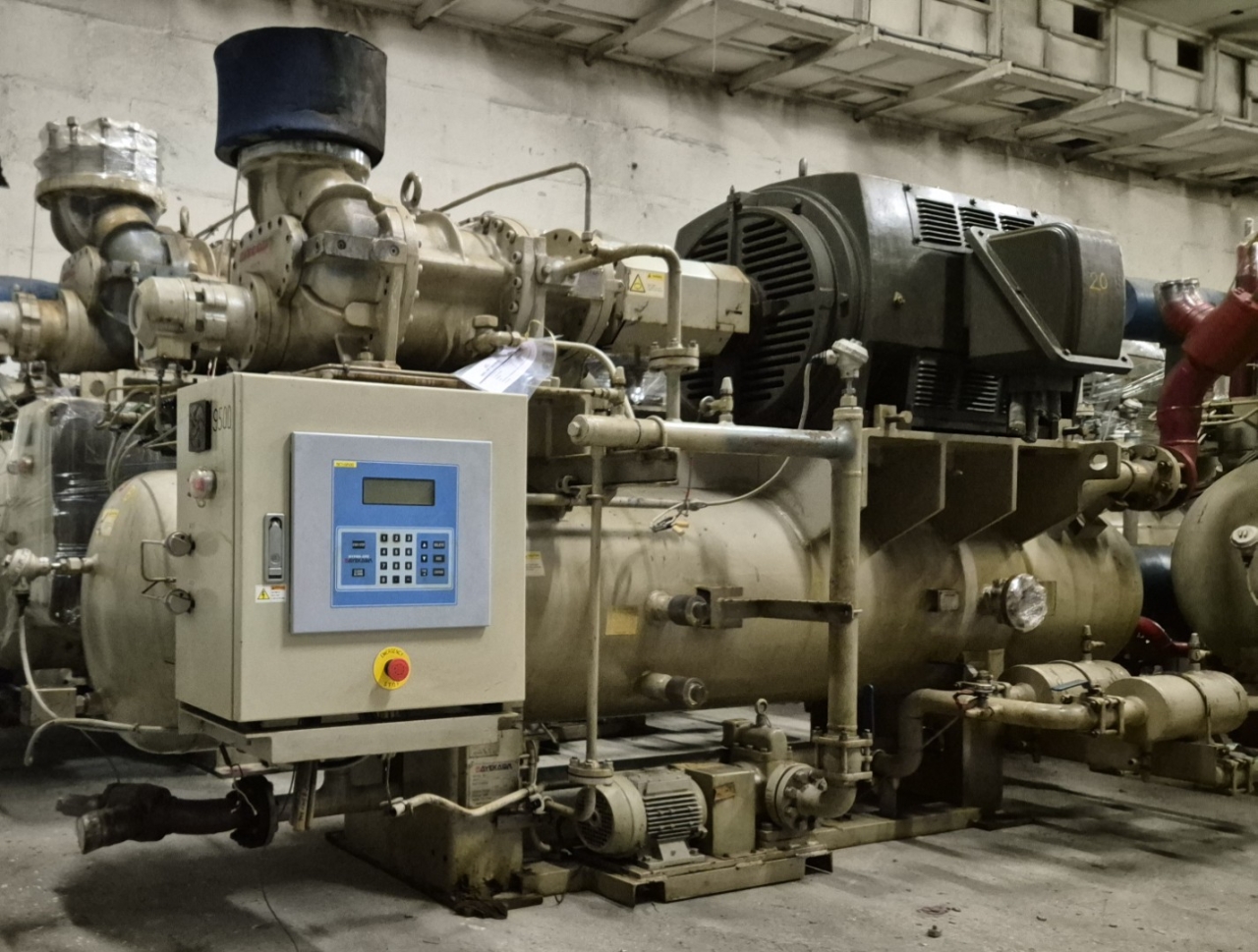

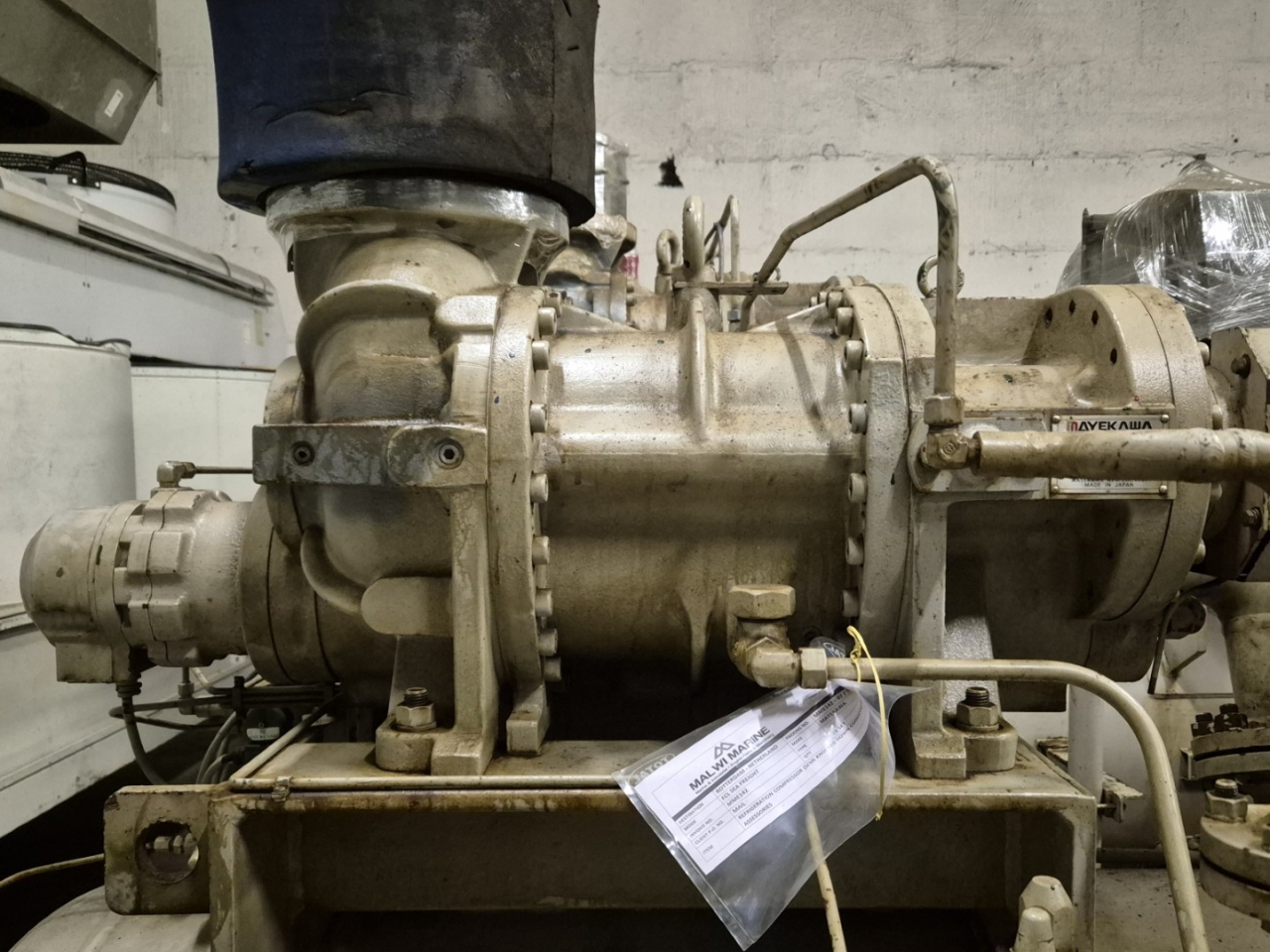

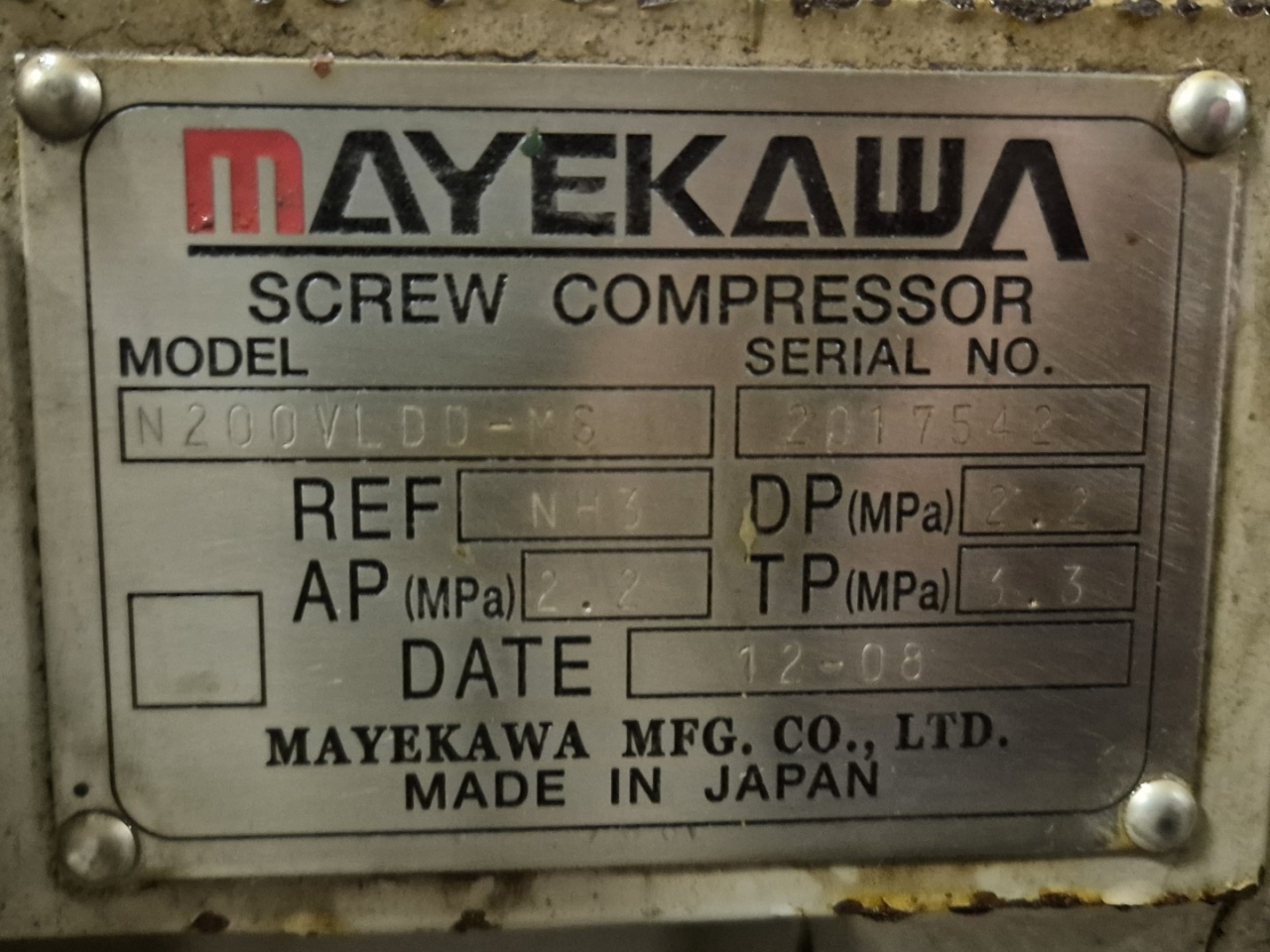

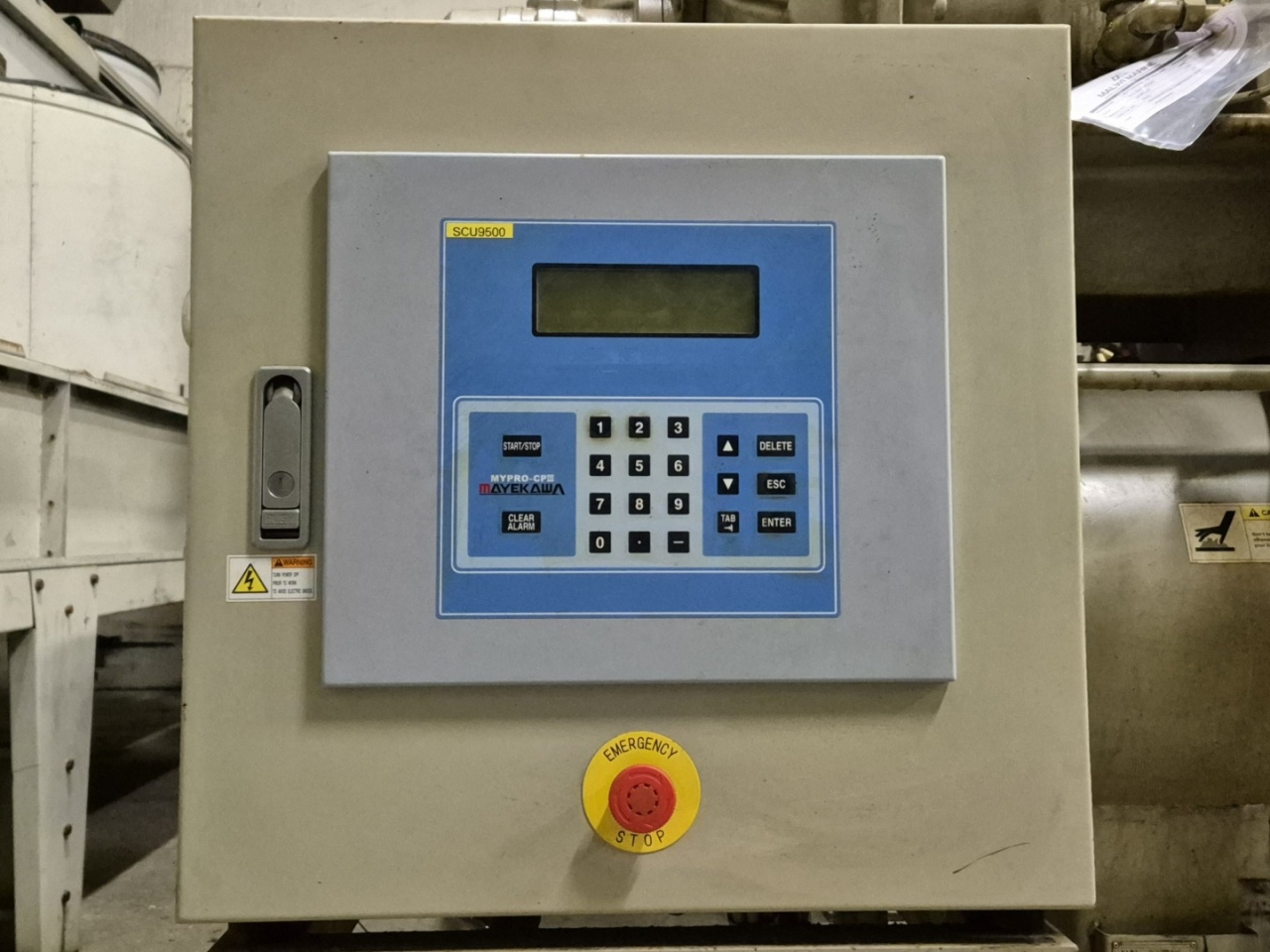

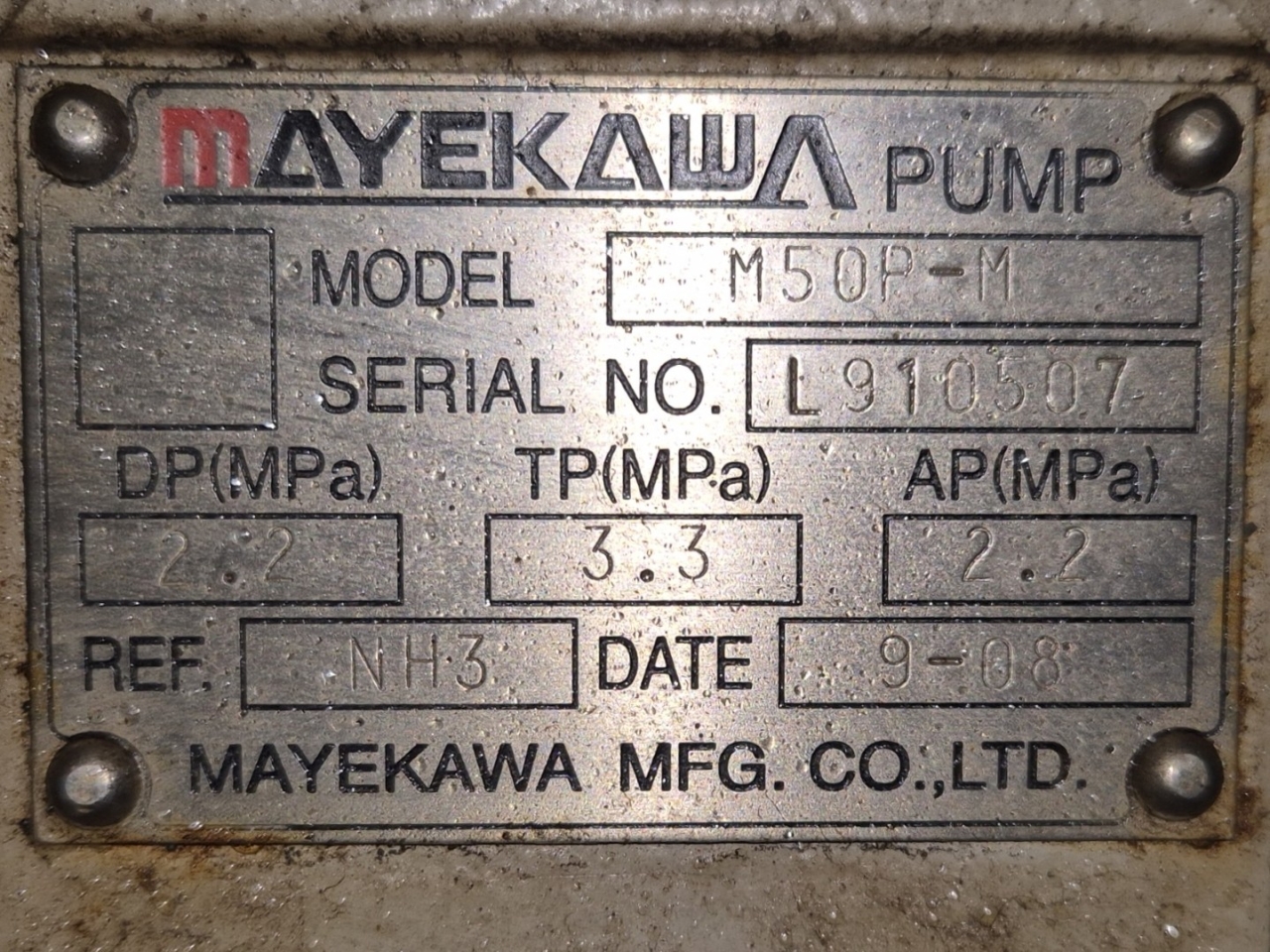

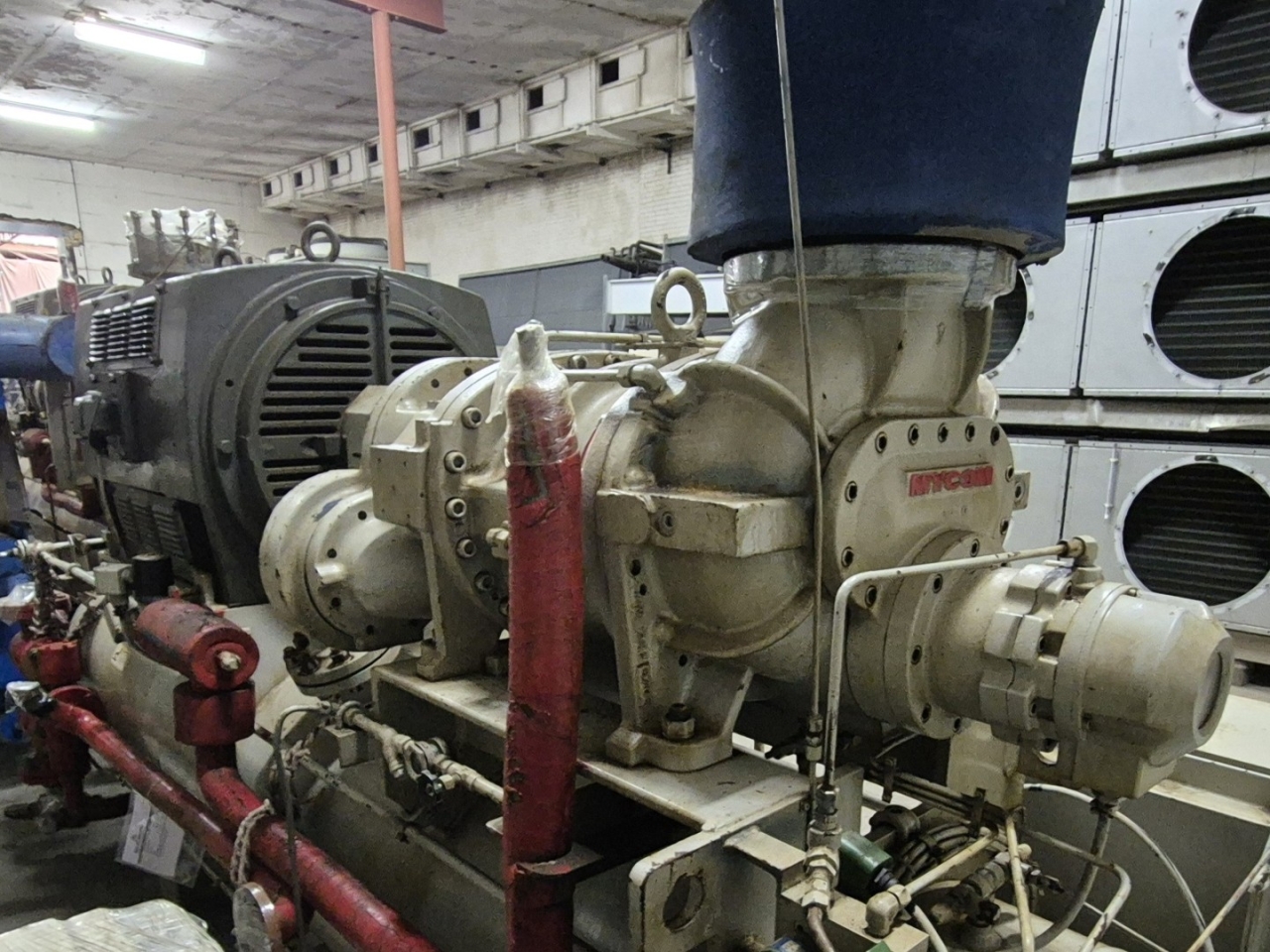

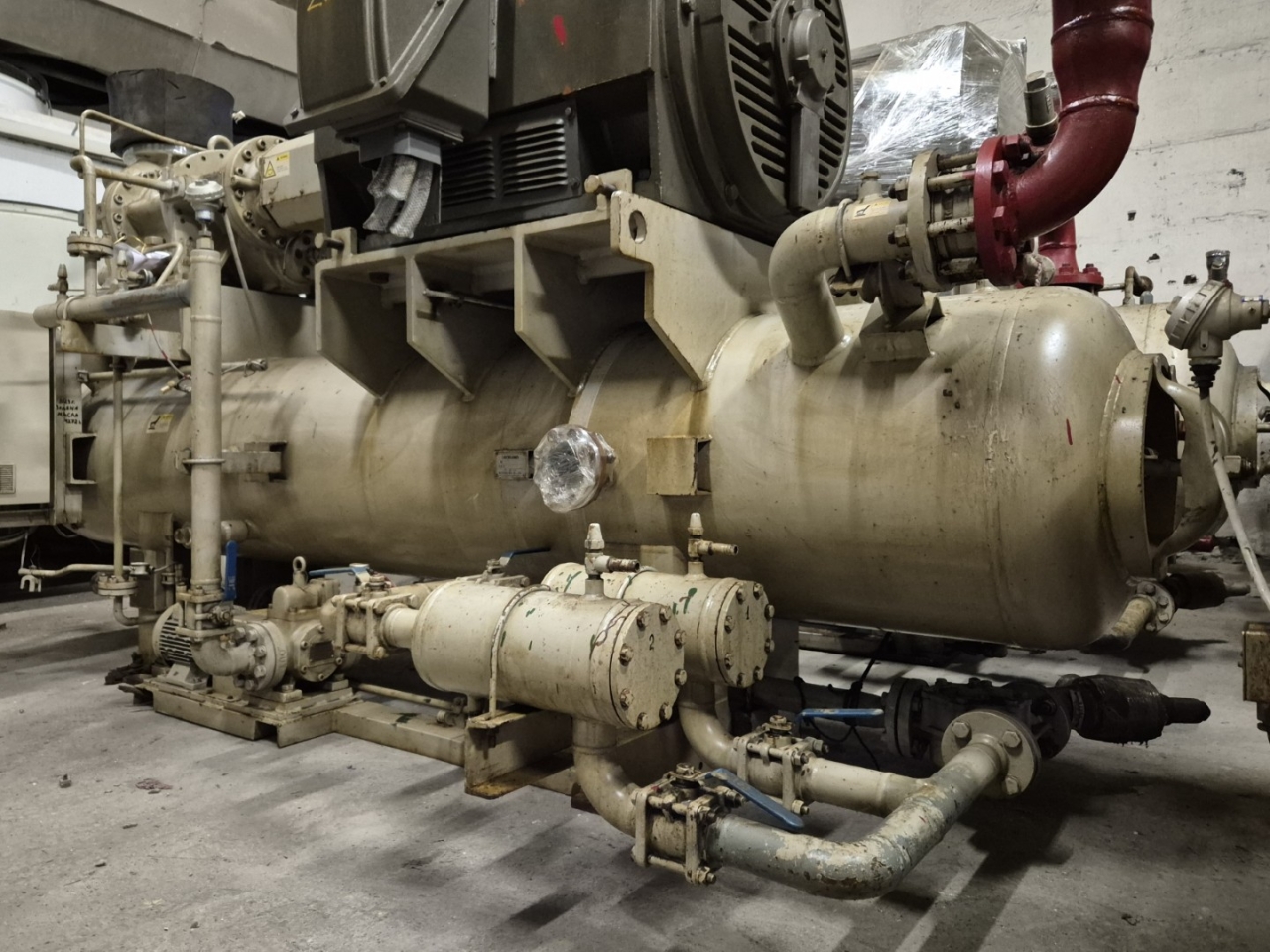

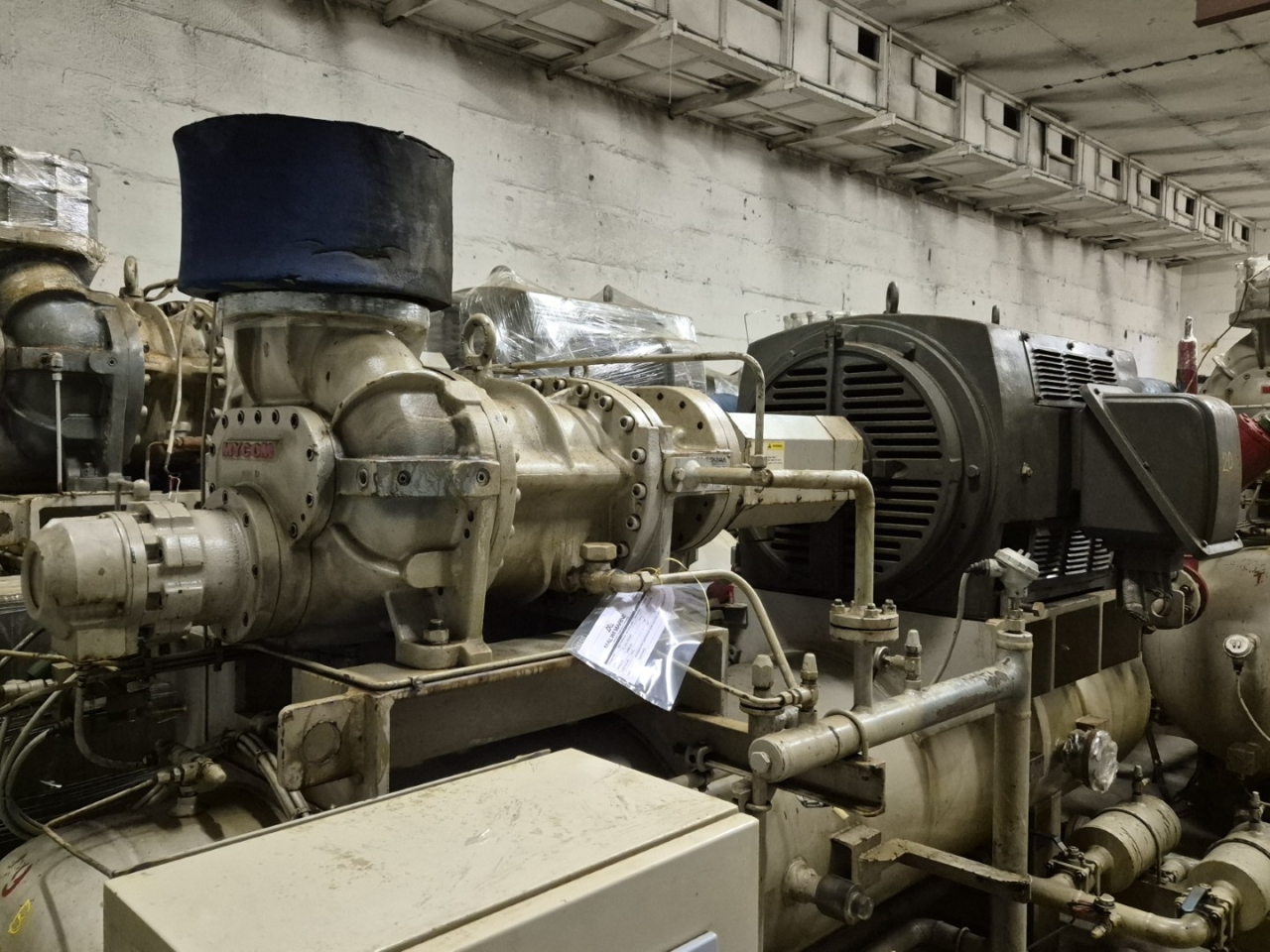

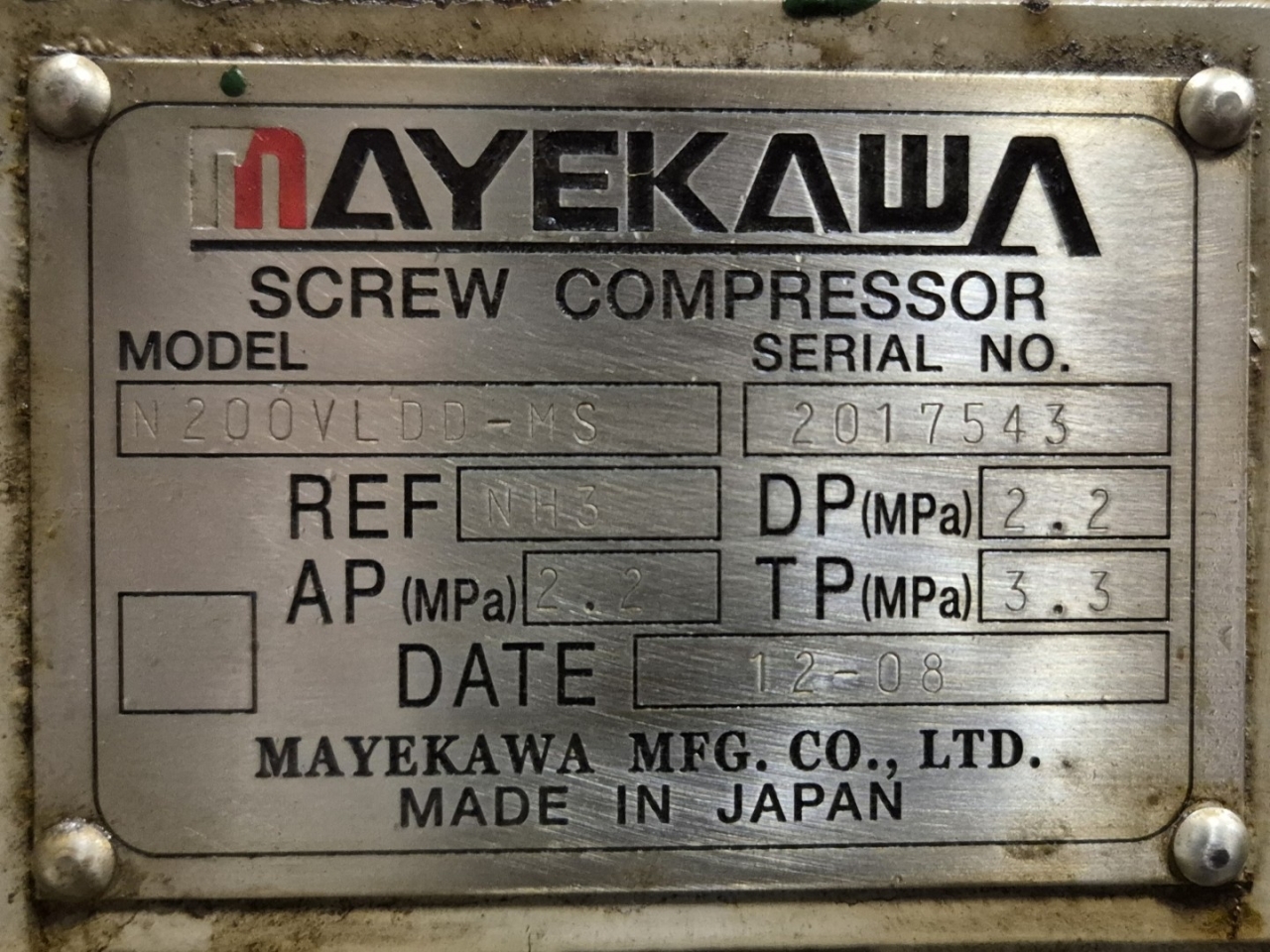

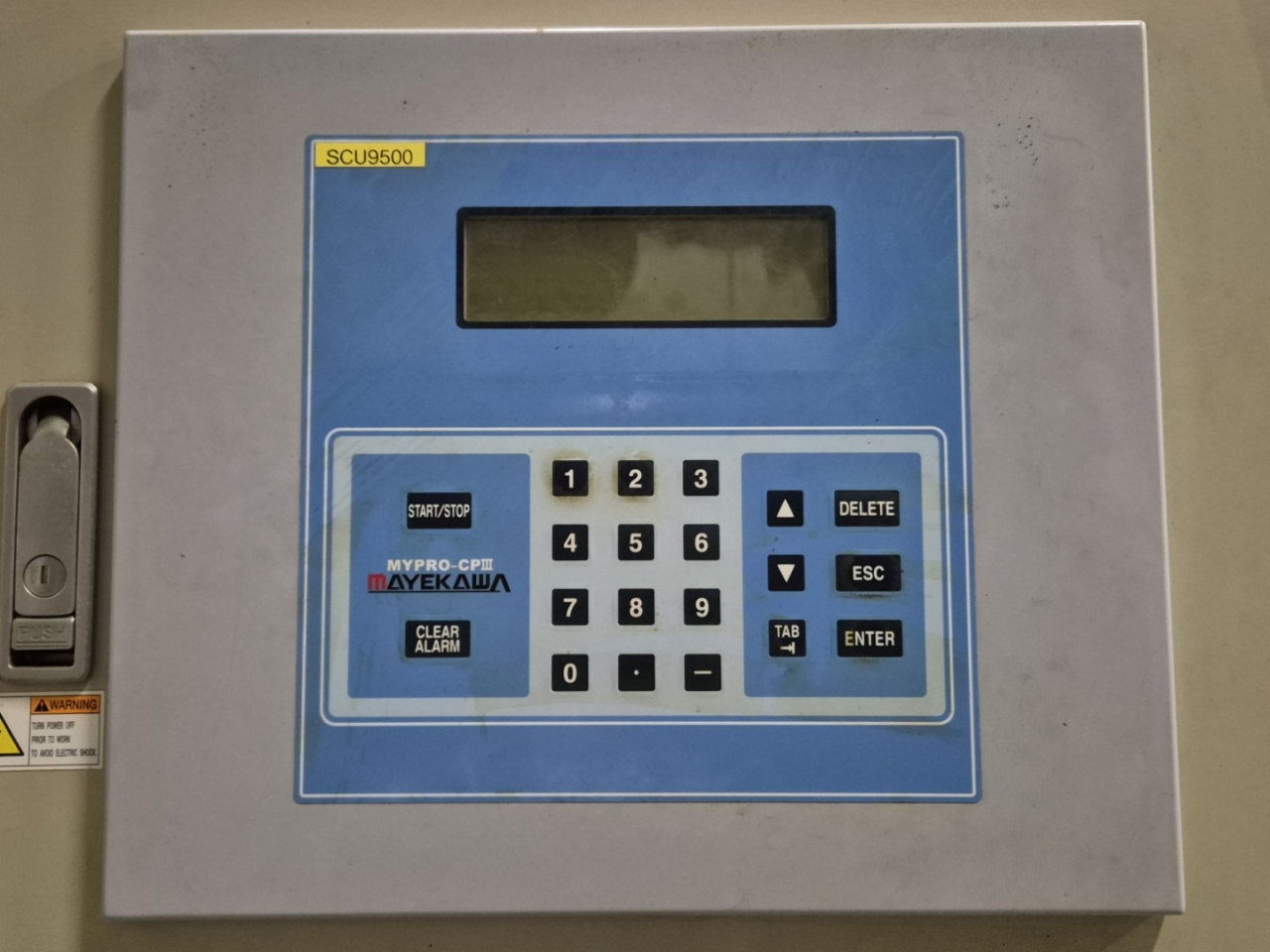

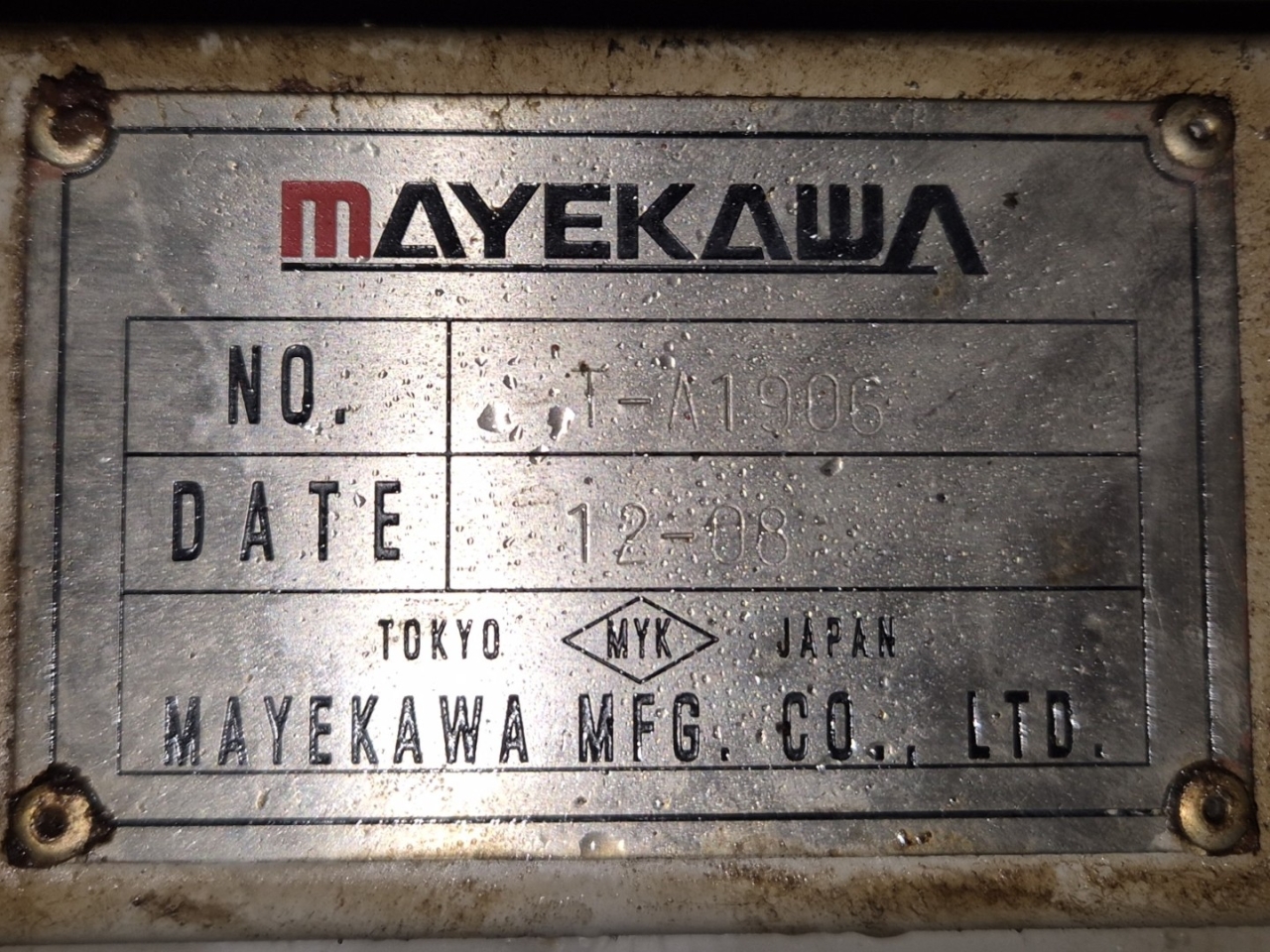

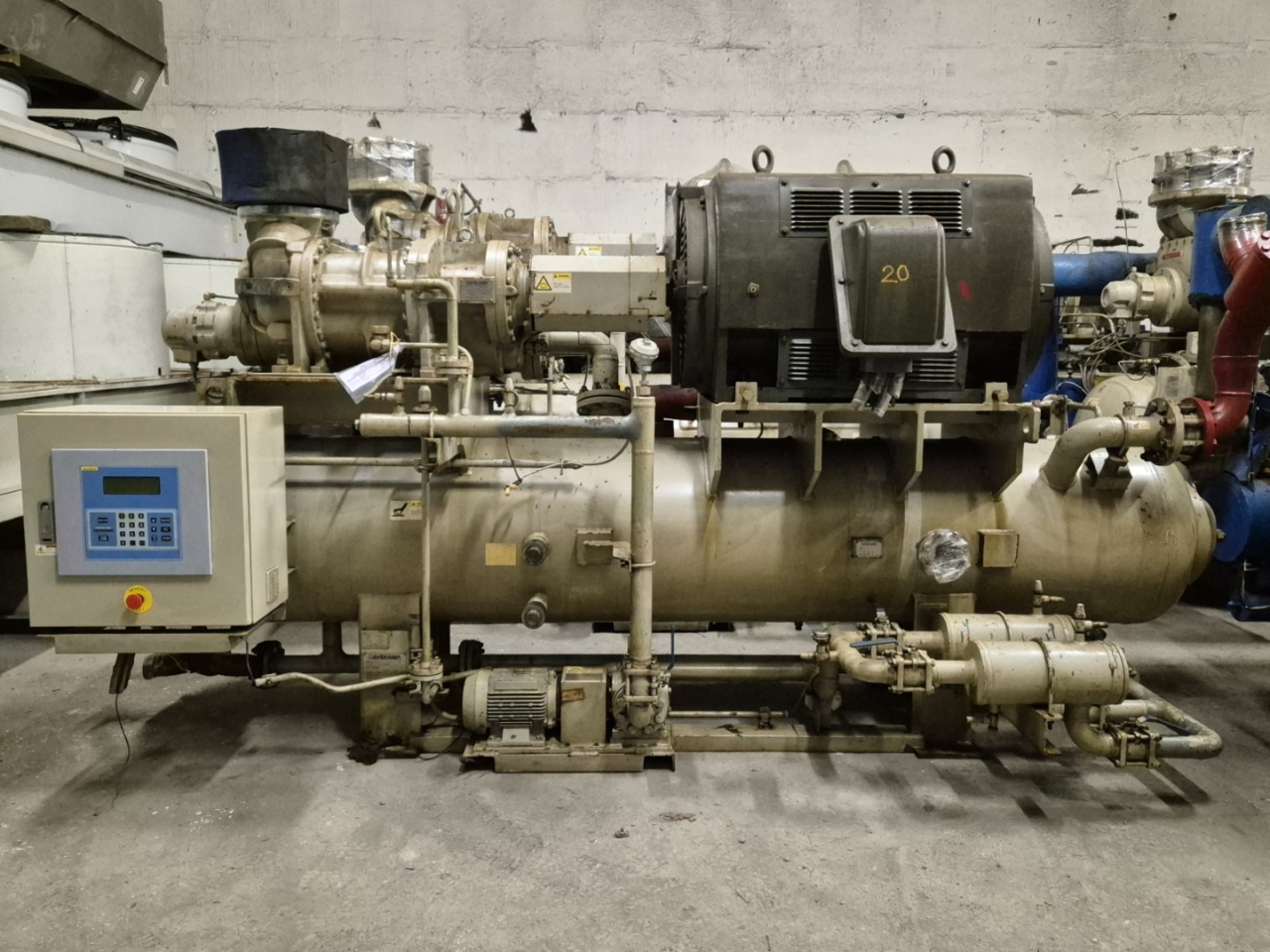

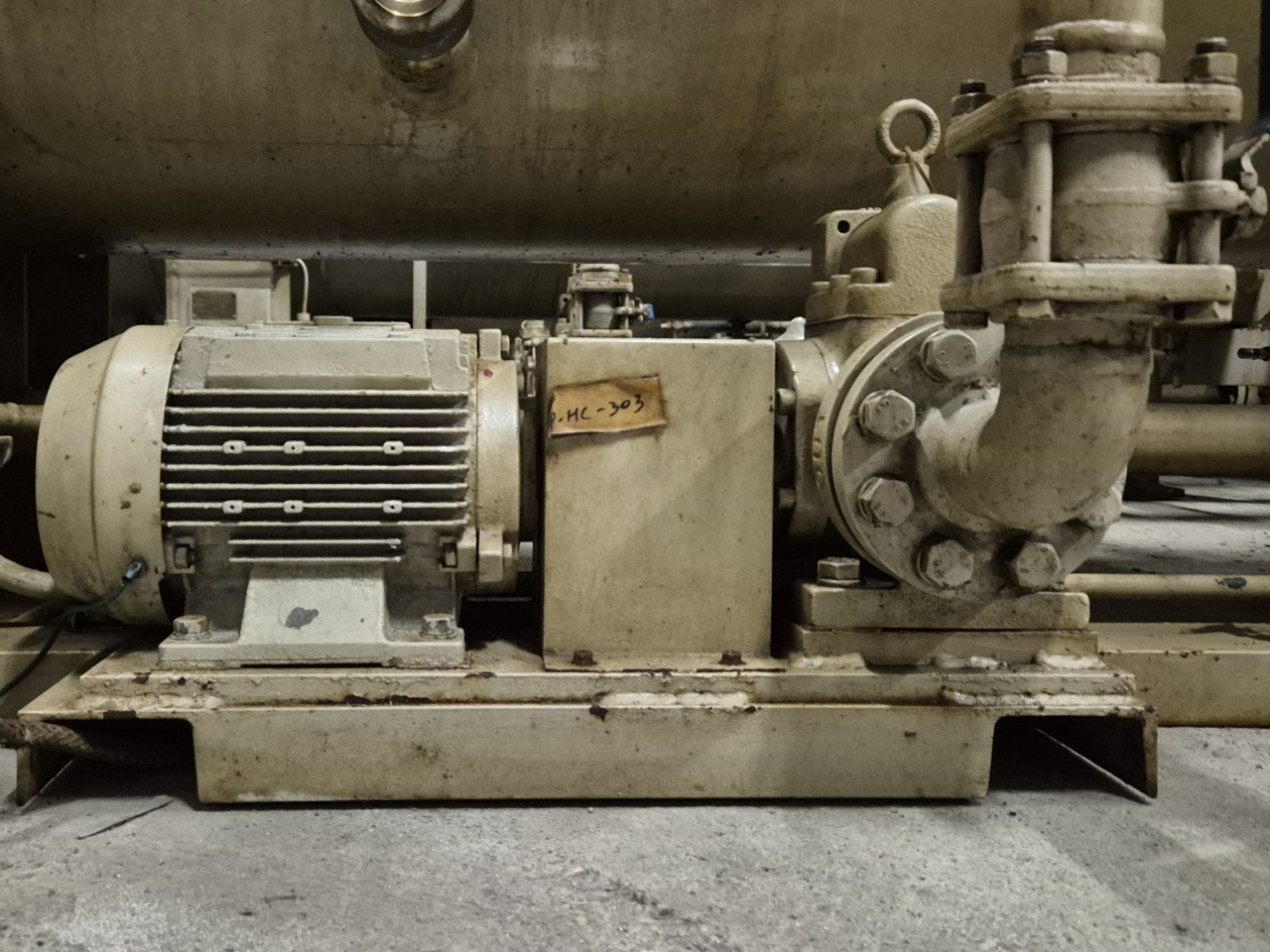

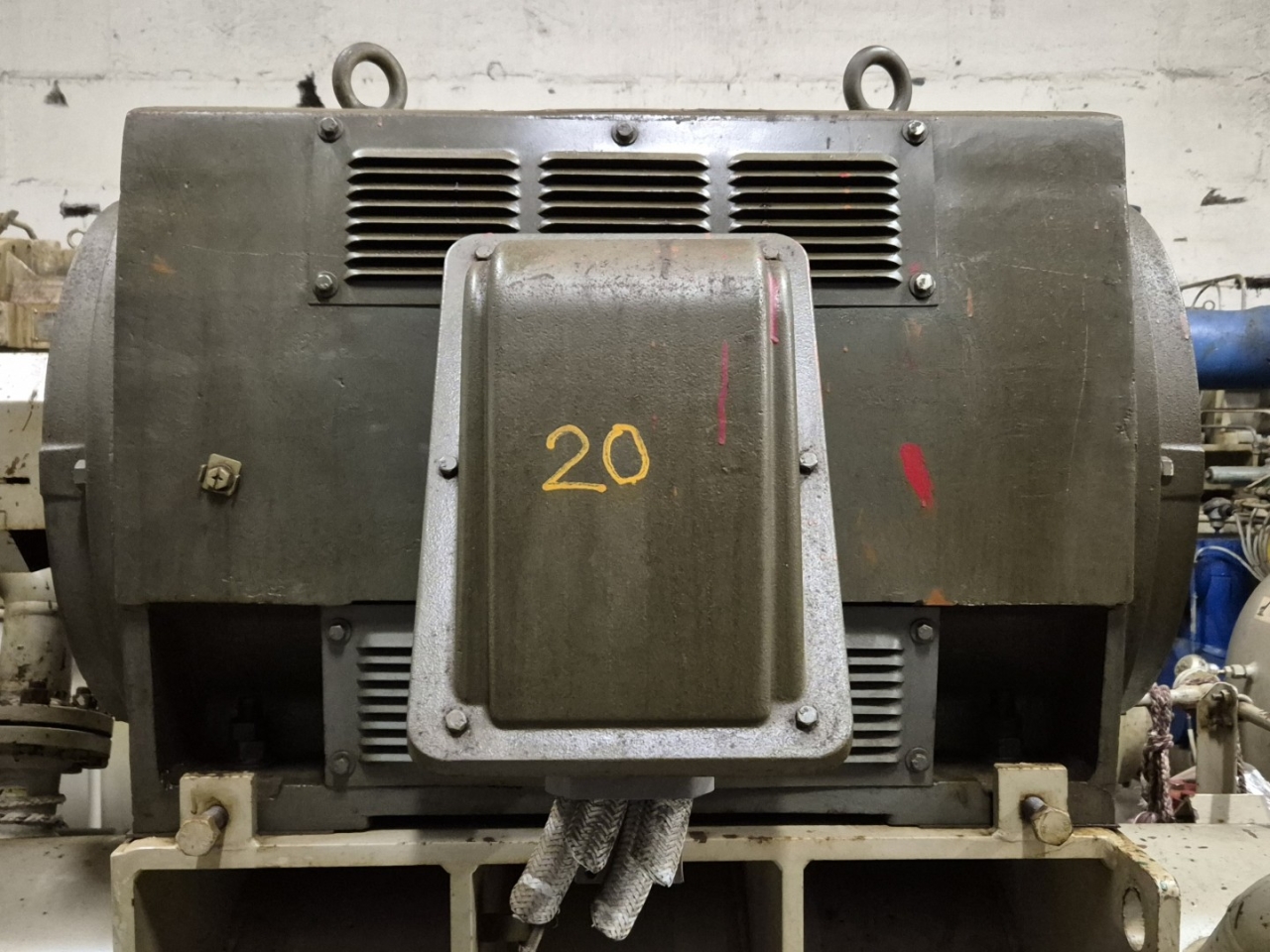

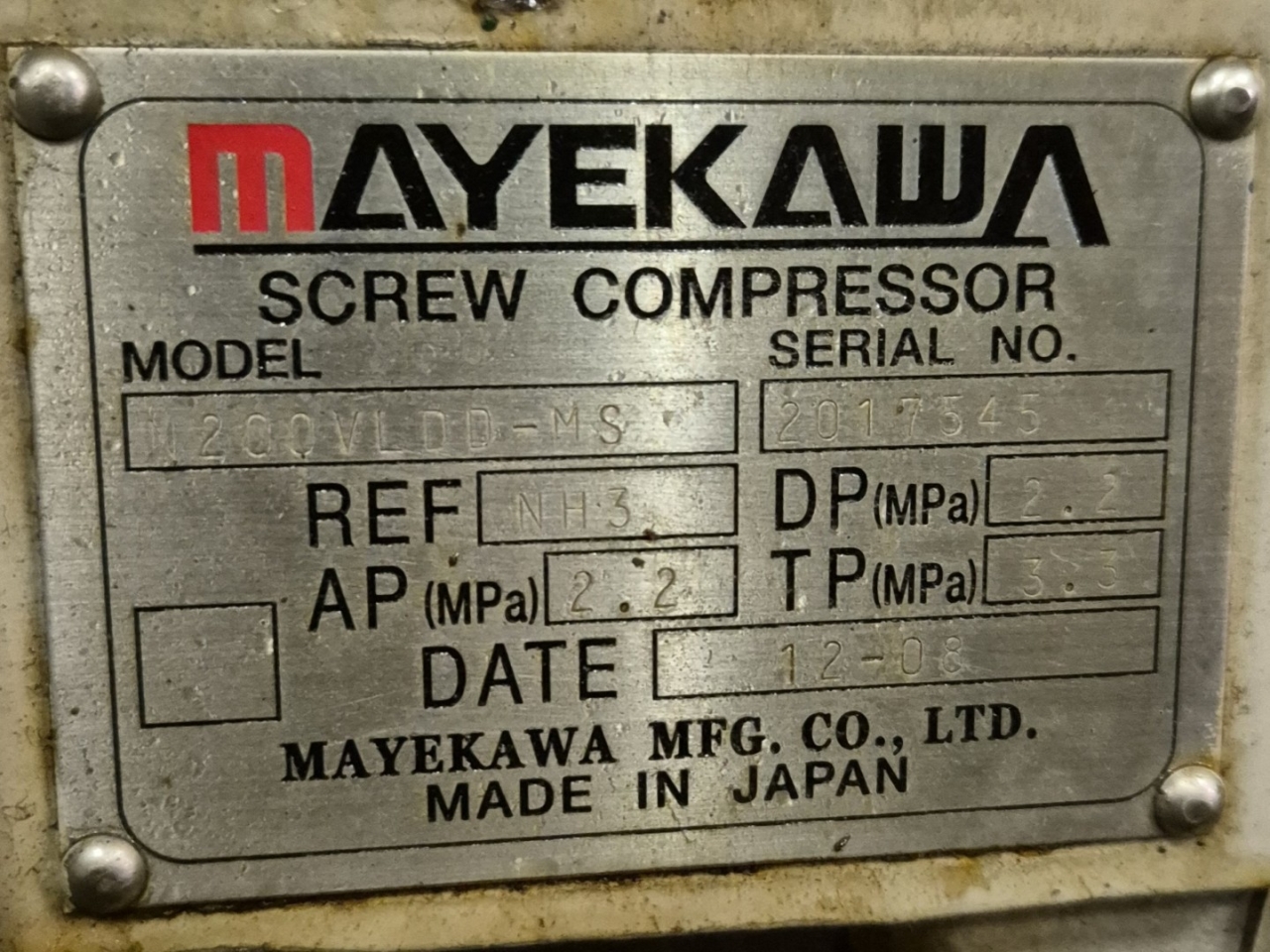

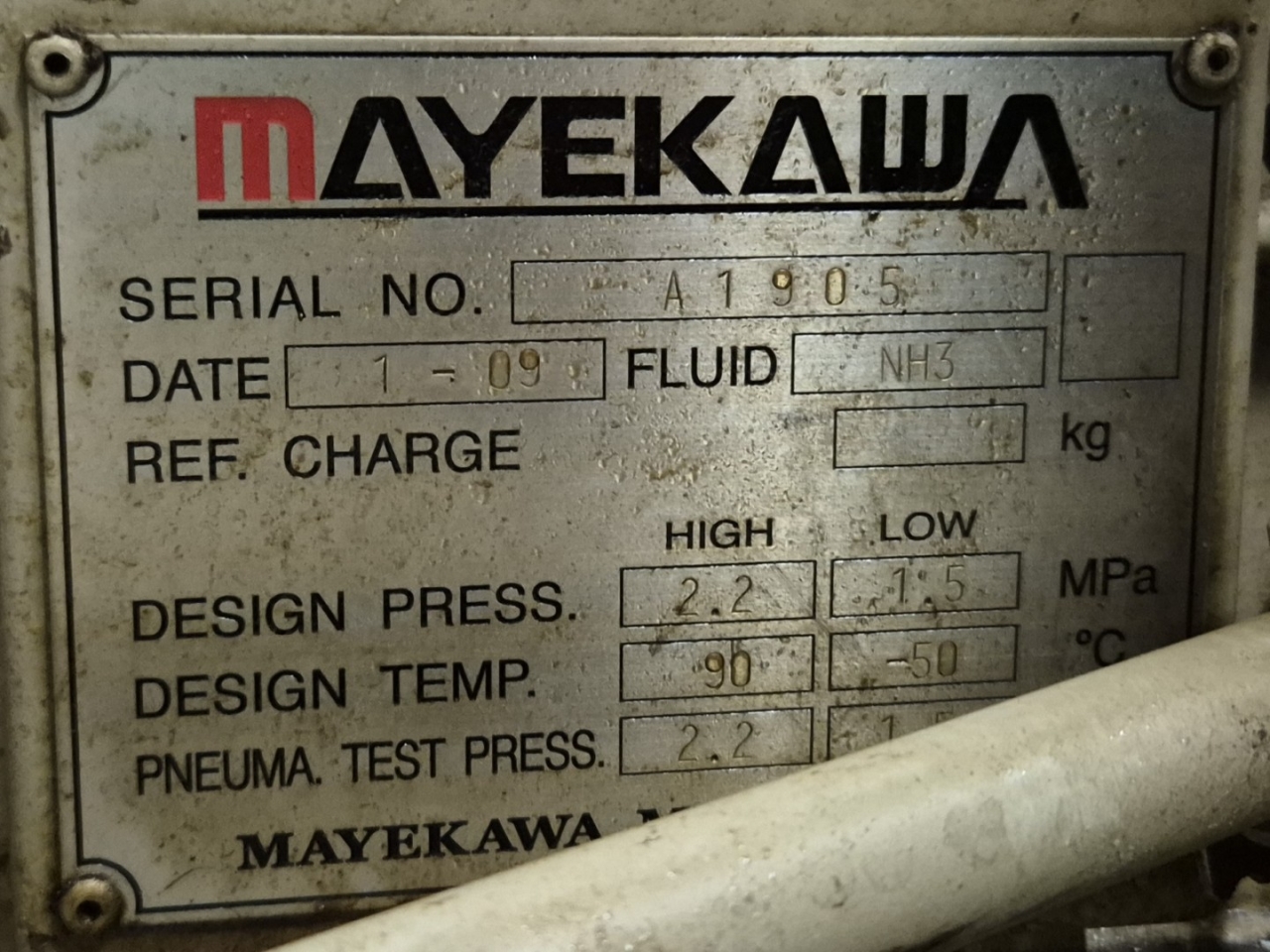

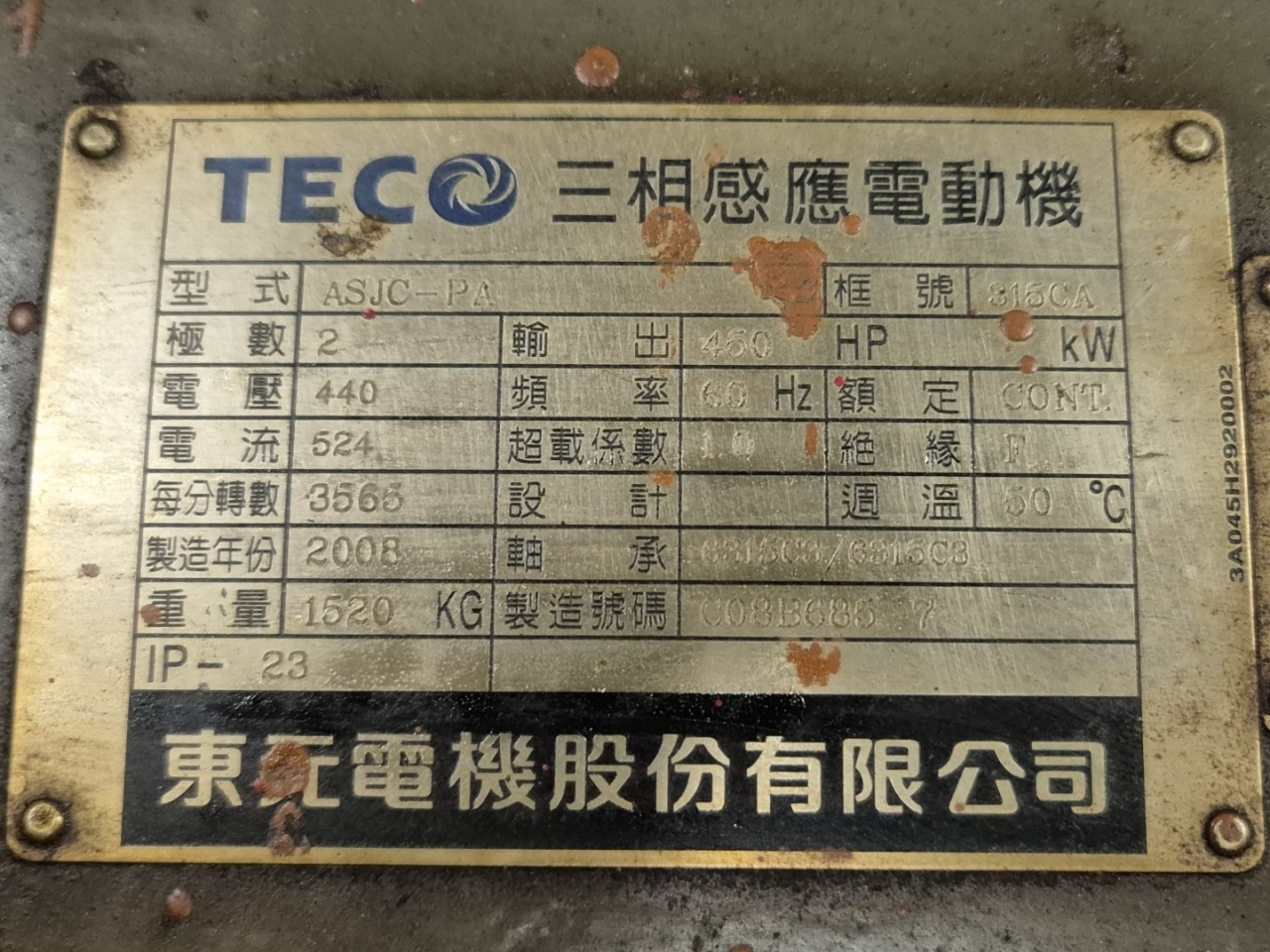

Used Mycom N200VLDD-MS screw compressor skid on NH3 (Ammonia). Complete with a Teco ASJC-PA electric motor - 60 Hz - 355 kW - 3565 RPM, Mayekawa T-A1906 oil separator, Mycom M50P-M oil pump and a Mycom MYPRO-CP3 controller.
*Why choose for HOSBV? Were not only the largest used refrigeration specialist in Europe, but also, we deliver all equipment including an extensive test, warranty and industrial cleaning. *Optional we can also perform a new paint job and arrange the logistics.
