Helpman HTC 076-264
Full specifications for Helpman HTC 076-264
| No. | 18124 |
| Brand | Helpman |
| Type | HTC 076-264 |
| Product type | Drycooler |
| kW | 375,3 |
| Number of Fans | 12 |
| RPM of the Fans | 930 |
| Refrigerant | Glycol |
| Air Flow in m³/h | 187.000 |
| diameter fans Ø | 760 mm |
| Surface (m2) | 2088,6 |
| Sizes | 9500x2050x1150 mm (LxWxH) |
| Weight | +- 2000 kg |
| Remarks | | *More information in the description |
| Amount in stock | 1 |
Description for Helpman HTC 076-264

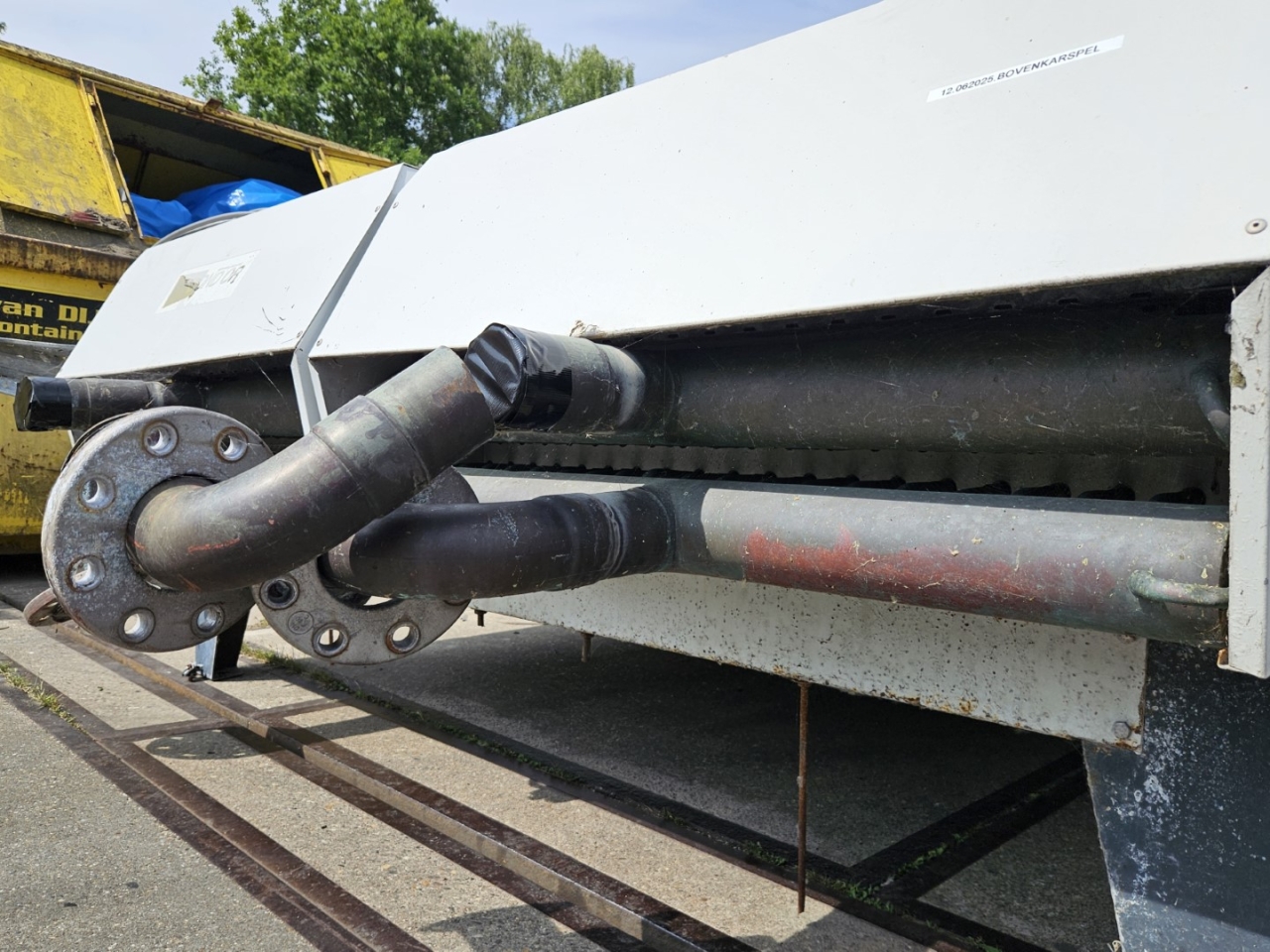

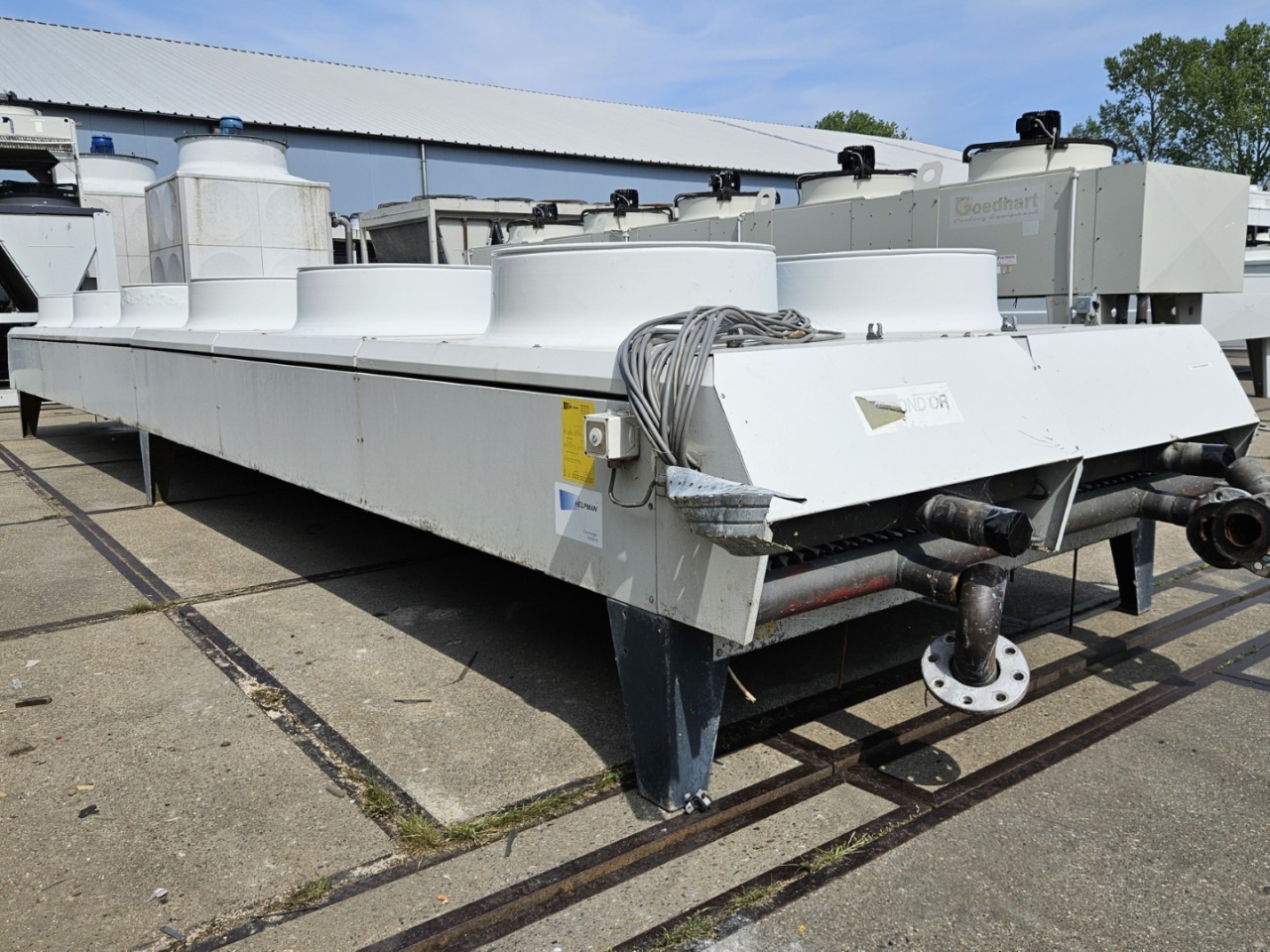

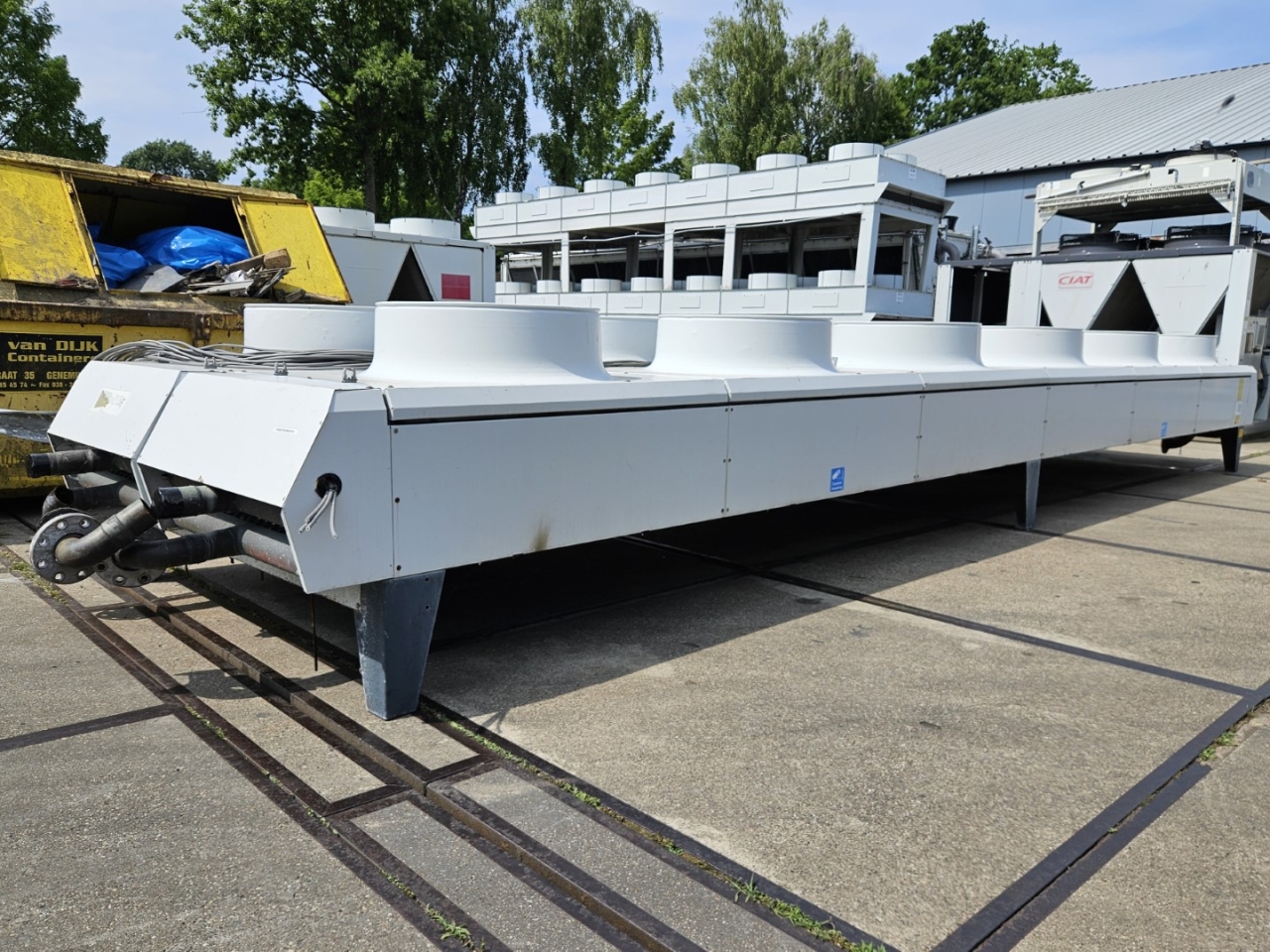

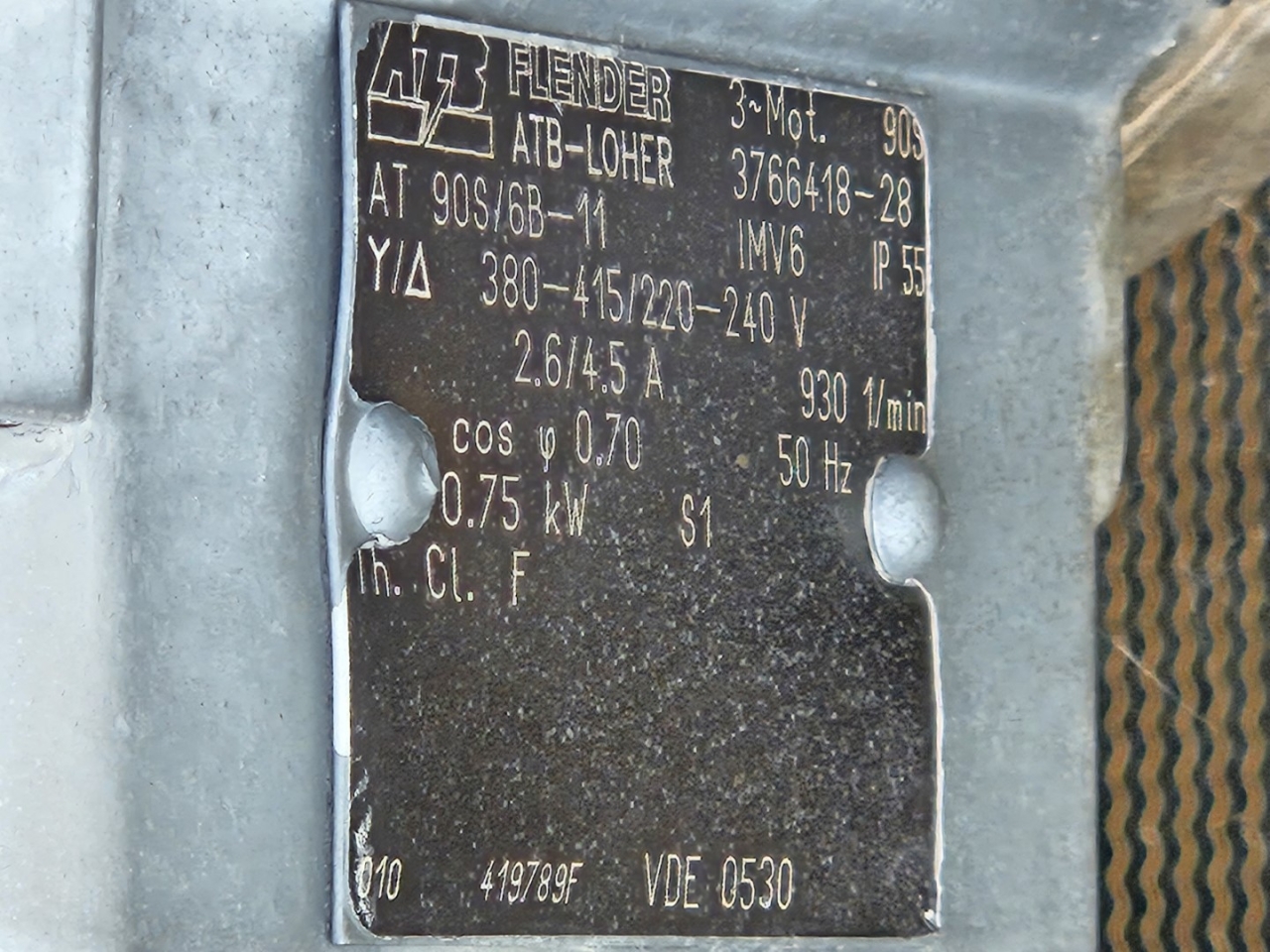

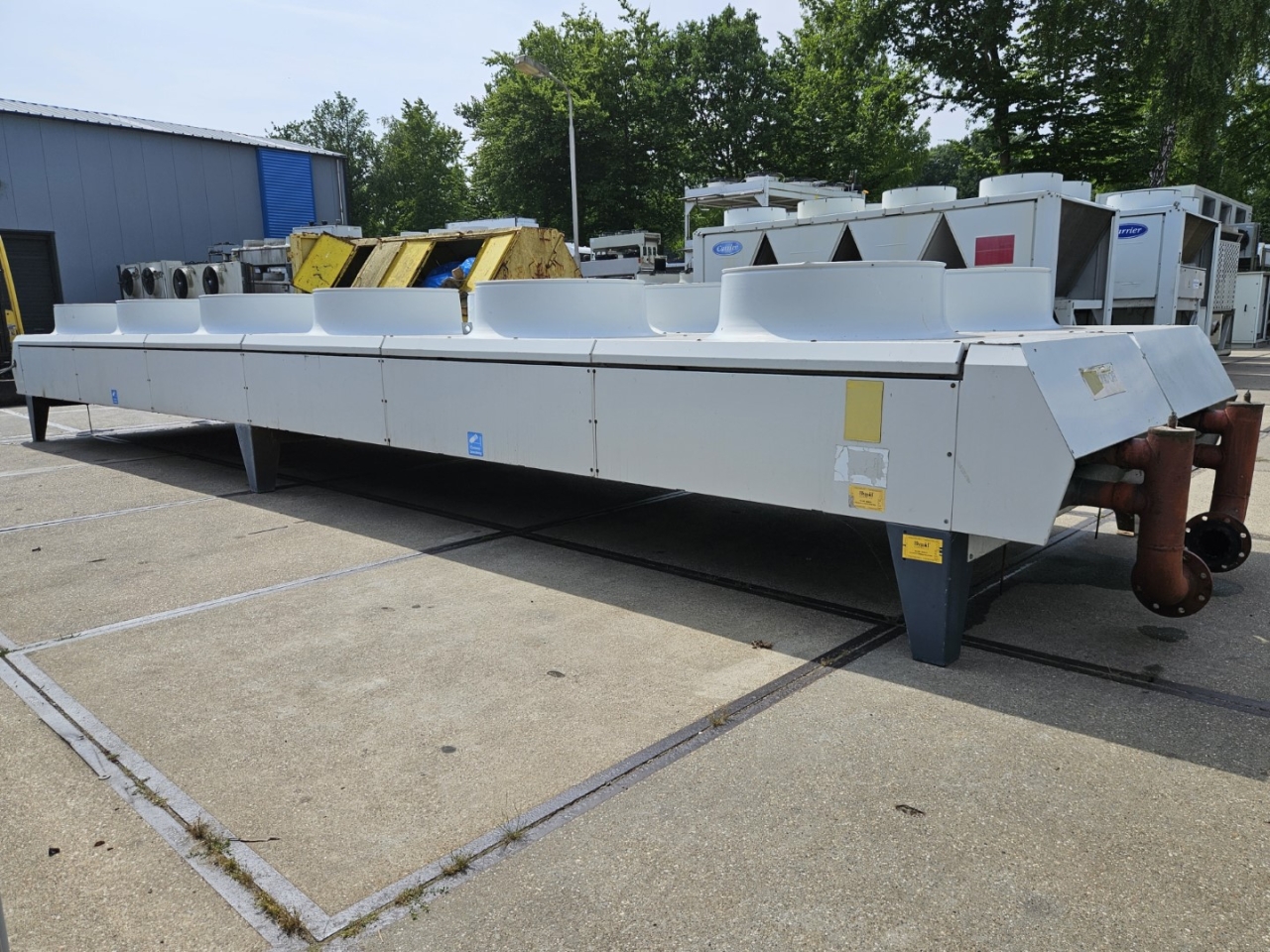

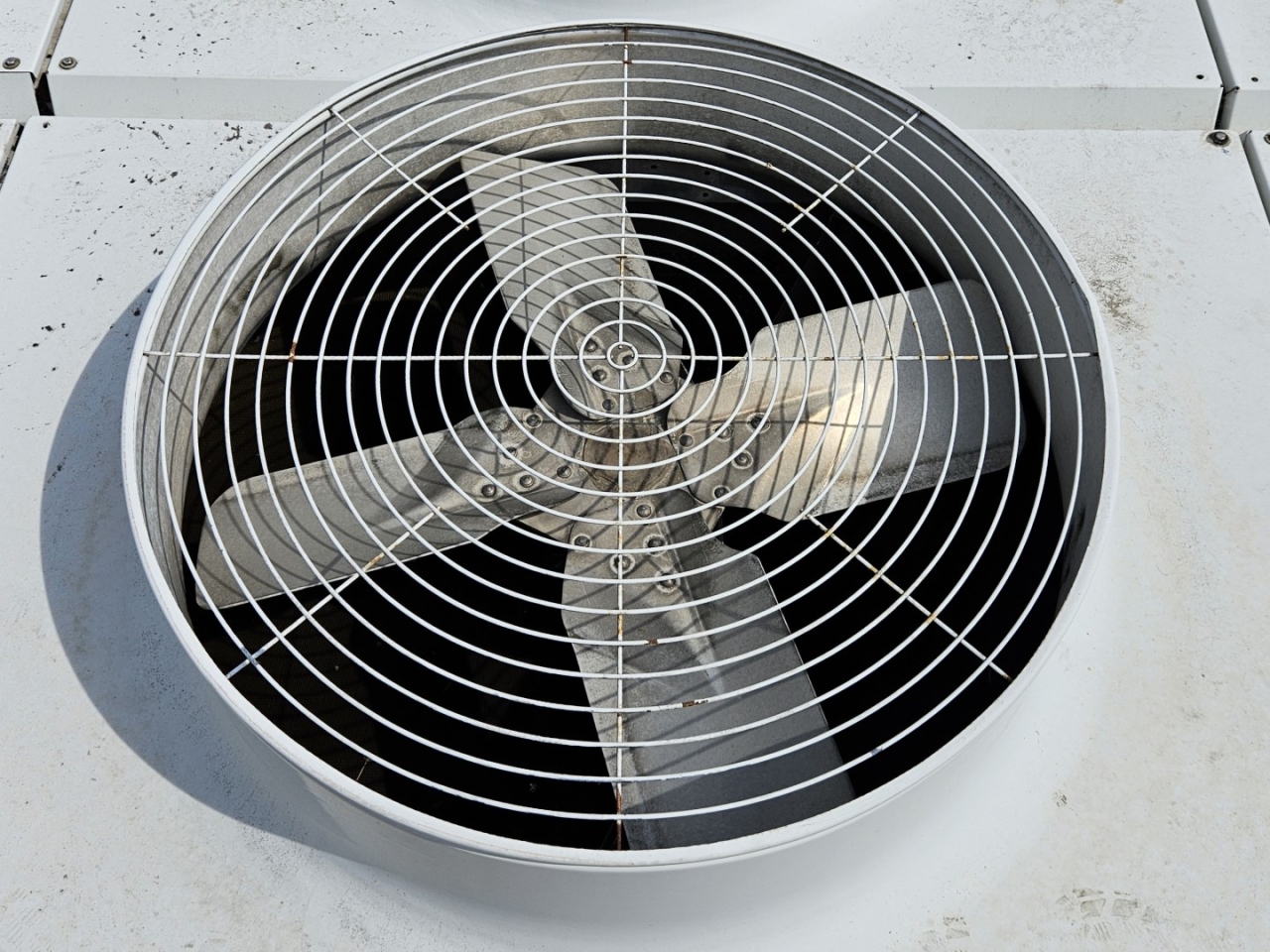

Used Helpman HTC 076-264 drycooler. Complete with 12 ATB AT 90S/6B fans - 50 Hz - 0,75 kW - 930 RPM - diameter 760 mm and a total airflow of 187.000 m³/h.
The drycooler has a capacity of 375,3 kW under the following conditions:
Glycol concentration: 34%.
Medium in/out: +40°C/+35°C.
Air in/out: +25°C/+31°C.
Flow: 70,5 m³/h.
*All components of this used condensor will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning on demand, we can arrange your shipment.
Downloads for Helpman HTC 076-264
| Helpman HTC 076-264 - Product sheet | Download (PDF) |
