Sabroe SMC 112 L
Sabroe SMC 112 L
| 19050 | |
| Brand | Sabroe |
| Type | SMC 112 L |
| Refrigerant | NH 3 (ammonia) |
| kW at +10ºC/+40ºC | 1083,5* |
| kW at 0ºC/+40ºC | 716,6* |
| kW at -5ºC/+40ºC | 570,2* |
| kW at -10ºC/+40ºC | 445,7* |
| Electromotor Specs | 50 Hz - 45 kW - 1480 RPM |
| Unloaded Start |
|
| Capacity Control |
|
| On steel base frame |
|
| Pressure safety switches Hp/Lp/Op |
|
| Pressure gauges Hp/Lp/Op |
|
| Oil separator |
|
| Sight Glass |
|
| Solenoid Valve |
|
| m3 / h | 848 |
| Remarks | | *Capacity based on a bigger electric motor |
| Amount in stock | 1 |
Sabroe SMC 112 L

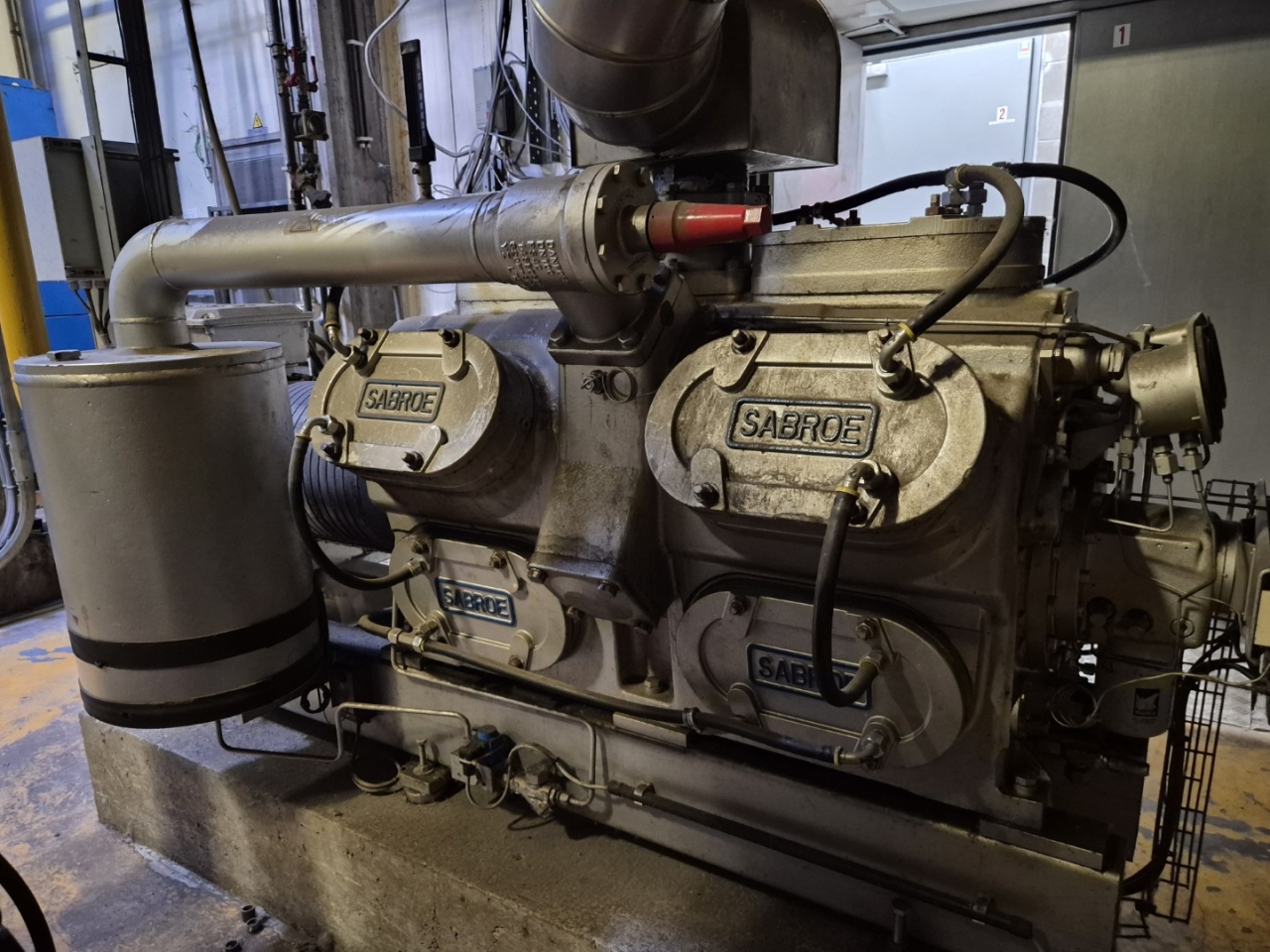

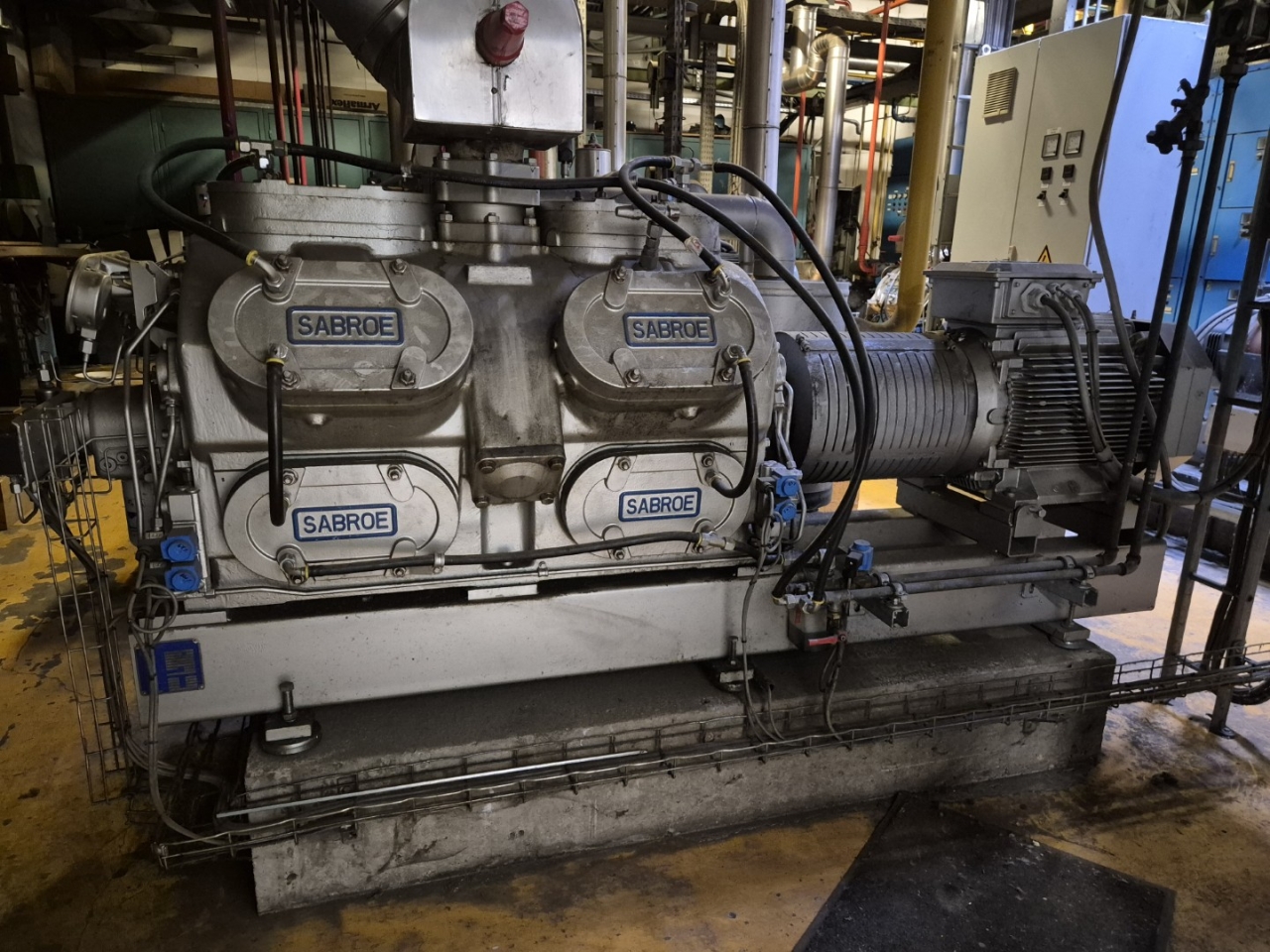

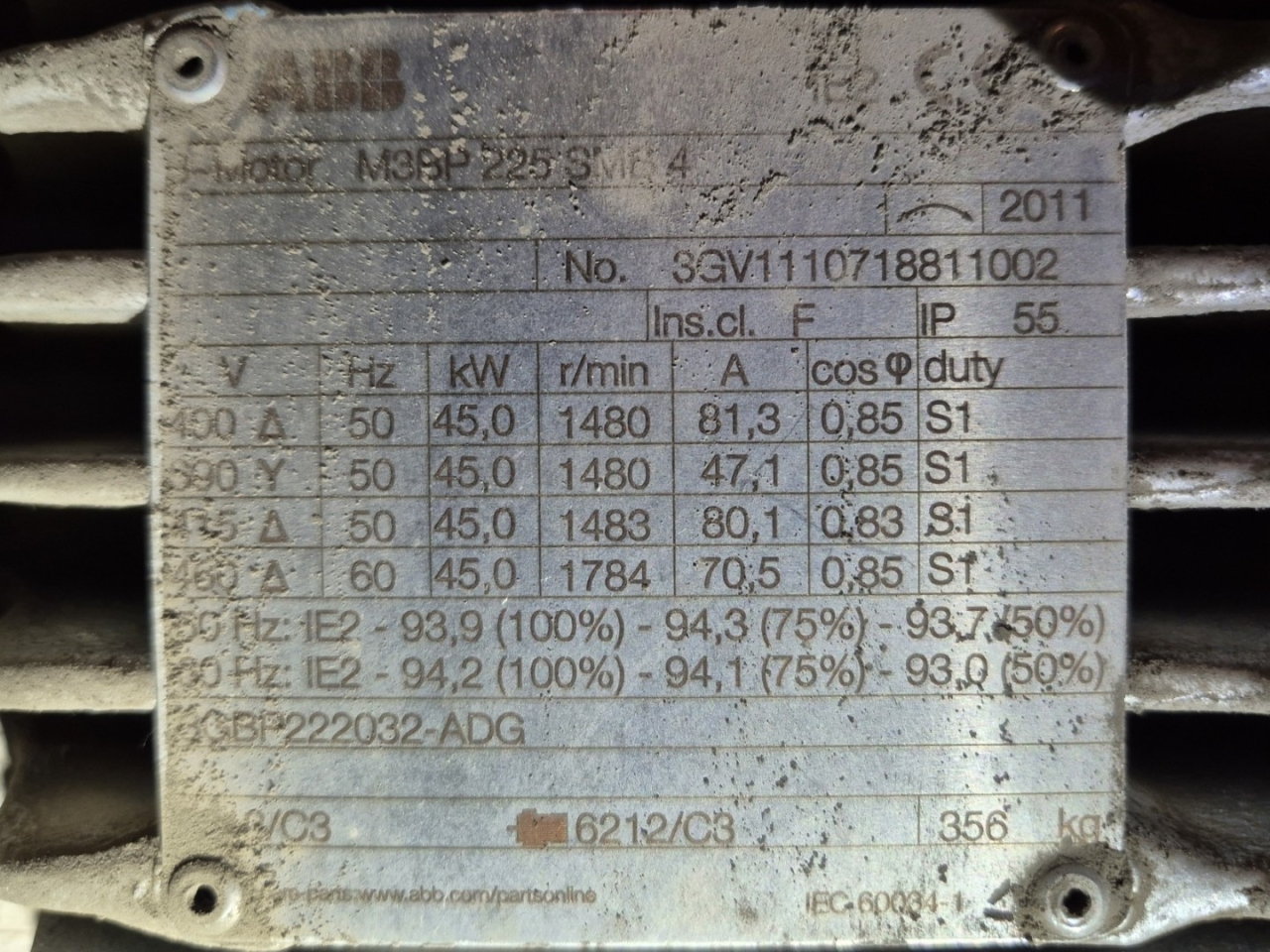

Used Sabroe SMC 112 L reciprocating compressor on R717 (Ammonia). Complete with a ABB M3BP 225 electric motor - 50 Hz - 45 kW - 1480 RPM, oil separator, pressure and safety switches/gauges. The compressor has a displacement of 848 m³/h. *Capacity based on a bigger electric motor.
