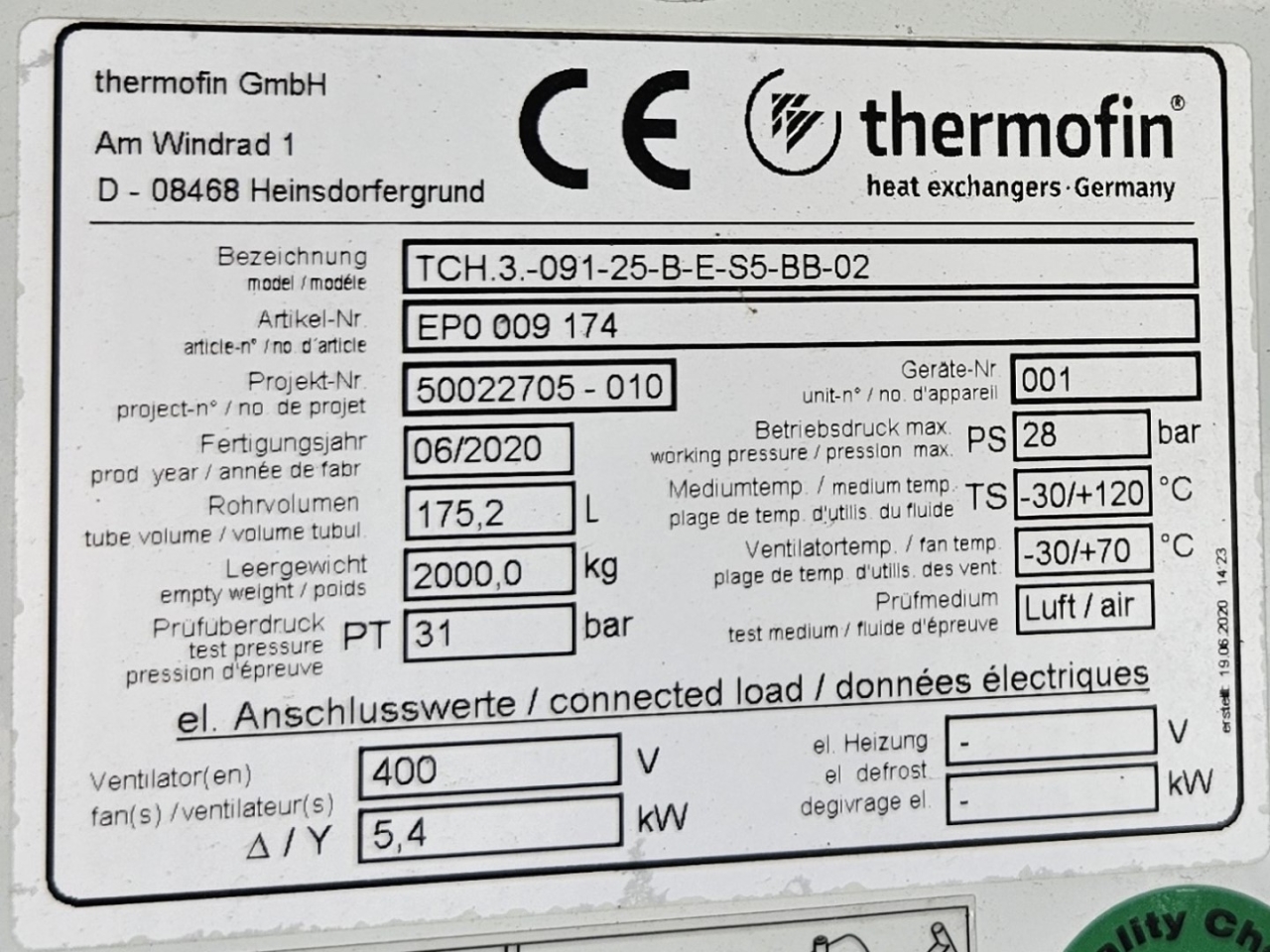

Thermofin TCH.3-091-25-B-E-S5-BB-02
Full specifications for Thermofin TCH.3-091-25-B-E-S5-BB-02
| No. | 18127 |
| Brand | Thermofin |
| Type | TCH.3-091-25-B-E-S5-BB-02 |
| Product type | Air Cooled Condenser |
| kW | 583,0 |
| Number of Fans | 10 |
| RPM of the Fans | 660/500 |
| Refrigerant | Freon |
| Air Flow in m³/h | 147.665 |
| diameter fans Ø | 910 mm |
| Surface (m2) | 1739 |
| Tube volume | 174,2 dm³ |
| Sizes | 9950x2300x1700 mm (LxWxH) |
| Weight | 2000 kg |
| Remarks | | Y.o.b. 2020 |
| Amount in stock | 1 |
Description for Thermofin TCH.3-091-25-B-E-S5-BB-02

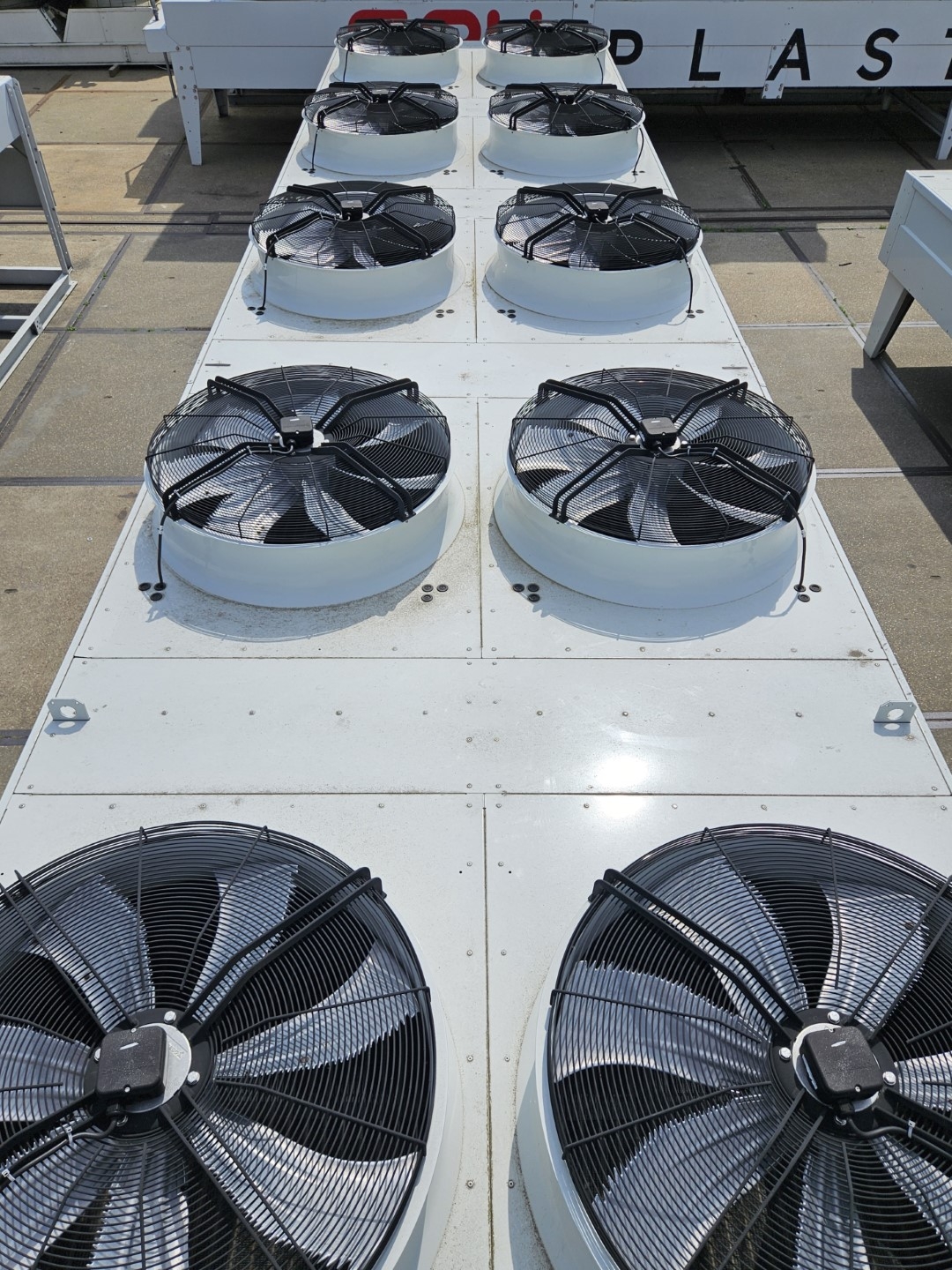

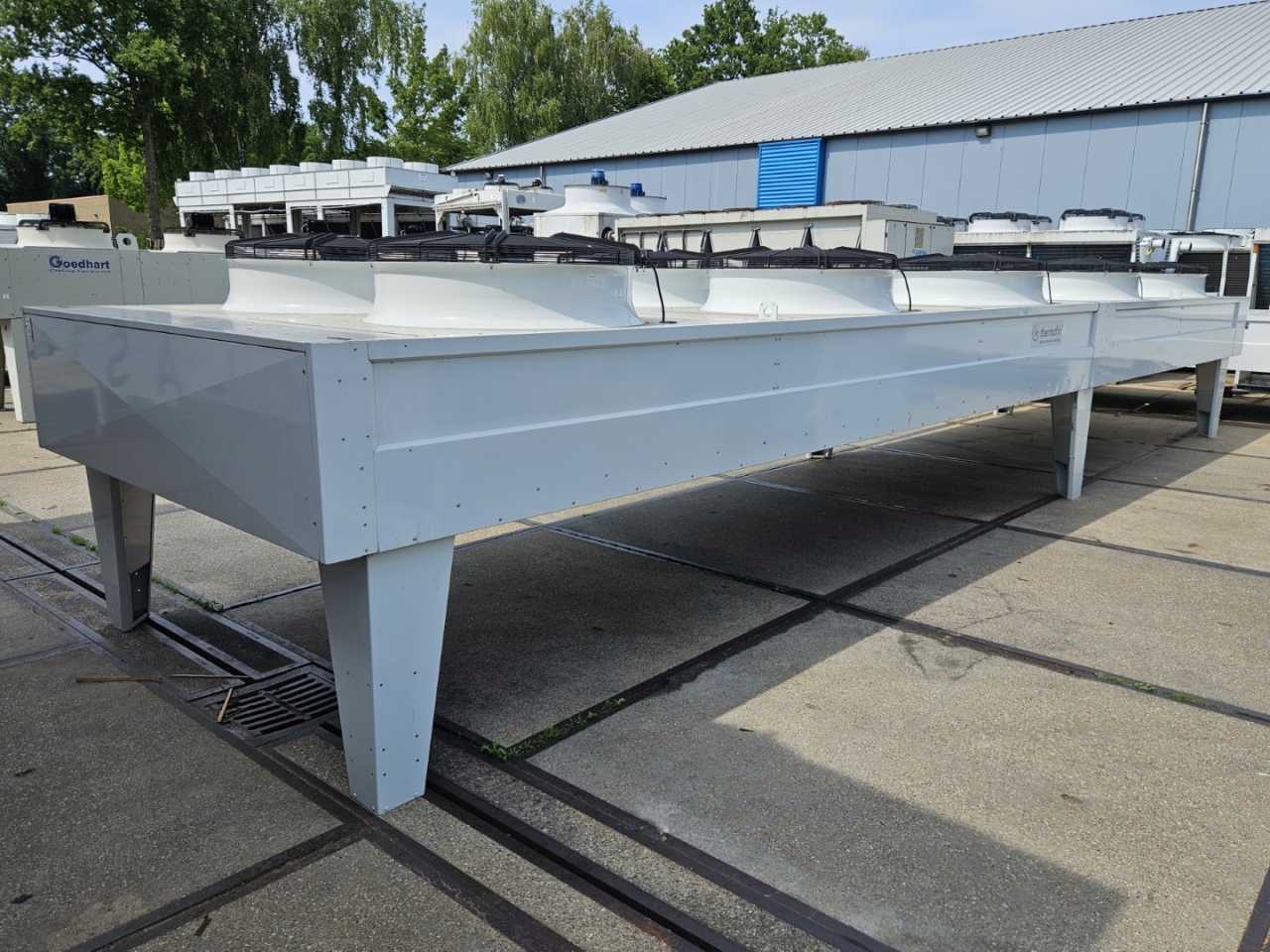

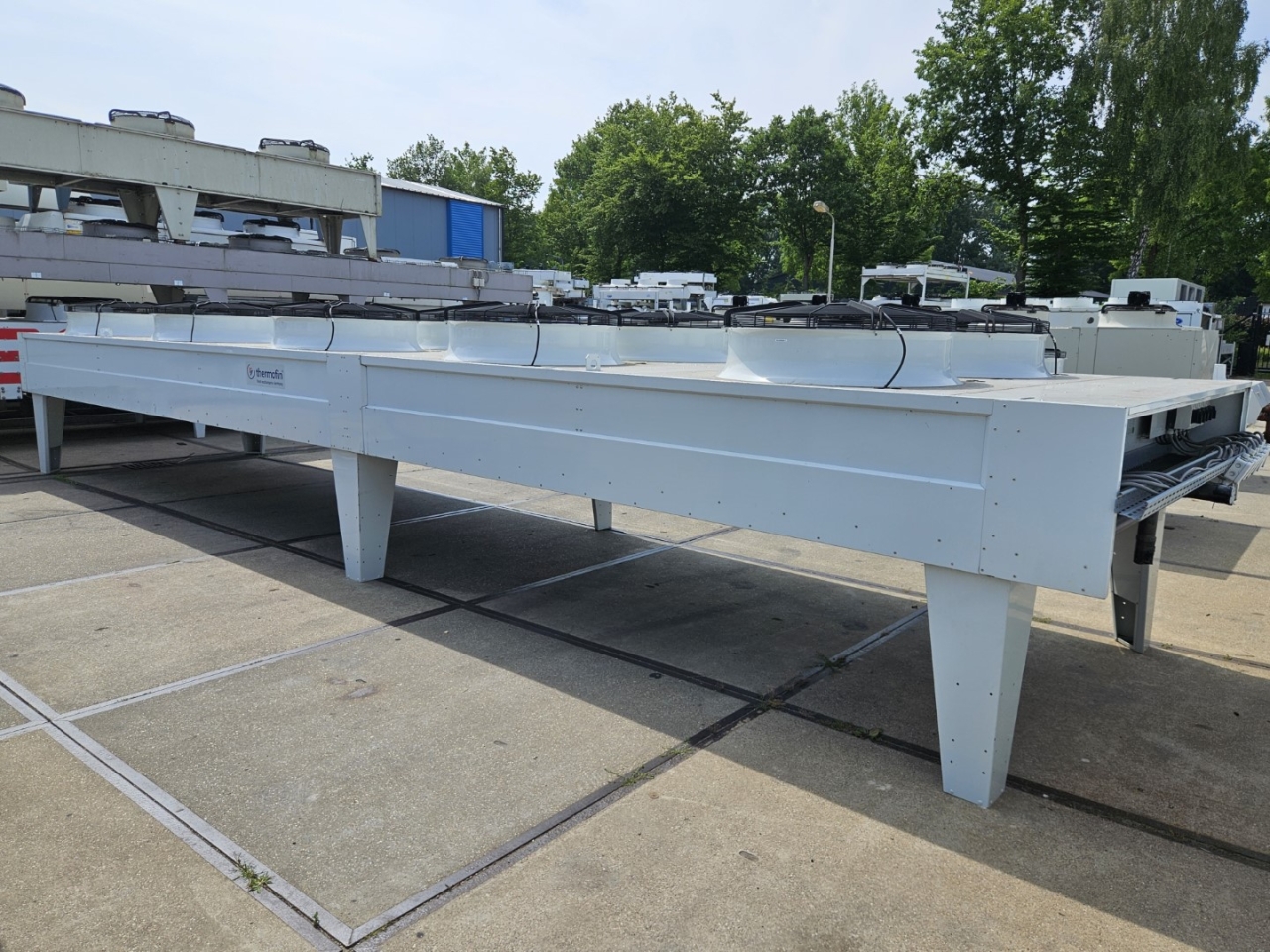

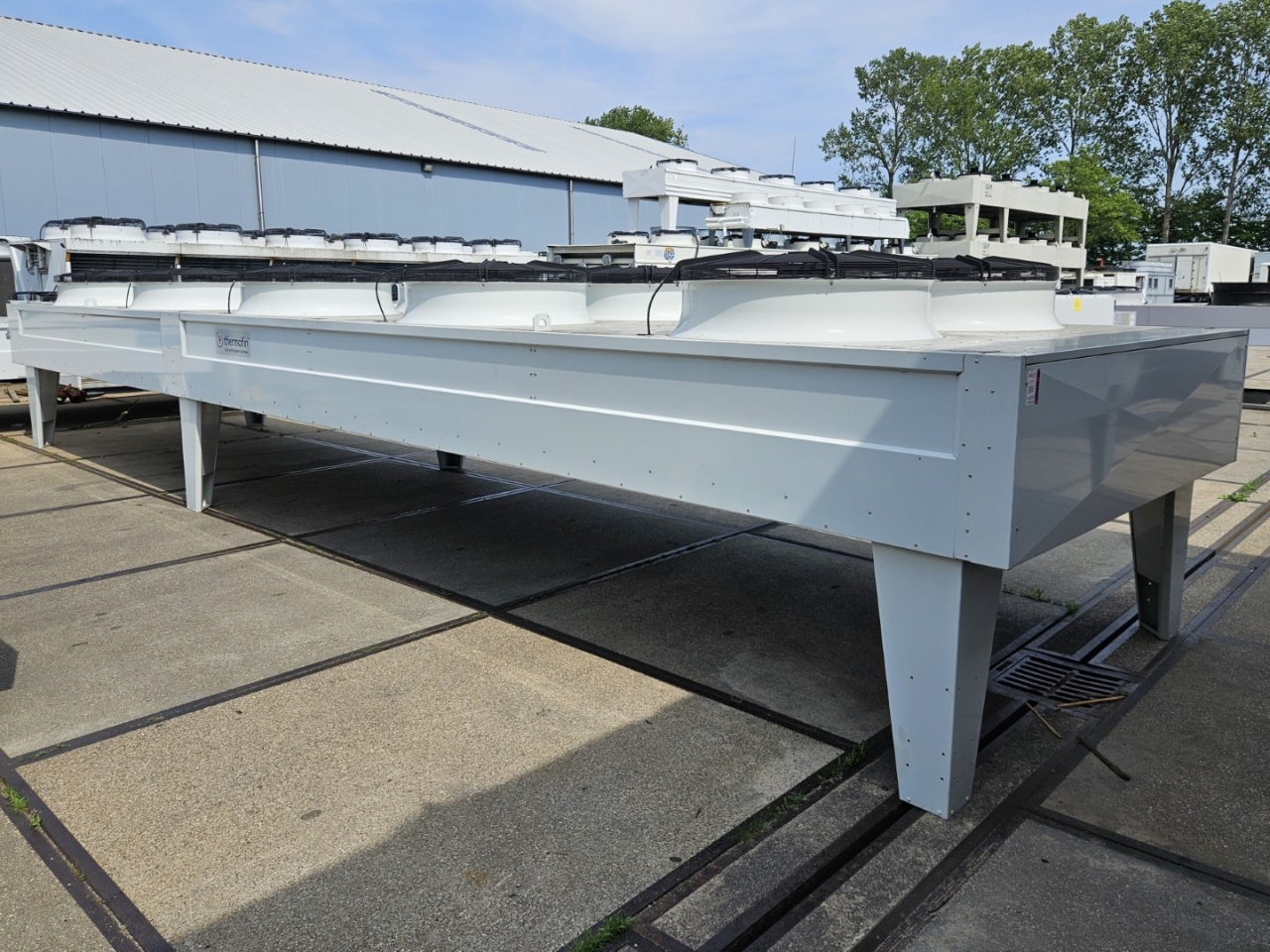

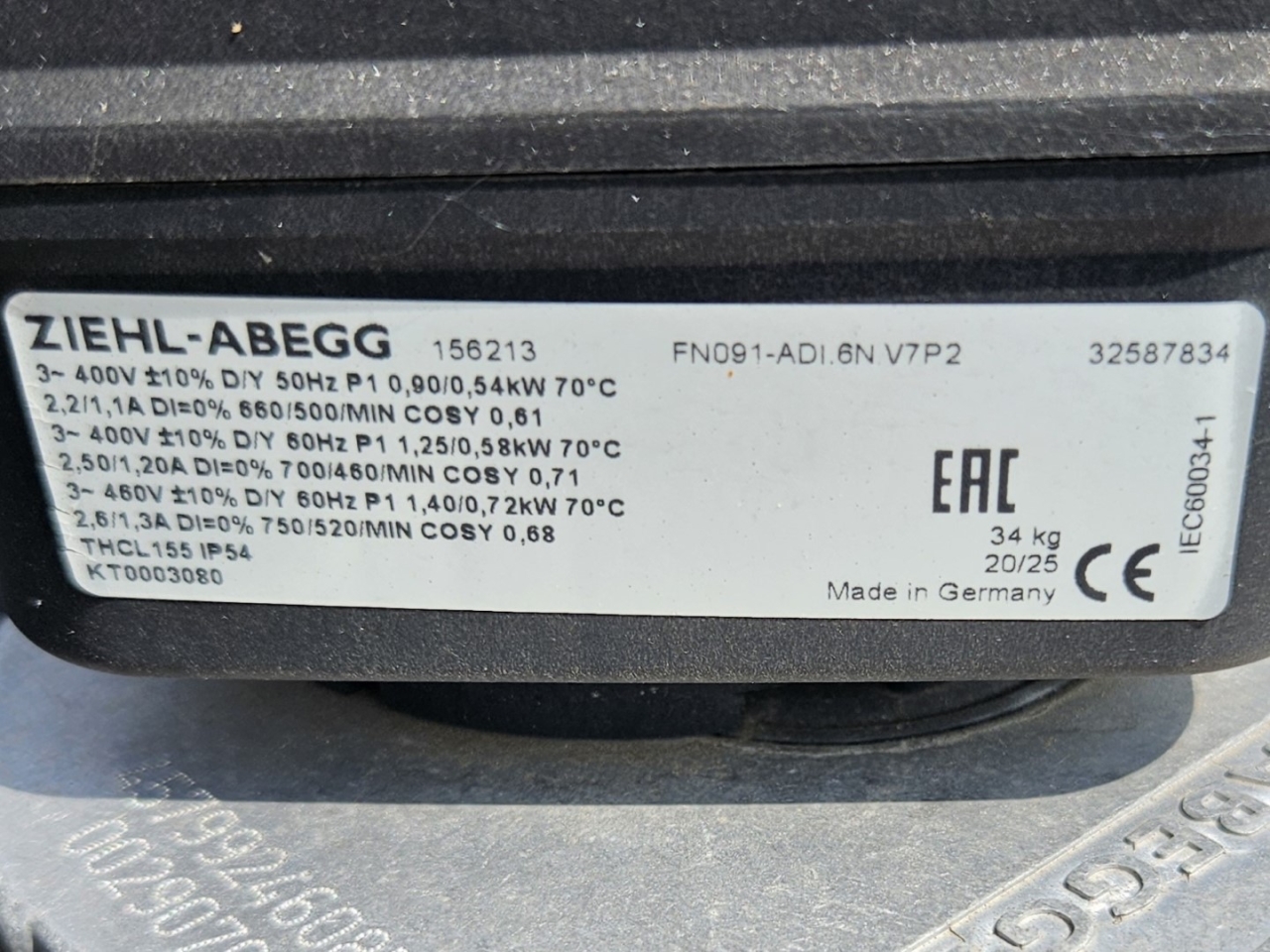

Used Thermofin TCH.3-091-25-B-E-S5-BB-02 air-cooled condenser on Freon built in 2020. Complete with 10 Ziehl-Abegg FN091-ADI-6N-V7P2 fans - 50 Hz - 0,9/0,54 kW - 660/500 RPM - diameter 910 mm and a total airflow of 147.665 m³/h.

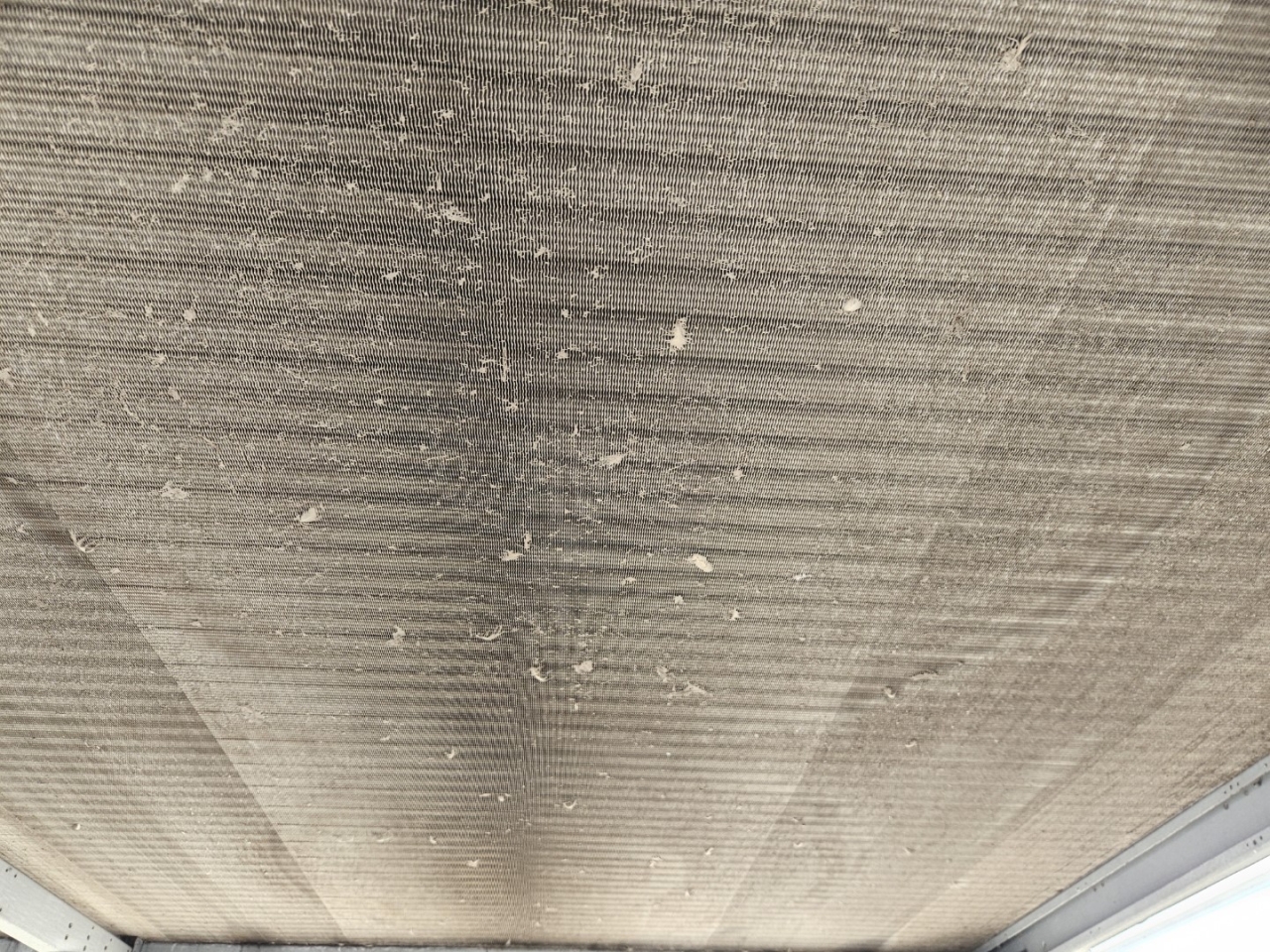

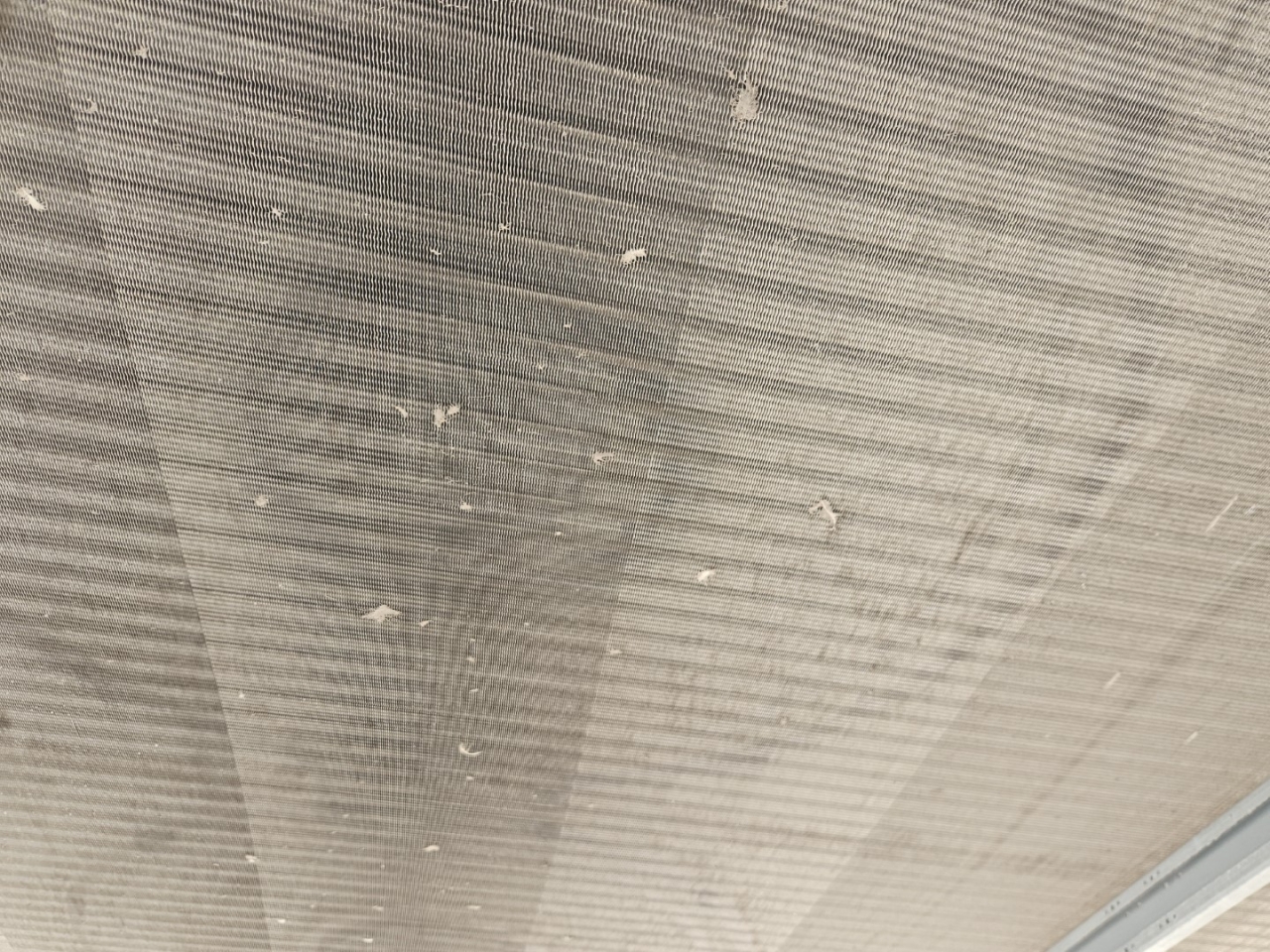

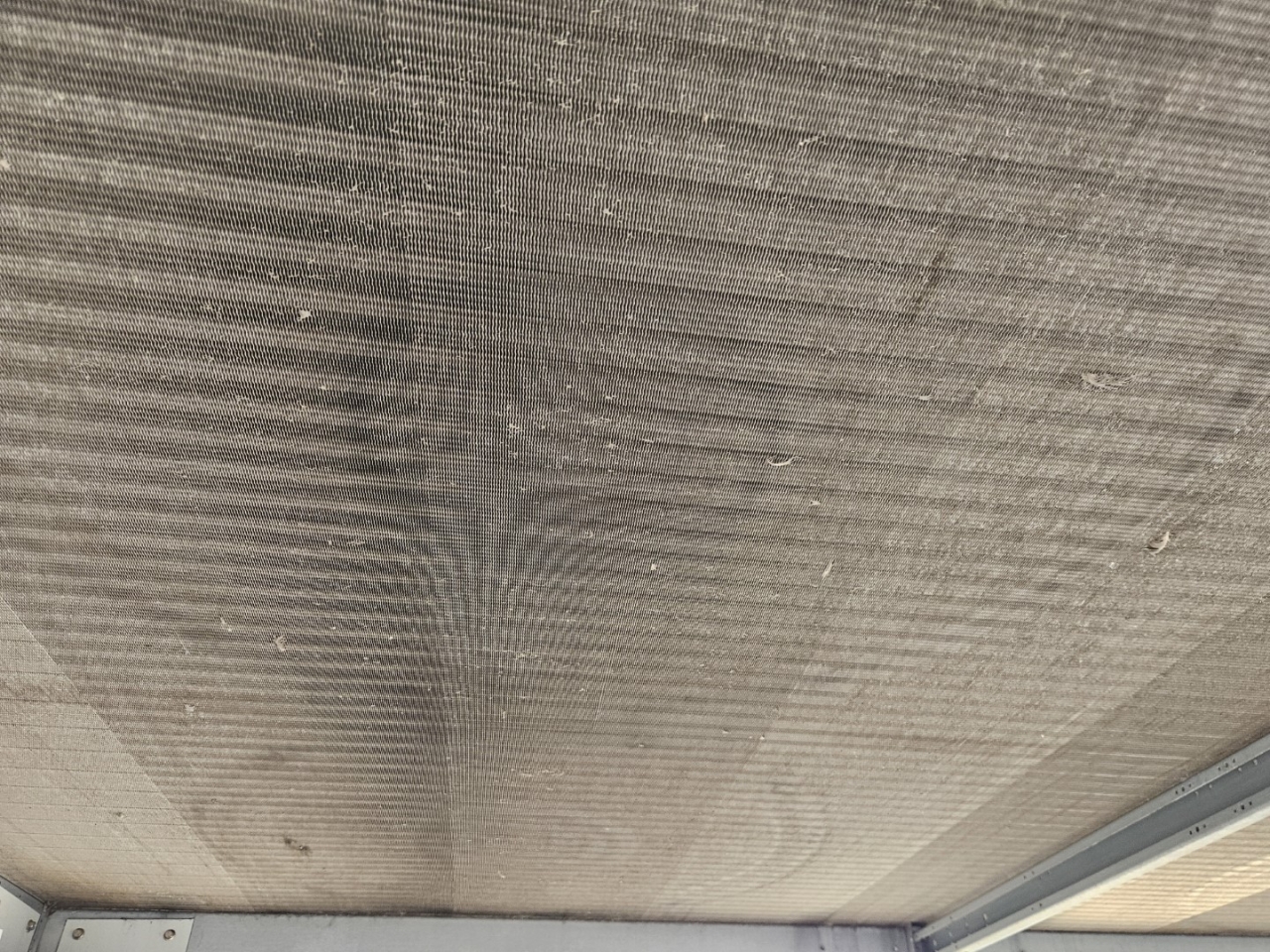

*All components of this used condensor will be tested on adequate functionality, leak free condition (electro engines), condensing block, bearings. Choosing HOSBV means buying with warranty. We perform an industrial cleaning on demand, we can arrange your shipment.
Downloads for Thermofin TCH.3-091-25-B-E-S5-BB-02
| Thermofin TCH.3-091-25-B-E-S5-BB-02 - Product sheet | Download (PDF) |
| Thermofin TCH.3-091-25-B-E-S5-BB-02 - Specifications | Download (PDF) |
